Toyota DYNA — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-E0090i201107-201505

81240BBULB, ROOM LAMP, NO.1

mainSZ98032045i201107-201505

24V 10W

81240DLAMP ASSY, ROOM, NO.2

main81240-37090-B0i201107-201505

ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#

81241LENS, ROOM LAMP, NO.1

mainS812411140i201107-201505

81248COVER, ROOM LAMP, NO.1

main87834-37040-B0i201107-201505

ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#

81290LAMP ASSY, ROOM, NO.3

main81240-E0090i201108-202005

81290BBULB, ROOM LAMP, NO.3

mainSZ98032045i201108-202005

24V 10W

81291LENS, ROOM LAMP, NO.3(FOR REAR)

mainS812411140i201108-202005

9354014016

main93540-14016

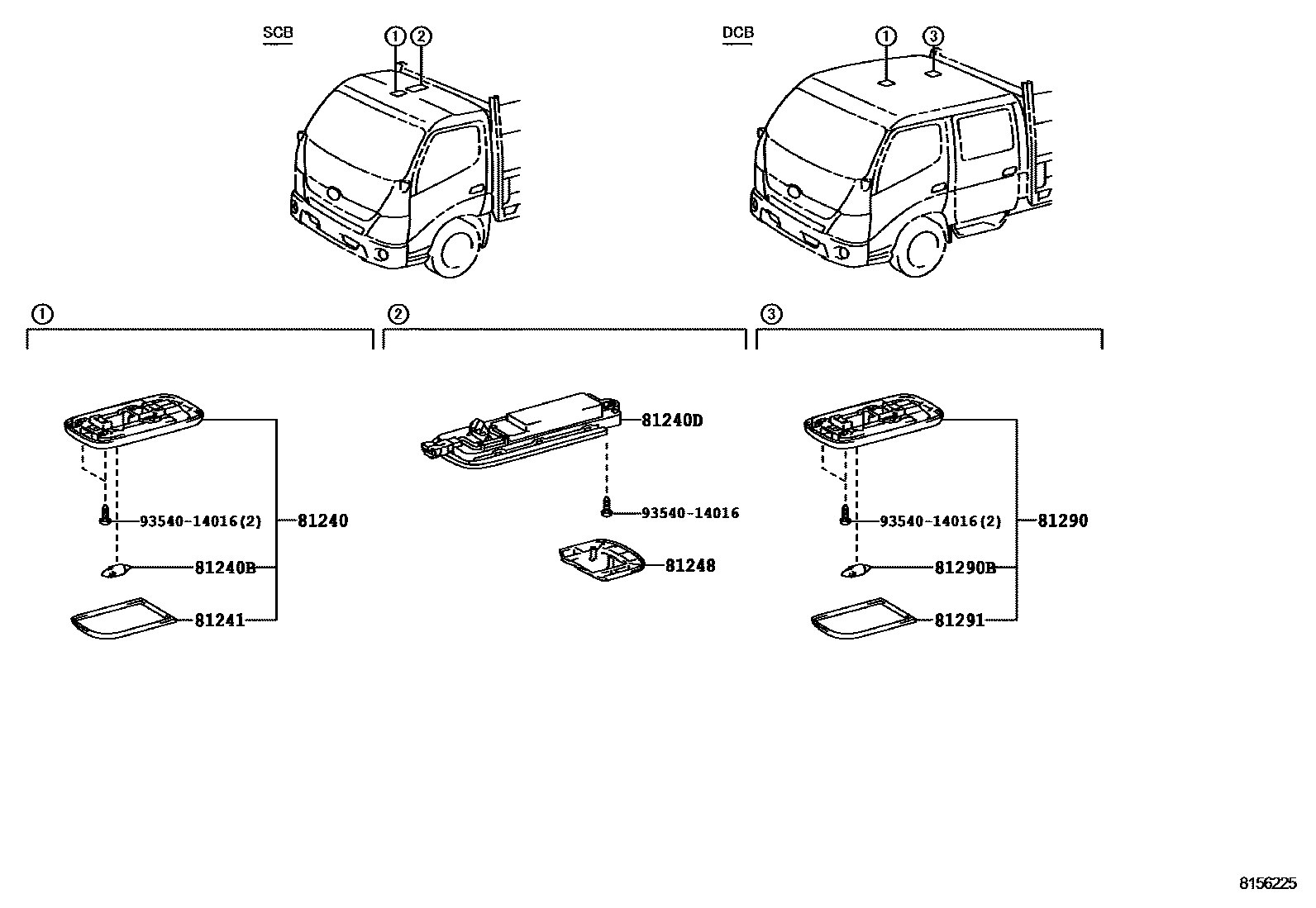

9 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota DYNA

This section contains 9 genuine Toyota parts for the INTERIOR LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, LENS, ROOM LAMP, NO.1, COVER, ROOM LAMP, NO.1.
