Toyota DYNA — INSTRUMENT PANEL & GLOVE COMPARTMENT

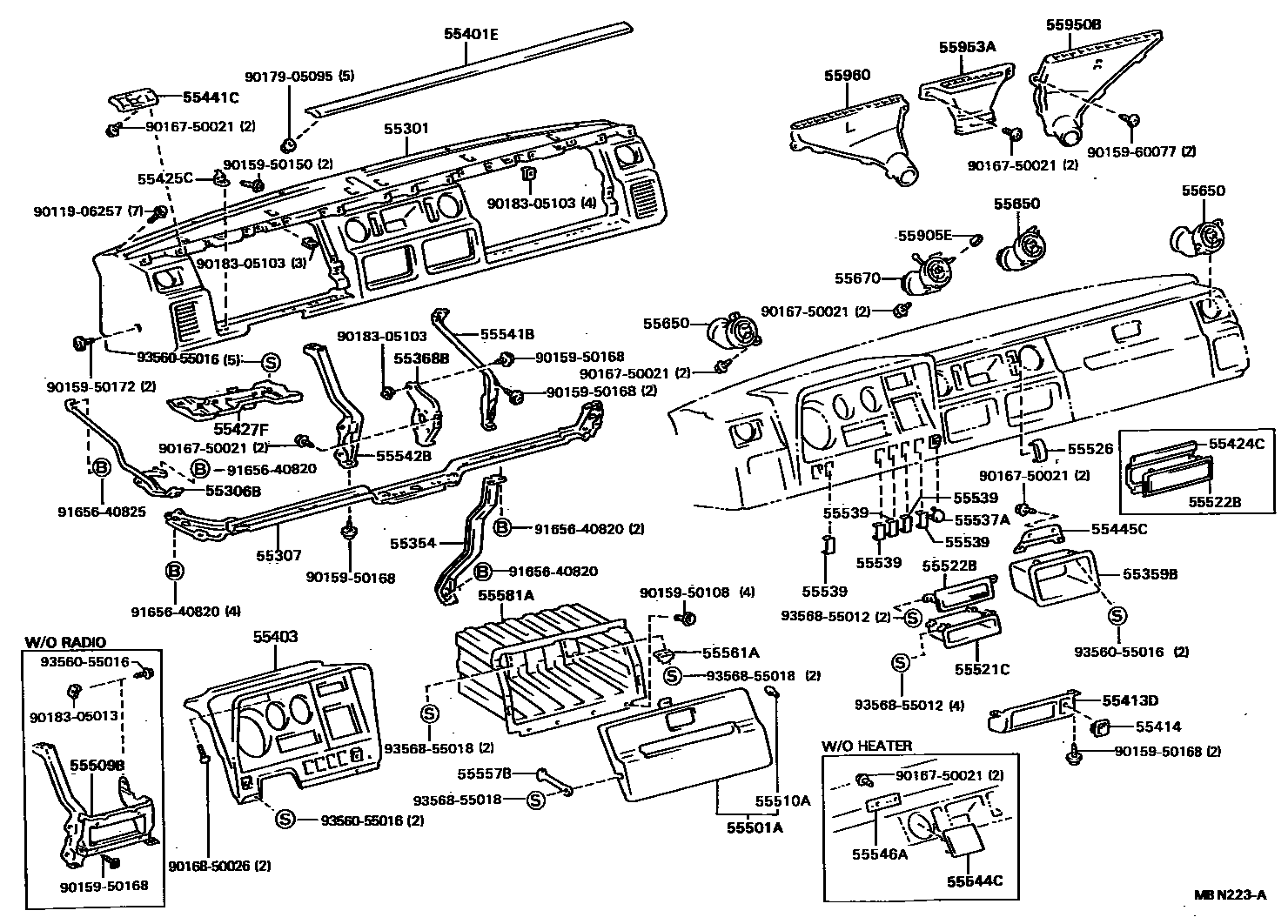

Parts diagram
55301PANEL SUB-ASSY, INSTRUMENT
main55311-95429-06i198708-198808
BROWN,TRIM4#
55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL
main55306-95407i198708-198808
55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
main55307-95406i198708-198808
55354BRACE, INSTRUMENT PANEL TO FLOOR
main55351-95400i198708-198808
55359BBOX, INSTRUMENT PANEL, CENTER
main55359-95404-01i198708-198808
BLACK,TRIM4#
55368BBRACKET, RADIO TUNER MOUNTING, LH
main55368-95400i198708-198808
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-95415-06i198708-198808
BROWN,TRIM4#
55403HOOD SUB-ASSY, METER
main55403-95B24-06i198708-198808
BROWN,TRIM4#
main55403-95B25-06i198708-198808
W/O (HEATER),BROWN,BROWN,TRIM4#
main55403-95B29-06i198708-198808
W(ANALOGUE CLOCK),BROWN,TRIM4#
main55403-95B30-06i198708-198808
W/O (HEATER) & W(ANALOGUE CLOCK),BROWN,BROWN,TRIM4#
main55403-95B31-06i198708-198808
W(TACHOGRAPH),BROWN,TRIM4#
55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
main55413-95404-06i198708-198808
BROWN,TRIM4#
55414BEZEL, CIGAR LIGHTER HOLE
main55414-95403i198708-198808
55424CPANEL, RADIO TUNER FINISH
main55424-95010-01i198708-198808
BLACK,TRIM4#
55425CBRACKET, METER HOOD SET, NO.1
main55425-95404×2i198708-198808
55427FBRACKET, METER HOOD SET, NO.3
main55427-95402i198708-198808
55441CBOX, INSTRUMENT PANEL COIN
main55441-95418-06i198708-198808
BROWN,TRIM4#
55445CPLATE, INSTRUMENT PANEL BOX
main55445-95403i198708-198808
55501ADOOR SUB-ASSY, GLOVE COMPARTMENT
main55501-95412-06i198708-198808
BROWN,TRIM4#
55509BRETAINER SUB-ASSY, RADIO TUNER COVER
main55509-95400i198708-198808
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
main90541-03015i198708-198808
OD=7
main90541-05080×2i198708-198808
OD=10
55521CCOVER, STEREO OPENING
main55521-14050-01i198708-198808
BLACK,TRIM4#
55522BCOVER, RADIO TUNER OPENING
main55522-14070i198708-198808
main55522-20040i198708-198808
W/O (RADIO)
55526COVER, INSTRUMENT PANEL REGISTER OPENING
main55526-95400-06i198708-198808
BROWN,TRIM4#
55537ACOVER, THROTTLE KNOB HOLE
main55537-95010-16i198708-198808
BROWN,TRIM4#
55539COVER, SPARE SWITCH HOLE
main55539-95400-06i198708-198808
BROWN(TRIM4),28X18,BROWN
main55539-95J00-06×3i198708-198808
BROWN(TRIM4),42.6X24.6,BROWN
55541BRETAINER, RADIO TUNER OPENING, NO.1
main55541-95408i198708-198808
55542BRETAINER, RADIO TUNER OPENING, NO.2
main55542-95407i198708-198808
55544CCOVER, CENTER REGISTER OPENING
main55544-95412-06×2i198708-198808
BROWN,TRIM4#
55546APLATE, CENTER REGISTER COVER
main55546-95400×2i198708-198808
55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK
main55557-95400-01×2i198708-198808
BLACK,TRIM4#
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
main55561-95401-01i198708-198808
BLACK,TRIM4#
55581ACOMPARTMENT, GLOVE
main55581-95400-01i198708-198808
BLACK,TRIM4#
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-95400-01×2i198708-198808
SIDE,BLACK,BLACK,TRIM4#
main55650-95401-01i198708-198808
BLACK,TRIM4#,CENTER
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-95402-01i198708-198808
BLACK,TRIM4#
55905EKNOB SUB-ASSY, CONTROL
main55905-12050-01i198708-198808
BLACK,TRIM4#
55950BNOZZLE ASSY, DEFROSTER, RH
main55950-95010i198708-198808
55953AREGISTER, DEFROSTER, CENTER
main55953-95410i198708-198808
55960NOZZLE ASSY, DEFLOSTER, LH
main55960-95010i198708-198808
9011906257
main90119-06257
9015950108
main90159-50108
9015950150
main90159-50150
9015950168
main90159-50168
9015950172
main90159-50172
9015960077
main90159-60077
9016750021
main90167-50021
9016850026
main90168-50026
9017905095
main90179-05095
9018305013
main90183-05013
9018305103
main90183-05103
9165640820
main91656-40820
9165640825
main91656-40825
9356055016
main93560-55016
9356855012
main93568-55012
9356855018
main93568-55018

52 parts on this diagram · 1 diagram in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota DYNA

This section contains 52 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota DYNA. Key components include: PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER, BRACE, INSTRUMENT PANEL TO FLOOR, BOX, INSTRUMENT PANEL, CENTER.
