Toyota DYNA — HEADLAMP
81011HEADLAMP SUB-ASSY, NO.1
W(HEADLAMP=HALOGEN *SSB)
*SSB,WHITE
*SSB,HALOGEN,YELLOW
81012HEADLAMP SUB-ASSY, NO.2
W(HEADLAMP=HALOGEN *SSB)
*SSB,WHITE
*SSB,HALOGEN,YELLOW
81013HEADLAMP SUB-ASSY, TYPE 1, LH
W(HEADLAMP=HALOGEN *SSB)
*SSB,WHITE
*SSB,HALOGEN,YELLOW
81014HEADLAMP SUB-ASSY, TYPE 2, LH
W(HEADLAMP=HALOGEN *SSB)
*SSB,WHITE
*SSB,HALOGEN,YELLOW
81110BBULB(FOR HEADLAMP, NO.1)
24V 55/50W,WHITE
24V 70W,*HAL *WH; 24V 70W,*HAL *WH,24V 70W,*HAL
81110DBULB(FOR HEADLAMP, NO.2)
24V 55/50W,WHITE
24V 75/70W,*HAL *WH
24V 75/70W,*HAL *YE
81110SSEALED BEAM UNIT, NO.1
24V 55/50W,*WSB
24V 70W,*HWS
24V 70W,*HYS
81110TSEALED BEAM UNIT, NO.2
24V 55/50W,*WSB
24V 75/70W,*HWS
24V 75/70W,*HYS
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81114RING, SEALED BEAM MOUNTING, NO.2 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
81154RING, SEALED BEAM MOUNTING, NO.2 LH
8113114870SCREW, HEADLAMP ADJUSTING
main81131-14870
9018905005
main90189-05005

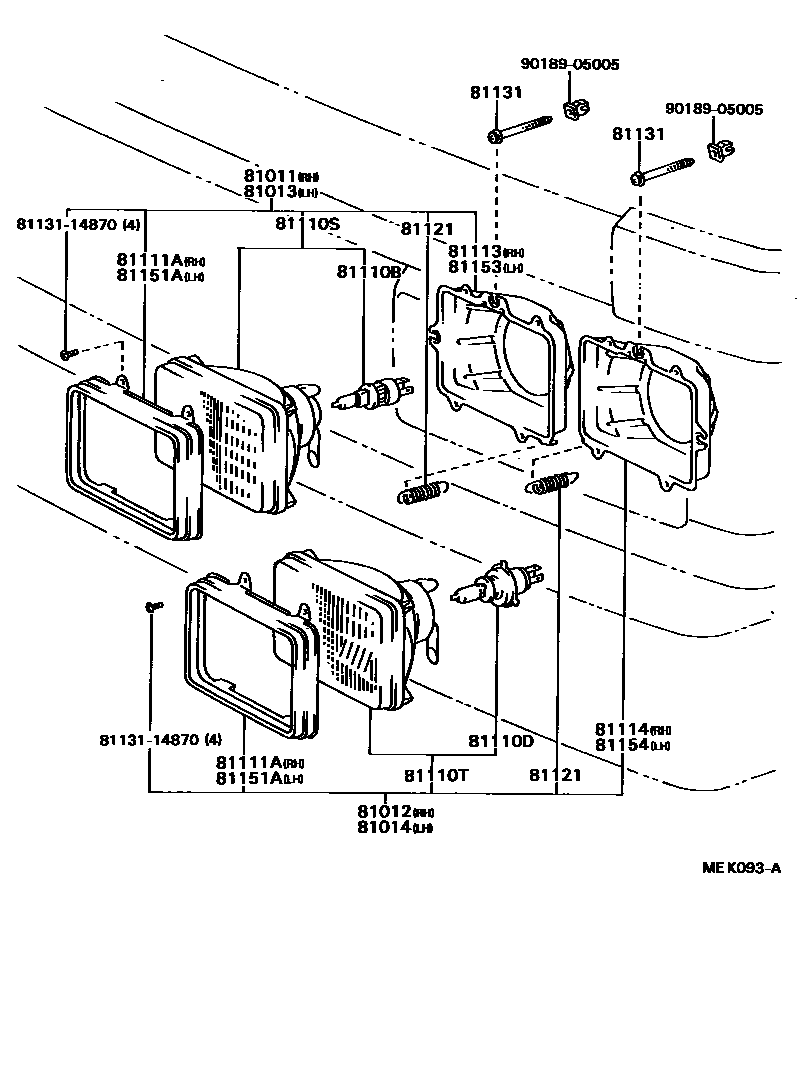

18 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota DYNA
This section contains 18 genuine Toyota parts for the HEADLAMP system of the Toyota DYNA. Key components include: HEADLAMP SUB-ASSY, NO.1, HEADLAMP SUB-ASSY, NO.2, HEADLAMP SUB-ASSY, TYPE 1, LH, HEADLAMP SUB-ASSY, TYPE 2, LH, BULB(FOR HEADLAMP, NO.1).
