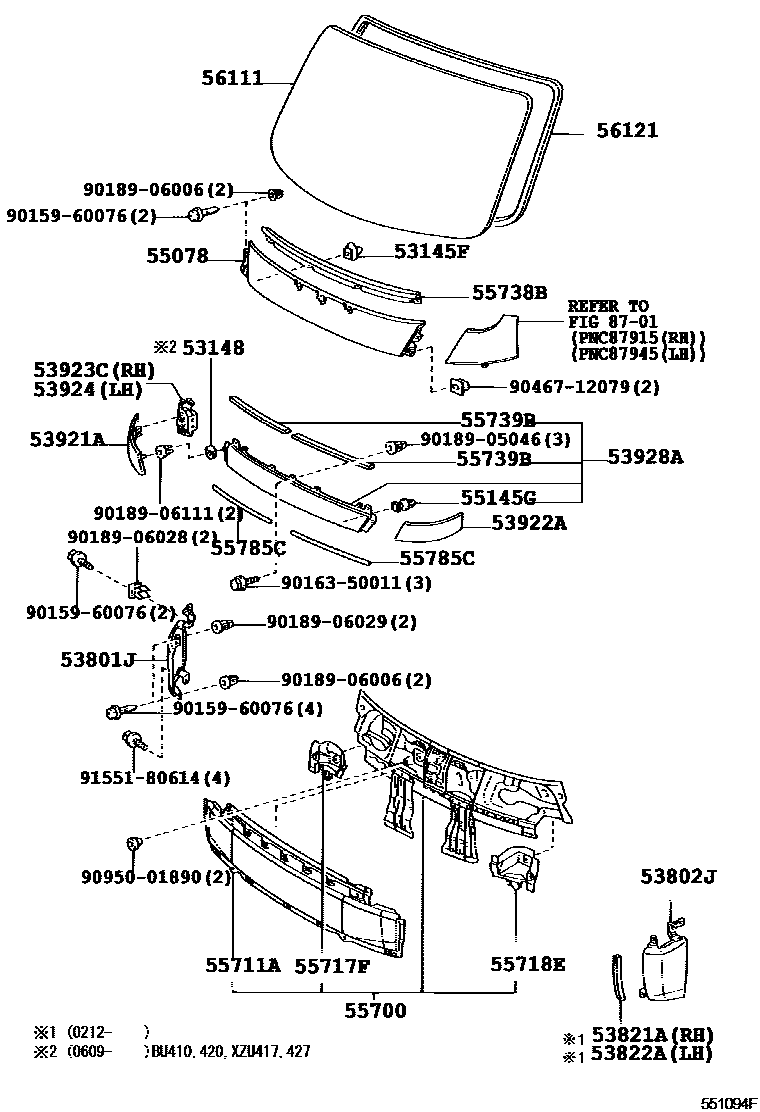

Toyota DYNA — FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1

53145FCLIP, RADIATOR GRILLE GARNISH

main90467-08208×2iBU410,420200110-200701

53148PROTECTOR, FRONT PANEL GARNISH SIDE

main53148-37010×2iBU410,420200609-200701

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37020iXZU404,414,424,434200110-200206

sub81973-37010

main53801-37021iXZU404,414,424..GEN200206-200212

main53801-37061iWU420;WU410..65T..SA200212-200801

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37020iXZU404,414,424,434200110-200206

sub81973-37010

main53802-37021iXZU414,424,434..EUR200206-200310

main53802-37061iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200212-200610

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37070iXZU414,424,434..EUR200310-200608

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37070iXZU414,424,434..EUR200310-200608

53921APANEL, FRONT VALANCE, RH

main53921-25010iBU410,420200110-200701

main53921-25011iWU41#,422,XZU41#,42#,439200912-201208

53922APANEL, FRONT VALANCE, LH

main53922-25010iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

main53922-25011iWU41#,422,XZU41#,42#,439200912-201208

53923CSUPPORT, FRONT SIDE GARNISH, RH

main53923-25010iXZU414,424,434..EUR200110-200608

53924PLATE, NOISE SHUTTER SUPPORT, NO.2

main53924-25010iWU420;WU410..65T..SA200110-200801

53928AGARNISH, FRONT PANEL, CENTER

main53928-37020iWU410,420,XZU404,41#,42#,43#200110-200403

main53928-37021iXZU414,424,434..EUR200404-200608

55078COVER SUB-ASSY, FRONT PANEL

main55078-37080iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

main55078-37090iXZU415,425,435200110-200708

55145GCLIP, RADIATOR GRILLE GARNISH

main53145-27010×9iXZU414,424,434..EUR200110-200608

55700PANEL ASSY, FRONT

main55700-37142iXZU404,414,424..RHD..GEN200306-200310

SINGAPORE SPEC

main55700-37143iXZU404,414,424..RHD..GEN200310-200610

SINGAPORE SPEC

sub55700-37330

main55700-37171iWU410,420,XZU404,41#,42#,43#..RHD200110-200306

main55700-37172iXZU404,414,424..ARL;WU410,420,XZU412,420,422,43#..RHD200306-200310

main55700-37173iWU410..RHD..GEN200610-200801

main55700-37230iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

main55700-37241iWU410,XZU412,422..RHD..GEN..IV3200306-200309

CKD PACKAGE

main55700-37242iWU410,XZU412,422..RHD..GEN..IV3200309-200610

CKD PACKAGE

main55700-37340iWU410,XZU420,430..(75T,85T)..SA200801-200802

55711APANEL, FRONT, LOWER

main55711-37060iWU410,420,XZU404,41#,42#,43#200110-200410

main55711-37061iXZU414,424,434..EUR200411-200608

55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH

main55717-37020iXZU414,424,434..EUR200110-200608

55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH

main55718-37010iBU410,420200110-200701

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37060iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37080×2iXZU414,424,434..EUR200110-200608

55785CPAD, FRONT PANEL COVER

main55785-37030×2iWU410..75T..SA;XZU412,420,422,430..6F200110-200802

56111GLASS, WINDSHIELD

main56111-37150iBU410,420,WU410,420,XZU404,41#,42#,43#200110-200608

*LAM,T=5.76,GREEN

main56111-37240iBU410,420200609-200701

*LAM,T=5.76,GREEN

sub56111-37241

56121WEATHERSTRIP, WINDSHIELD

main56121-37050iXZU414,424,434..EUR200110-200608

8701

9015960076

main90159-60076

9016350011

main90163-50011

9018905046

main90189-05046

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9018906111

main90189-06111

9046712079

main90467-12079

9095001890

main90950-01890

9155180614

main91551-80614

33 parts on this diagram · 2 diagrams in section
