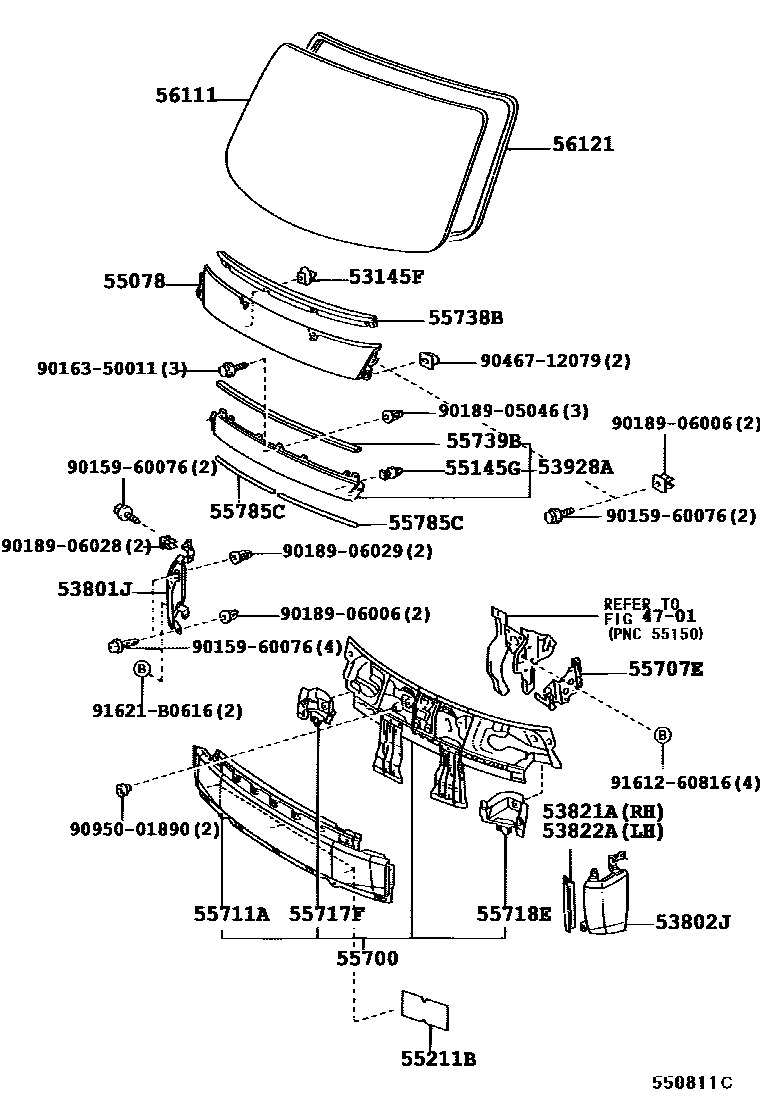

Toyota DYNA — FRONT PANEL & WINDSHIELD GLASS
4701
53145FCLIP, RADIATOR GRILLE GARNISH
53801JPANEL SUB-ASSY, FRONT SIDE, RH
53802JPANEL SUB-ASSY, FRONT SIDE, LH
53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH
53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH
53928AGARNISH, FRONT PANEL, CENTER
sub53928-37021
55078COVER SUB-ASSY, FRONT PANEL
55145GCLIP, RADIATOR GRILLE GARNISH
55211BSILENCER, FRONT PANEL
sub55211-25010
55707EBRACKET SUB-ASSY, RELAY MOUNTING
55711APANEL, FRONT, LOWER
sub55711-37061
55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH
55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH
55738BPROTECTOR, FRONT PANEL COVER, NO.1
55739BPROTECTOR, FRONT PANEL COVER, NO.2
55785CPAD, FRONT PANEL COVER
56111GLASS, WINDSHIELD
*LAM,T=5.76,BRONZE
56121WEATHERSTRIP, WINDSHIELD
W(*80,PASSENGER SIDE)
9015960076
main90159-60076
9016350011
main90163-50011
9018905046
main90189-05046
9018906006
main90189-06006
9018906028
main90189-06028
9018906029
main90189-06029
9046712079
main90467-12079
9095001890
main90950-01890
9161260816
main91612-60816
91621B0616
main91621-B0616
30 parts on this diagram · 2 diagrams in section
