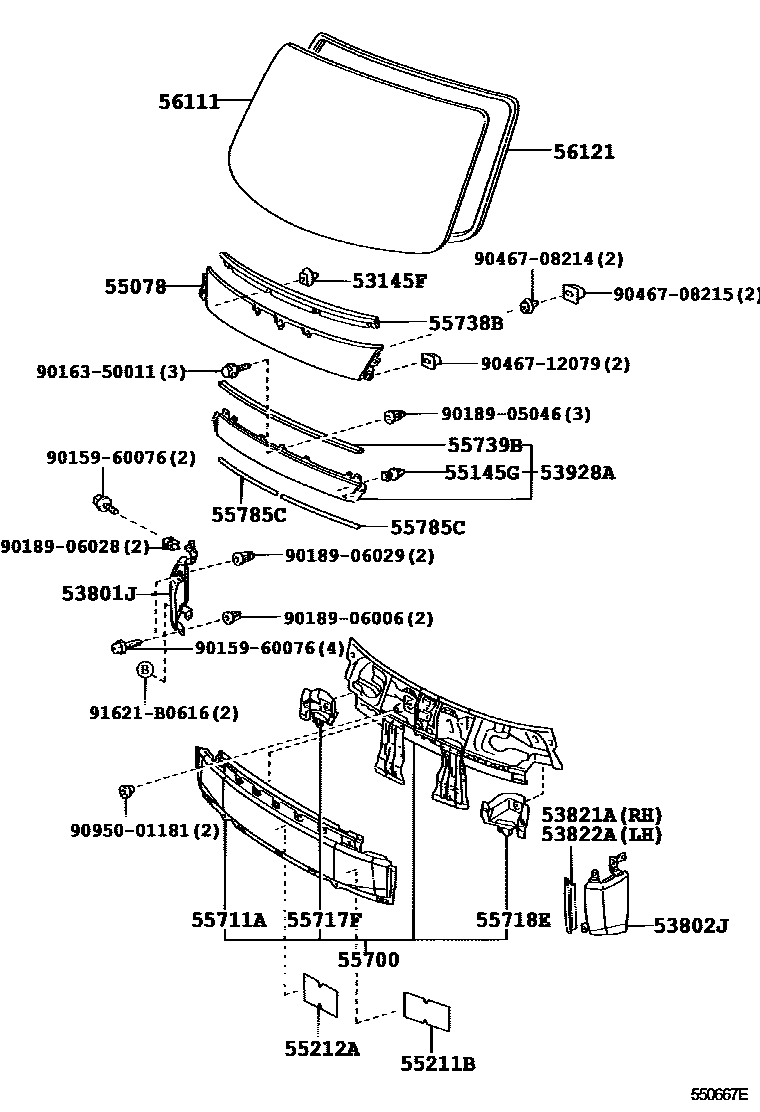

Toyota DYNA — FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1FRONT SUN SHADE

53145FCLIP, RADIATOR GRILLE GARNISH

main90467-08208×4iXZU30#,320,330,34#199907-200212

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-37020iXZU30#,320,330,34#199907-200206

PAINTED

sub81973-37010

main53801-37021iXZU300,320,330,340200206-200212

PAINTED

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-37020iXZU30#,320,330,34#199907-200206

PAINTED

sub81973-37010

main53802-37021iXZU300,320,330,340200206-200212

PAINTED

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-37040iXZU30#,320,330,34#199907-200105

main53821-37070iXZU30#,320,330,34#200105-200212

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53821-37040iXZU30#,320,330,34#199907-200105

main53821-37070iXZU30#,320,330,34#200105-200212

53928AGARNISH, FRONT PANEL, CENTER

main53928-37010iXZU30#,320,330,34#199907-200212

sub53928-37011

55078COVER SUB-ASSY, FRONT PANEL

main55078-37070iXZU30#,320,330,34#199907-200212

55145GCLIP, RADIATOR GRILLE GARNISH

main53145-27010×7iXZU30#,320,330,34#199907-200212

55211BSILENCER, FRONT PANEL

main55211-37030×2iXZU30#,320,330,34#199907-200212

sub55211-25010

55212ASILENCER, FRONT PANEL, LOWER

main55212-37010iXZU30#,320,330,34#199907-200212

sub55212-25010

55700PANEL ASSY, FRONT

main55700-37120iXZU30#,320,330,34#199907-200212

55711APANEL, FRONT, LOWER

main55711-37050iXZU30#,320,330,34#199907-200212

sub55711-37051

55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH

main55717-37020iXZU30#,320,330,34#199907-200212

55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH

main55718-37010iXZU30#,320,330,34#199907-200212

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37050iXZU30#,320,330,34#199907-200212

sub55738-37051

55739BPROTECTOR, FRONT PANEL COVER, NO.2

main55739-37070×2iXZU30#,320,330,34#199907-200212

55785CPAD, FRONT PANEL COVER

main55785-37020×2iXZU30#,320,330,34#199907-200212

56111GLASS, WINDSHIELD

main56111-37120iXZU30#,320,330,34#199907-200212

*LAM,T=5.76,GREEN,INEXPENSIVE PACKAGE

main56111-37130iXZU302,307,342200010-200206

*LAM,T=5.76,GREEN

main56111-37140iXZU302,307,342200010-200206

*LAM,T=5.76,BRONZE

56121WEATHERSTRIP, WINDSHIELD

main56121-37030iXZU30#,320,330,34#199907-200212

sub56121-37031

9015960076

main90159-60076

9016350011

main90163-50011

9018905046

main90189-05046

9018906006

main90189-06006

9018906028

main90189-06028

9018906029

main90189-06029

9046708214

main90467-08214

9046708215

main90467-08215

9046712079

main90467-12079

9095001181

main90950-01181

91621B0616

main91621-B0616

30 parts on this diagram · 2 diagrams in section
