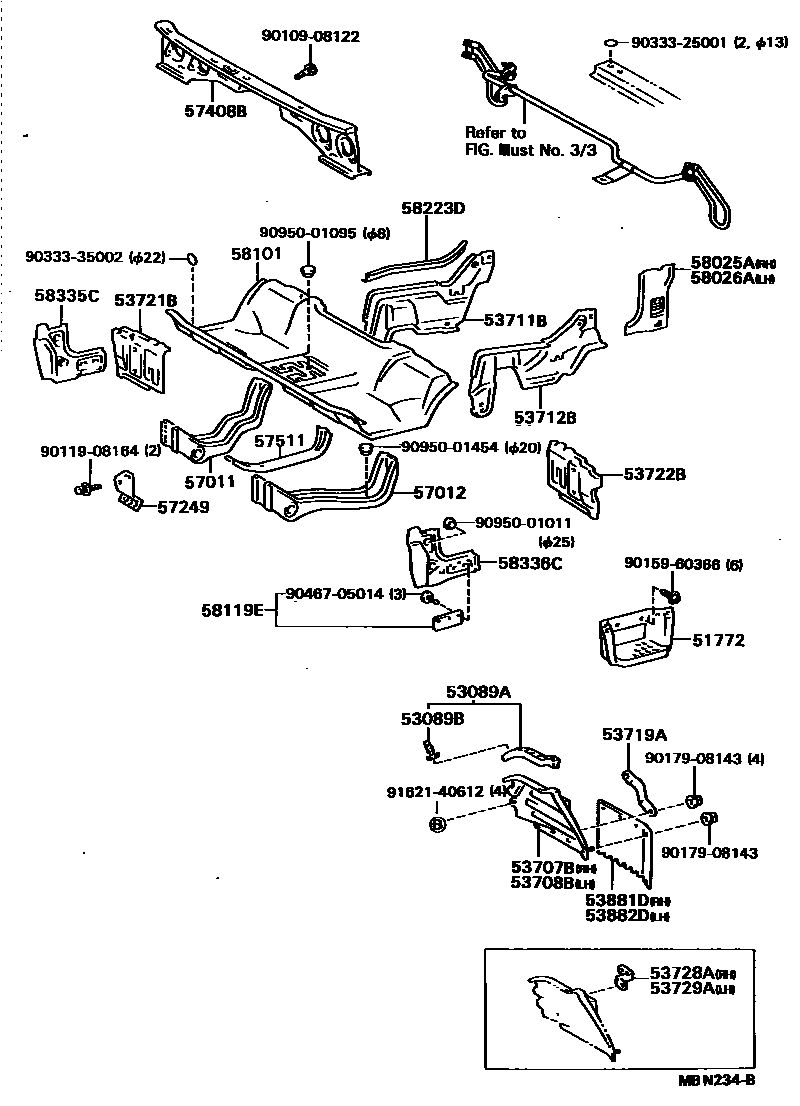

Toyota DYNA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
53089AMUDGUARD SUB-ASSY, FRONT
53089BCLIP, FRONT MUDGUARD
53707BAPRON SUB-ASSY, FENDER SIDE, RH
53708BAPRON SUB-ASSY, FENDER SIDE, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53719ABRACE, FENDER APRON
53721BAPRON SUB-ASSY, FENDER SIDE, RH
sub53707-37030
53722BAPRON SUB-ASSY, FENDER SIDE, LH
sub53708-37040
53728ABRACKET, FENDER APRON, RH
53729ABRACKET, FENDER APRON, LH
53881DMUDGUARD, FRONT RH
53882DMUDGUARD, FRONT LH
57011MEMBER SUB-ASSY, FLOOR, RH
57012MENBER SUB-ASSY
57249BRACKET, FLEXIBLE HOSE, NO.1
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57511REINFORCEMENT, FRONT FLOOR, CENTER
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58101PAN SUB-ASSY, FRONT FLOOR
W(PTO SEPARATE TYPE & HEAD LAMP CLEANER)
sub58111-95416
sub58126-95400
sub58251-95404
sub58252-95404
sub94220-00600
sub94220-00800
W(PTO SEPARATE TYPE)
sub58111-95417
sub58126-95400
sub58251-95404
sub58252-95404
sub94220-00600
sub94220-00800
W(HEADLAMP CLEANER)
sub58111-95418
sub58126-95400
sub58251-95404
sub58252-95404
sub94220-00600
sub94220-00800
58119ECOVER, FRONT FLOOR SIDE, FRONT
58223DREINFORCEMENT, FLOOR PANEL SIDE, RH
58335CPLATE, FLOOR SIDE, FRONT RH
sub58335-95401
58336CPLATE, FLOOR SIDE, FRONT LH
sub58336-95401
9010908122
main90109-08122
9011908164
main90119-08164
9015960366
main90159-60366
9017908143
main90179-08143
9033325001
main90333-25001
9033335002
main90333-35002
9046705014
main90467-05014
9095001011
main90950-01011
9095001095
main90950-01095
9095001454
main90950-01454
9162140612
main91621-40612
37 parts on this diagram · 3 diagrams in section
