Toyota DYNA — FRONT DOOR PANEL & GLASS

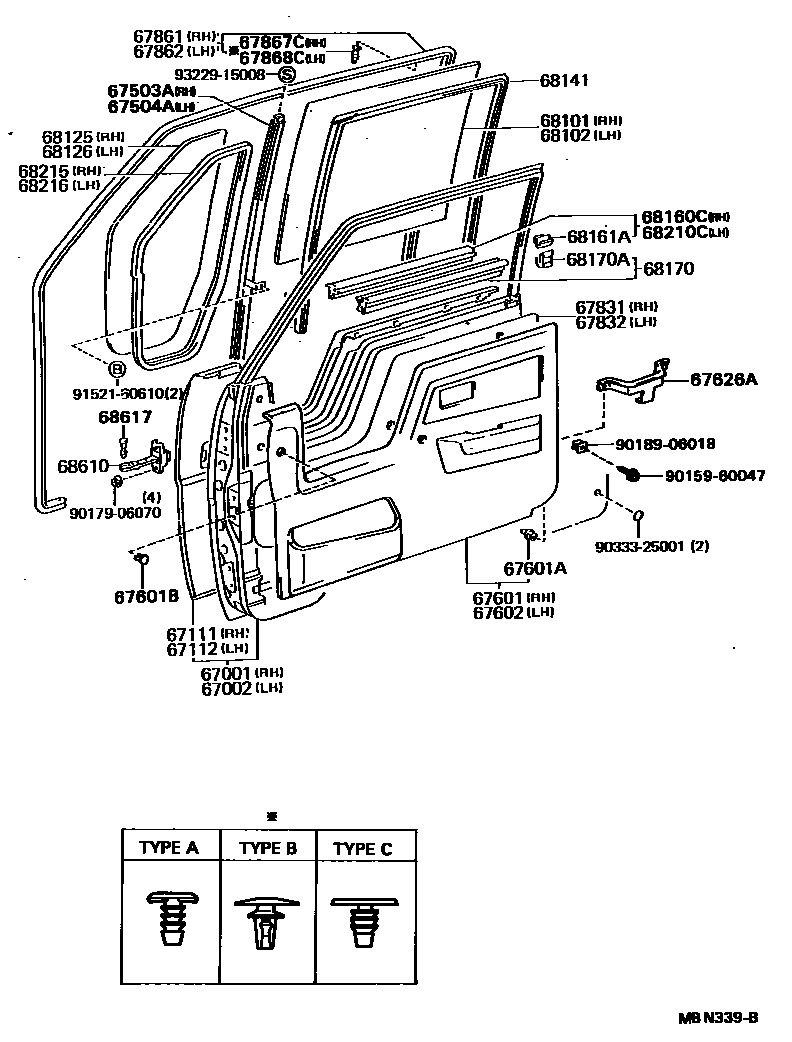

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-95432i198801-198808
main67001-96428i198708-198801
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-95435i198708-198808
main67002-95438i198801-198808
67111PANEL, FRONT DOOR, OUTER RH
main67111-95407i198708-198808
67112PANEL, FRONT DOOR, OUTER LH
main67112-95406i198708-198808
67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH
main67503-95400i198708-198808
67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH
main67504-95400i198708-198808
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-95413-06i198708-198808
BROWN,TRIM4#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-30060×22i198708-198808
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07043-16×2i198708-198808
BROWN,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-95420-06i198708-198808
BROWN,TRIM4#
67626ABRACKET, DOOR TRIM, NO.2
main67626-95400×2i198708-198808
67831COVER, FRONT DOOR SERVICE HOLE, RH
main67831-95406i198708-198808
67832COVER, FRONT DOOR SERVICE HOLE, LH
main67832-95407i198708-198808
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-95406i198708-198808
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-95406i198708-198808
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
main67867-89103i198708-198808
TYPE B
main67867-95401×28i198708-198808
TYPE C
main67868-30040×28i198708-198808
TYPE A
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
main67867-95401×28i198708-198808
TYPE C
main67868-30040×28i198708-198808
TYPE A
main67868-89101×28i198708-198808
TYPE B
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-95406×2i198708-198808
*TEM,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-95406×2i198708-198808
*TEM,T=4.0
68125GLASS, FRONT DOOR FIX WINDOW, RH
main68125-95400i198708-198808
*TEM,T=3.5
68126GLASS, FRONT DOOR FIX WINDOW, LH
main68126-95400i198708-198808
*TEM,T=3.5
68141RUN, FRONT DOOR GLASS
main68141-95407×2i198708-198808
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
main68160-95402i198708-198808
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
main68211-30080×8i198708-198808
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-95407i198708-198808
RH
main68172-95404i198708-198808
LH
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
main68211-12080×6i198708-198808
WHITE
main68211-95400×2i198708-198808
ORANGE
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
main68160-95402i198708-198808
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
main68215-95402i198708-198808
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
main68216-95402i198708-198808
68610CHECK ASSY, FRONT DOOR
main68610-95400×2i198708-198808
68617PIN, FRONT DOOR CHECK
main68617-90A00×2i198708-198808
9015960047
main90159-60047
9017906070
main90179-06070
9018906018
main90189-06018
9033325001
main90333-25001
9152160610
main91521-60610
9322915008
main93229-15008

37 parts on this diagram · 1 diagram in section

FRONT DOOR PANEL & GLASS for Toyota DYNA

This section contains 37 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota DYNA. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, BAR SUB-ASSY, FRONT DOOR DIVISION, RH.
