Toyota DYNA — FRONT AXLE HUB

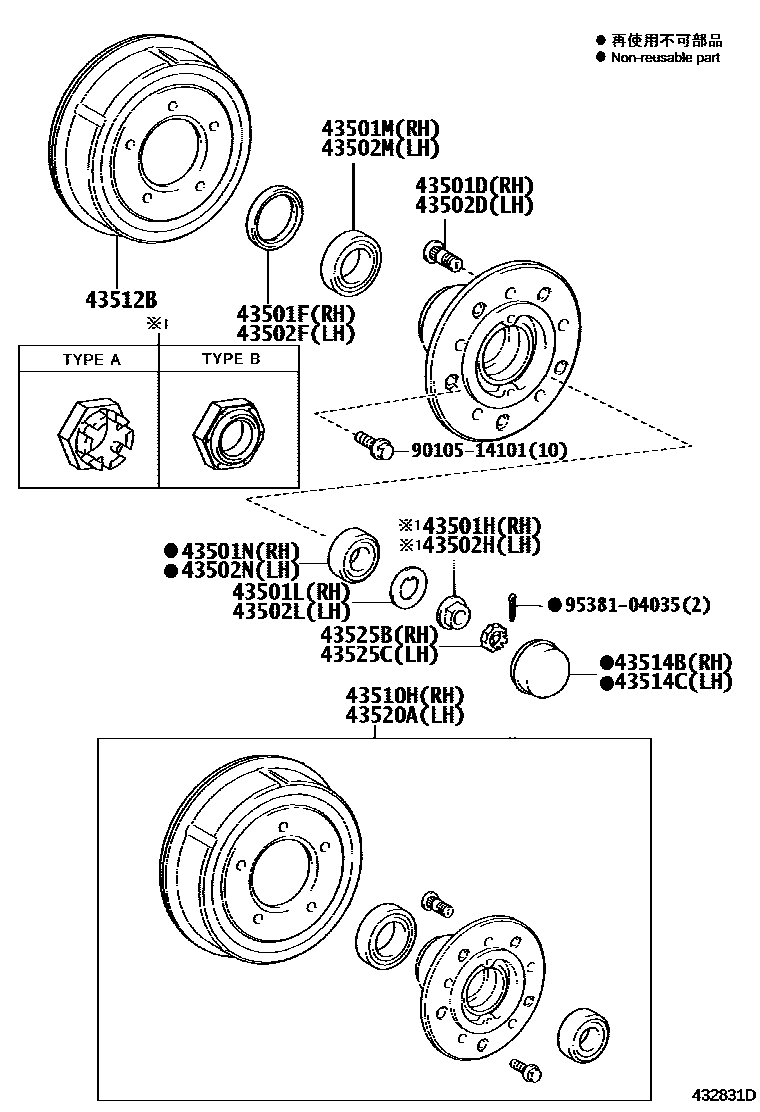

Parts diagram
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02071×6i201911
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90033-19009i201107-201509
main90311-68003i201107-201505
43501HNUT (FOR FRONT AXLE SHAFT RH)
main90171-33001supersedes SZ18633002i201107-201502
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main90178-28001i201107-202005
mainSZ18633002×2i202412
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB,TYPE B:REFER ILLUST.; ABS-WITH(POWER ASSIST BRAKE),TYPE B:REFER ILLUST.; TIRE & DISC WHEEL-215/75R17.5 124 RIB,TYPE B:REFER ILLUST.
43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)
main90214-29001i201107-202005
main90214-33001i201107-201502
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
main90366-50069i201107-201505
main90368-50001i201107-201512
43501NBEARING (FOR FRONT AXLE HUB OUTER RH)
main90033-66032i201107-201512
main90366-35105i201107-202005
mainSZ36635018i202412
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02072×5i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
main90033-19009i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main90311-68003i201107-202005
43502HNUT (FOR FRONT AXLE SHAFT LH)
main90171-33001supersedes SZ18633002i201107-201502
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main90178-28001i201107-201505
mainSZ18633002×2i202412
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB,TYPE B:REFER ILLUST.; ABS-WITH(POWER ASSIST BRAKE),TYPE B:REFER ILLUST.; TIRE & DISC WHEEL-215/75R17.5 124 RIB,TYPE B:REFER ILLUST.
43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)
main90214-29001i201107-202005
main90214-33001i201107-201502
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
main90366-50069i201107-201505
main90368-50001i201911
43502NBEARING (FOR FRONT AXLE HUB OUTER LH)
main90033-66032i201911-202411
main90366-35105i201107-202005
mainSZ36635018i202412
43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH
main43510-39295supersedes 43510-39485i201107-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main43510-39325i201306-201502
main43510-39495i201502-201512
main43510-39255supersedes 43510-39265i201107-201502
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main43510-39265supersedes 43510-39205i201505-202005
FRONT WHEEL BRAKE-320(83) DRUM&ABS-WITHOUT
main43510-39275supersedes 43510-39265i201107-202005
FRONT WHEEL BRAKE-114.8 DISC
main43510-39305supersedes 43510-39295i201911
ABS-WITH(POWER ASSIST BRAKE)
main43510-39485supersedes 43510-39265i201502-201505
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
43512DISC, FRONT
main43512-37120×2i201306-201410
main43512-37121×2supersedes 43512-37091i201411-201512
main43512-37090×2i201107-201410
FRONT WHEEL BRAKE-114.8 DISC
main43512-37091×2i201411-201505
FRONT WHEEL BRAKE-114.8 DISC
43512BDRUM, BRAKE
main43512-37110×2i201107-202005
main43512-37130×2supersedes 43512-37110i201107-202005
43514BCAP, FRONT AXLE HUB GREASE, RH
main43514-37030i201107-201304
main43514-37040i201107-201512
main43514-37050i201305-202005
43514CCAP, FRONT AXLE HUB GREASE, LH
main43514-37030i201107-201304
main43514-37040i201911
main43514-37050i201305-202005
43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH
main43520-39275supersedes 43520-39465i201107-202005
main43520-39305i201306-201502
main43520-39475i201502-201512
main43520-39235supersedes 43520-39245i201107-201502
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main43520-39245supersedes 43520-39185i201505-202005
FRONT WHEEL BRAKE-320(83) DRUM&ABS-WITHOUT
main43520-39255supersedes 43520-39245i201107-201505
FRONT WHEEL BRAKE-114.8 DISC
main43520-39285supersedes 43520-39275i201911
ABS-WITH(POWER ASSIST BRAKE)
main43520-39465supersedes 43520-39185i201505-202005
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-215/75R17.5 126 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-10 RIB; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 LUG; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISKWHEEL-750R16-12 RIB
43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH
main43525-37010i201107-202005
mainSZ93002008×2i202412
ABS-WITH(POWER ASSIST BRAKE); ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB; TIRE & DISC WHEEL-215/75R17.5 124 RIB
43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH
main43525-37010i201107-202005
mainSZ93002008×2i202412
ABS-WITH(POWER ASSIST BRAKE); ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISC WHEEL-215/75R17.5 124 RIB; TIRE & DISC WHEEL-215/75R17.5 124 RIB
9010514101
main90105-14101
9538104035
main95381-04035

22 parts on this diagram · 4 diagrams in section

FRONT AXLE HUB for Toyota DYNA

This section contains 25 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota DYNA. Key components include: SPACER, STEERING KNUCKLE, BOLT, HUB (FOR FRONT AXLE RH), SEAL, OIL (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH), WASHER, CLAW (FOR FRONT AXLE HUB RH).
