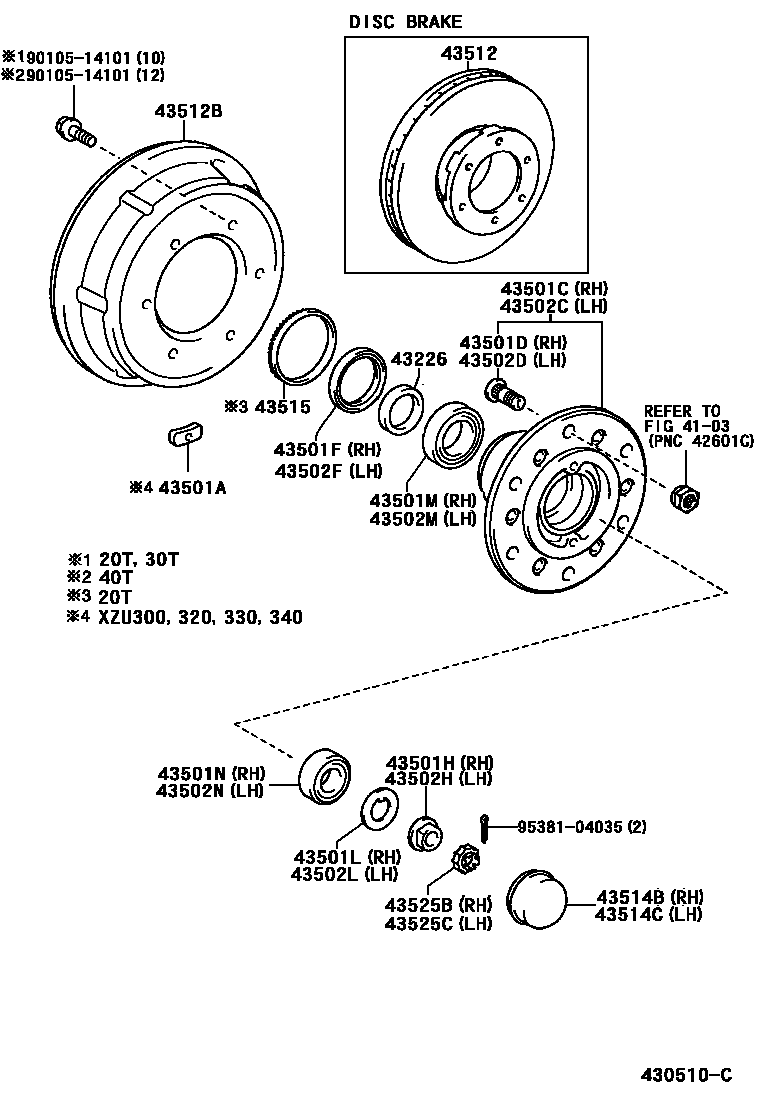

Toyota DYNA — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43226SPACER, STEERING KNUCKLE

main43226-37020×2i199907-200212

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01117i199907-200212

10G

main90937-01118i199907-200212

20G

main90937-01119i199907-200212

30G

main90937-01120i199907-200212

40G

main90937-01121i199907-200212

50G

main90937-01122i199907-200212

60G

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43501-37060i200004-200212

main43501-37070i199907-200004

main43501-37080i200004-200212

main43501-37090i199907-200004

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071×5i199907-200212

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68002i199907-200212

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28001i199907-200212

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-29001i199907-200212

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069i199907-200212

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105i199907-200212

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-37060i200004-200212

main43502-37070i199907-200004

main43502-37080i200004-200212

main43502-37090i199907-200004

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072×5i199907-200212

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68002i199907-200212

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28001i199907-200212

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-29001i199907-200212

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069i199907-200212

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105i199907-200212

43512DISC, FRONT

main43512-37090×2i200010-200206

43512BDRUM, BRAKE

main43512-37110×2i199907-200212

main43512-37130×2i199907-200212

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-37030i199907-200212

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-37030i199907-200212

43515ROTOR, SKID CONTROL, FRONT

main43515-37010×2i200010-200206

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-37010i199907-200212

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-37010i199907-200212

9010514101

main90105-14101

9538104035

main95381-04035

26 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota DYNA

This section contains 26 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota DYNA. Key components include: DISC WHEEL & WHEEL CAP, SPACER, STEERING KNUCKLE, PIECE, BALANCE (FOR FRONT BRAKE DRUM), HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH).
