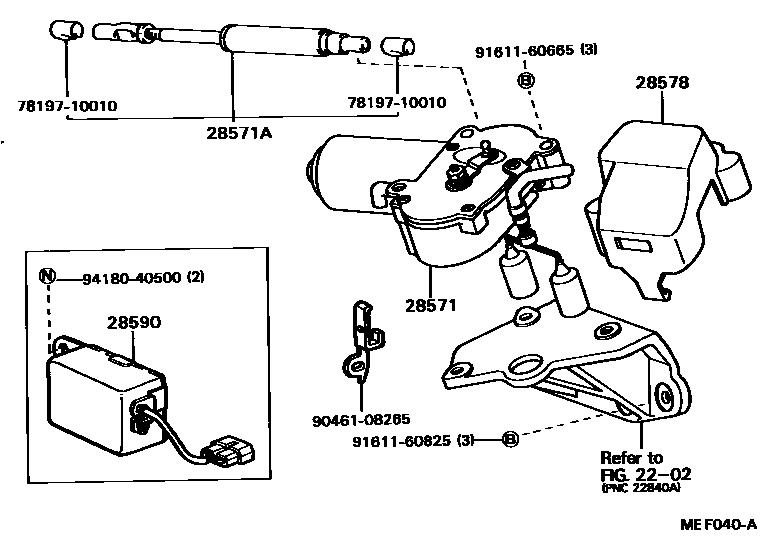

Toyota DYNA — ELECTRONIC DIESEL INJECTION CONTROL SYSTEM

2202

28571MOTOR, FUEL CONTROL

main28571-56130iB..BU75..EUR198409-198708

24V,CHINA SPEC

28571AROD, FUEL CONTROL MOTOR

main84580-36021iB..BU75..EUR198409-198708

24V,CHINA SPEC

28578COVER, FUEL CONTROL MOTOR

main28578-56010iB..BU75..EUR198409-198708

24V,CHINA SPEC

28590RELAY ASSY, FUEL CONTROL

main28590-57020iB..BU75..EUR198409-198708

24V,CHINA SPEC

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9046108265

main90461-08265

9161160665

main91611-60665

9161160825

main91611-60825

9418040500

main94180-40500

10 parts on this diagram · 1 diagram in section
