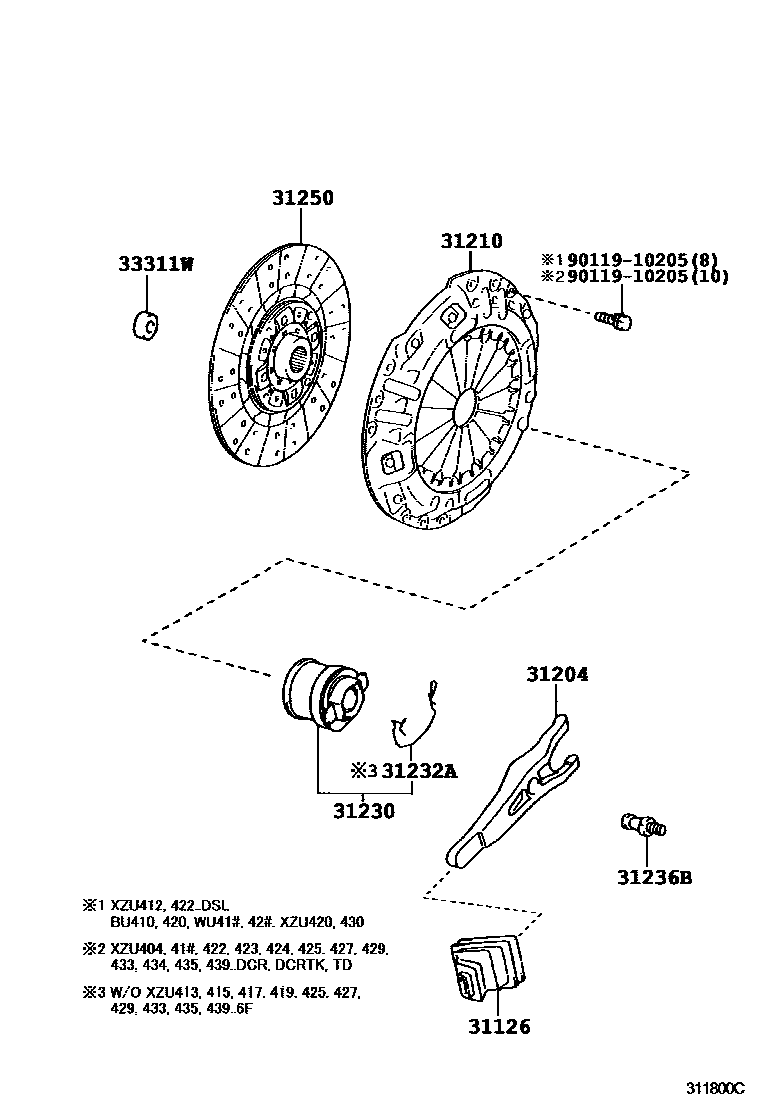

Toyota DYNA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-36070iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

main31126-37030iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200610-201208

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-36142iBU410,420200411-200701

main31204-37010iXZU412,422..DSL200311-200610

main31204-37040iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200610-201208

main31204-37050iWU410,420..SA200212-200802

sub31204-37051

31210COVER ASSY, CLUTCH

main31210-36240iXZU412,420,422,430..DSL200212-200602

main31210-36320iWU412,422200610-201106

main31210-37090iXZU414,424,434..EUR200110-200608

sub31210-37091

main31210-37110iWU410,420..SA200212-200802

main31210-37120iBU410,420200411-200701

sub31210-37180

31230BEARING ASSY, CLUTCH RELEASE

main31230-36200iWU412,422..5F200610-201106

main31230-36210iXZU413,423..5F200610-201106

main31230-37010iWU410,420..SA200212-200802

main31230-37030iWU412,422..85T200610-201106

main31230-37050iXZU415,425,435200608-200708

31232ACLIP, RELEASE BEARING HUB

main31232-36030iXZU412,420,422,430..6F200110-200802

main31232-37010iWU410..75T..SA200212-200802

main31232-37020iWU412,422..85T200610-201106

31236BSUPPORT, RELEASE FORK

main31236-36060iXZU414,424,434..EUR200110-200608

31250DISC ASSY, CLUTCH

main31250-37120iXZU414,424,434..EUR200110-200608

main31250-37133iXZU412,420,422,430..DSL200212-200311

main31250-37134iXZU412,420,422,430..DSL200311-200405

main31250-37135iXZU412,422..DSL200406-200610

main31250-37140iWU410..GCC,GEN200212-200610

sub31250-37141

main31250-37170iBU410,420200411-200701

sub31250-37171

main31250-37180iXZU413,415,417,423,425,427,435..DCRTK200610-200710

main31250-37220iXZU413,415,417,419,423,425,427,429,433,435,439200711-201208

sub31250-37221

33311WBEARING (FOR INPUT SHAFT)

main90033-63032iXZU420,430200304-200802

subSZ371-20022

main90363-12018iBU410,420200411-200701

NSK

main90363-17037iWU410,420,XZU415,425,435..DCR,DSL200212-200802

9011910205

main90119-10205

9 parts on this diagram · 1 diagram in section
