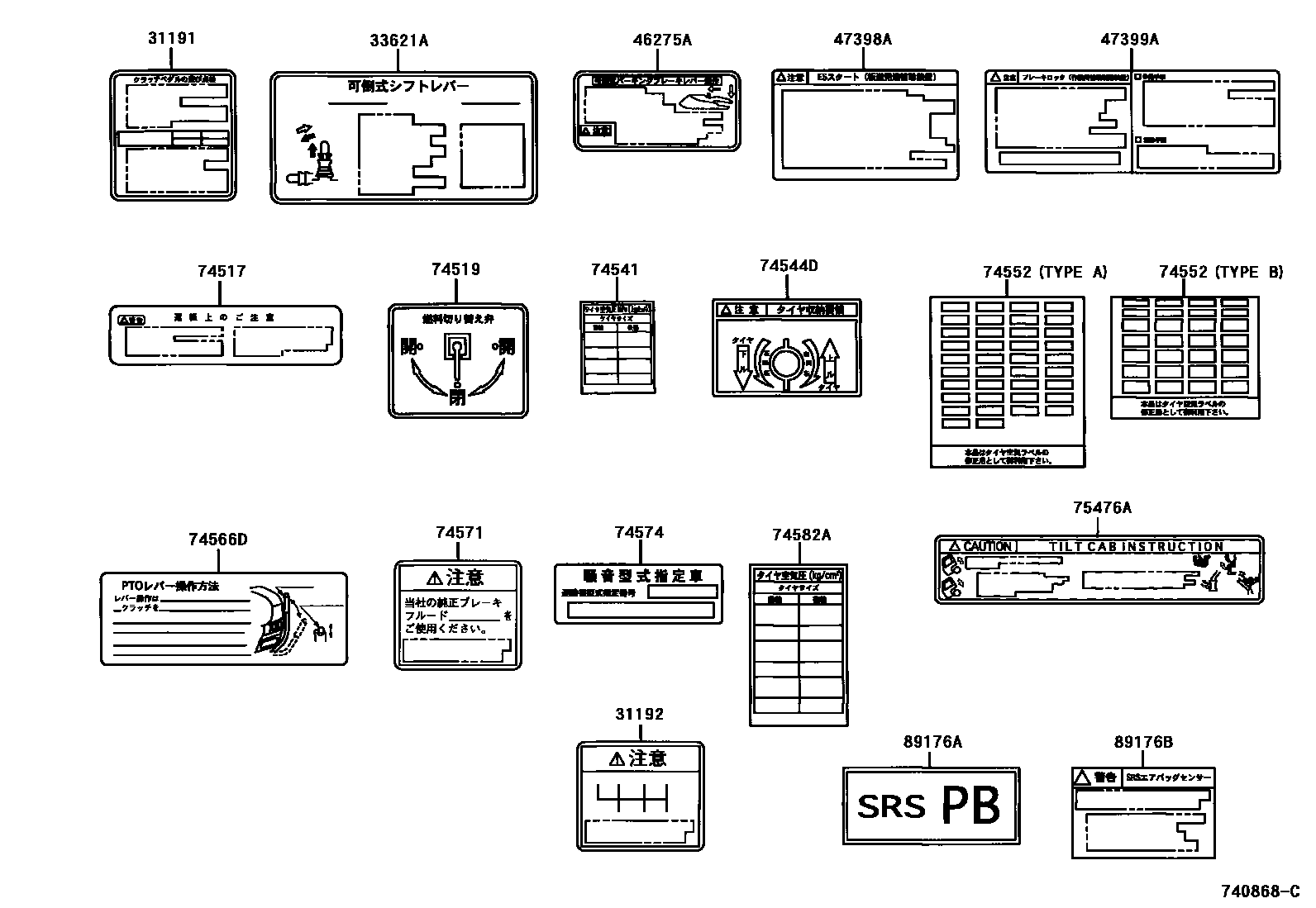

Toyota DYNA — CAUTION PLATE

31191LABEL, CLUTCH INFORMATION

main31191-37010iXZU402,41#,420,430..MTM200010-200206

31192LABEL, CLUTCH NOTICE

main31192-37010iXZU41#,420,430..MTM200111-200206

33621APLATE, CONTROL LEVER CAUTION

main33621-37020iXZU402,41#,420,430..MTM200010-200206

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-37010iXZU402,41#,420,430200010-200206

sub46275-37020

47398ALABEL, HILL HOLDER CAUTION

main47398-37010iXZU402,41#,420,430..MTM200010-200206

47399ALABEL, BRAKE LOCK CAUTION

main47399-37010iXZU410,420200010-200206

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-26020iXZU402,41#,420,430200010-200206

74519PLATE, FUEL CAUTION

main74559-36010iXZU410,420,430200010-200206

sub74538-37030

74541PLATE, TIRE PRESSURE CAUTION

main74582-37830iXZU411..MTM200010-200206

74544DPLATE, TIRE CARRIER CAUTION

main74544-36050iXZU402,41#,420,430200010-200206

74552PLATE, SAFETY CAUTION

main74582-37640iXZU402,41#,420,430200010-200206

TYPE B:REFER TO ILLUSTRATION

sub74582-37641

main74582-37720iXZU402,41#,420,430200010-200206

TYPE A:REFER TO ILLUSTRATION

74566DLABEL, POWER TAKE OFF VALVE LINK COVER CAUTION

main74566-37020iXZU410200010-200206

sub74566-37160

74571PLATE, BRAKE FLUID CAUTION

main47288-27020iXZU402,41#,420,430200012-200206

74574PLATE, NOISE IDENTIFICATION

main74577-37200iXZU402,412200010-200206

main74577-37210iXZU411200010-200206

main74577-37220iXZU410,420,430200010-200206

74582APLATE, SAFETY CAUTION

main74582-37501iXZU410,420,430200010-200206

sub74552-37A20

main74582-37531iXZU402200010-200206

sub74582-37681

main74582-37551iXZU411..ATM200010-200206

main74582-37671iXZU412200010-200206

75476APLATE, TILT OPERATIONAL CAUTION

main75476-37070iXZU402,41#,420,430200010-200206

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-27010iXZU402,41#,420,430200010-200206

89176BLABEL, AIRBAG SENSOR COVER CAUTION

main89176-37010iXZU402,41#,420,430200010-200206

18 parts on this diagram · 1 diagram in section
