Toyota DYNA — AUTOMATIC TIMER

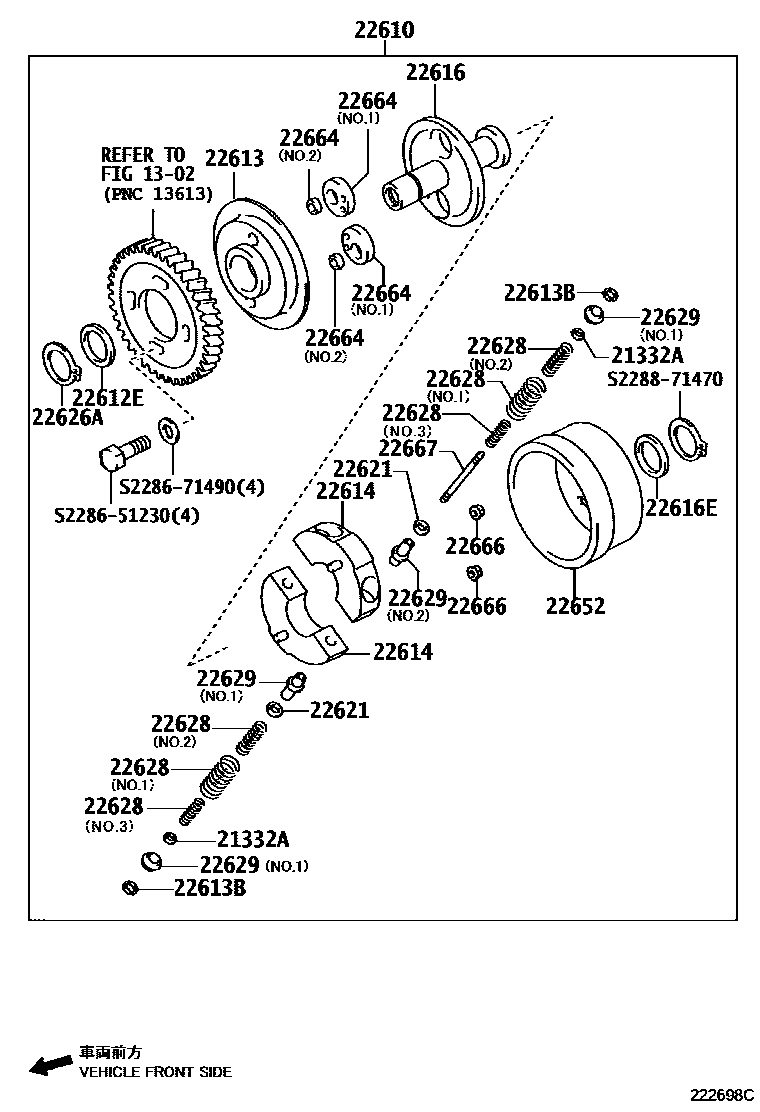

Parts diagram
1302
21332AWASHER(FOR AUTOMATIC TIMER)
mainS228772690×4i201107-202005
T=0.5
mainS228772700×4i201107-202005
T=0.7
mainS228772710×4i201107-202005
T=0.9
22610TIMER ASSY, AUTOMATIC
mainS225103070i201107-202005
mainS225103240i201107-202005
22612EWASHER, SPECIAL
mainS228772070×2i201107-202005
T=0.5
mainS228772080×2i201107-202005
T=1.0
mainS228772090×2i201107-202005
T=1.1
mainS228772100×2i201107-202005
T=1.2
mainS228772110×2i201107-202005
T=1.3
mainS228772120×2i201107-202005
T=1.4
mainS228772520×2i201107-202005
T=1.05
mainS228772530×2i201107-202005
T=1.15
mainS228772540×2i201107-202005
T=1.25
mainS228772550×2i201107-202005
T=1.35
mainS228772560×2i201107-202005
T=1.45
22613FLANGE, TIMER DRIVING
mainS225132730i201107-202005
mainS225132740i201107-202005
NO.2
mainS225191090i201107-202005
NO.1
22613BRETAINER, TIMER SPRING SEAT
mainS225181110×4i201107-202005
sub90099-07133
22614WEIGHT, TIMER
mainS225144220×2i201107-202005
mainS225144320×2i201107-202005
22616HUB, TIMER
mainS225162080i201107-202005
mainS225162120i201107-202005
22616EWASHER, PLATE(FOR TIMER HUB)
mainS228772570×2i201107-202005
T=0.5
mainS228772580×2i201107-202005
T=0.6
mainS228772590×2i201107-202005
T=0.7
mainS228772600×2i201107-202005
T=0.8
mainS228772610×2i201107-202005
T=0.9
mainS228772620×2i201107-202005
T=1.0
mainS228772630×2i201107-202005
T=0.55
mainS228772640×2i201107-202005
T=0.65
mainS228772650×2i201107-202005
T=0.75
mainS228772660×2i201107-202005
T=0.85
mainS228772670×2i201107-202005
T=0.95
mainS228772680×2i201107-202005
T=1.05
22621WASHER, TIMER SPRING ADJUST
mainS228855870×8i201107-202005
T=0.5
sub90099-01572
mainS228855880×8i201107-202005
T=0.6
sub90099-01573
mainS228855890×8i201107-202005
T=0.7
sub90099-01574
mainS228857340×8i201107-202005
T=0.8
mainS228857350×8i201107-202005
T=0.9
mainS228857830×8i201107-202005
T=1.0
mainS228857840×8i201107-202005
T=1.1
mainS228857850×8i201107-202005
T=1.2
mainS228857860×8i201107-202005
T=1.3
mainS228857880×8i201107-202005
T=1.5
mainS228857890×8i201107-202005
T=1.4
mainS228858940×8i201107-202005
T=0.5
mainS228858950×8i201107-202005
T=0.6
mainS228858960×8i201107-202005
T=0.7
mainS228858970×8i201107-202005
T=0.8
mainS228858980×8i201107-202005
T=0.9
mainS228858990×8i201107-202005
T=1.0
22626ARING, CLAMP(FOR DRIVE GEAR)
mainS228871320i201107-202005
22628SPRING, TIMER SUB
mainS225157130×4i201107-202005
NO.1
mainS225157140×4i201107-202005
LH NO.3
mainS225157150×4i201107-202005
NO.2
mainS225157300×4i201107-202005
mainS225153790×4i201306-201310
HIGH ALTITUDE COMPENSATOR-WITH,NO.1
22629SEAT, SPRING(FOR TIMER SPRING)
mainS225171510×4i201107-202005
NO.1
mainS225171910×4i201107-202005
NO.2
mainS225171930×2i201107-202005
NO.2
mainS225171940×4i201107-202005
NO.1
22652COVER SUB-ASSY, TIMER
mainS225011380i201107-202005
mainS225122040i201107-202005
22664CAM, TIMER
mainS225451430×2i201107-202005
NO.1
mainS225451440×2i201107-202005
NO.2
mainS225451480×2i201107-202005
NO.1
mainS225451490×2i201107-202005
NO.2
22666ROLLER, TIMER
mainS225221100×2i201107-202005
mainS225221110×2i201107-202005
22667SLEEVE
mainS225171400×2i201107-202005
mainS225171920×2i201107-202005
S228651230
mainS2286-51230
S228671490
mainS2286-71490
S228871470
mainS2288-71470

20 parts on this diagram · 2 diagrams in section
