Toyota DYNA — AUTOMATIC TIMER

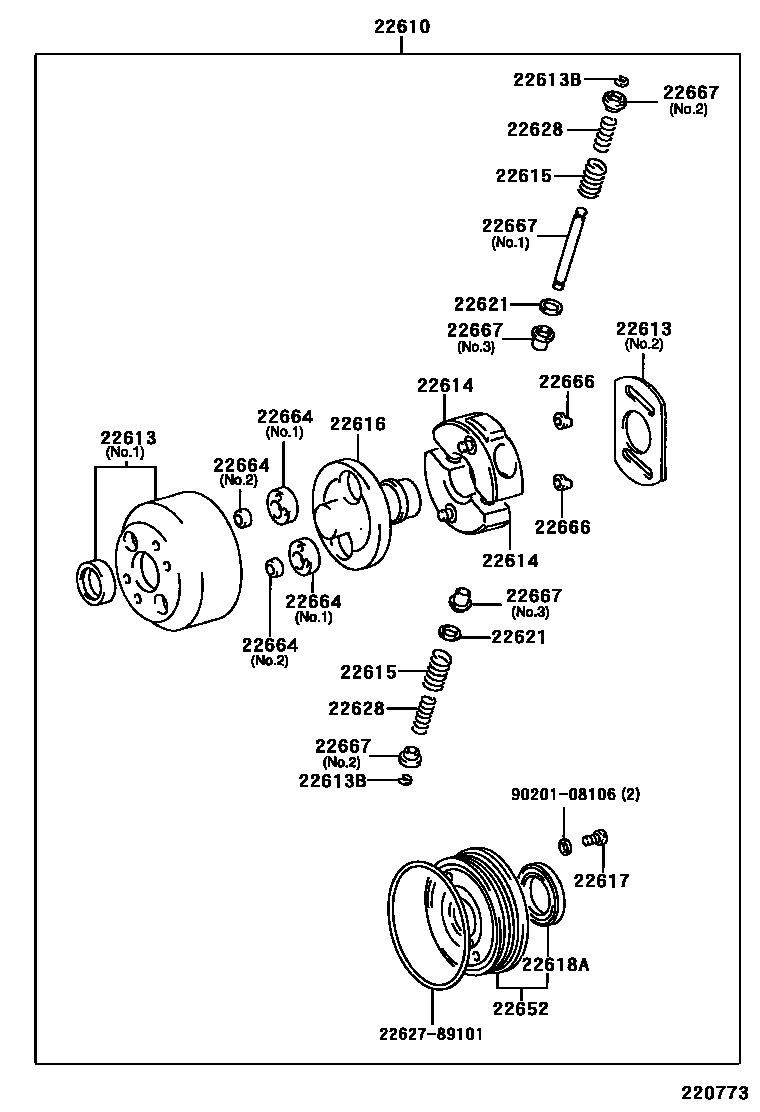

Parts diagram
22610TIMER ASSY, AUTOMATIC
main22610-89102i200010-200206
subS2251-02880
22613FLANGE, TIMER DRIVING
main22612-89101i200010-200206
NO.1
subS2251-32590
main22613-89103i200010-200206
NO.2
subS2251-32670
22613BRETAINER, TIMER SPRING SEAT
main90099-07133×4i200010-200206
22614WEIGHT, TIMER
main22614-89102×2i200010-200206
subS2251-44070
22615SPRING, TIMER
main22628-89104×4i200010-200206
L=60.0
subS2251-56770
main22628-89105×4i200010-200206
L=62.5
subS2251-56780
22616HUB, TIMER
main22663-89102i200010-200206
subS2251-62070
22617SCREW, TIMER HUB
main22617-89101×2i200010-200206
subS2286-51270
22618ASEAL, OIL
main22618-89102i200010-200206
subS2282-71690
22621WASHER, TIMER SPRING ADJUST
main22621-89101×4i200010-200206
T=0.8
subS2288-57340
main22621-89102×4i200010-200206
T=0.9
subS2288-57350
main22621-89103×4i200010-200206
T=1.0
subS2288-57830
main22621-89104×4i200010-200206
T=1.1
subS2288-57840
main22621-89105×4i200010-200206
T=1.2
subS2288-57850
main22621-89106×4i200010-200206
T=1.3
subS2288-57860
main22621-89107×4i200010-200206
T=1.4
subS2288-57890
main22621-89108×4i200010-200206
T=1.5
subS2288-57880
main90099-01572×4i200010-200206
T=0.5
main90099-01573×4i200010-200206
T=0.6
main90099-01574×4i200010-200206
T=0.7
22628SPRING, TIMER SUB
main22628-89102×4i200010-200206
L=44.5
subS2251-56750
main22628-89103×4i200010-200206
L=39.9
subS2251-56760
22652COVER SUB-ASSY, TIMER
main22652-89101i200010-200206
subS2250-11210
22664CAM, TIMER
main22664-89101×2i200010-200206
NO.1
subS2254-51330
main22664-89102×2i200010-200206
NO.2
subS2254-51320
22666ROLLER, TIMER
main22666-89101×2i200010-200206
subS2252-21090
22667SLEEVE
main22667-89101×2i200010-200206
NO.1
subS2251-71590
main22667-89104×4i200010-200206
NO.2
subS2251-71600
main22667-89105×4i200010-200206
NO.3
subS2251-71840
2262789101
main22627-89101
9020108106
main90201-08106

16 parts on this diagram · 2 diagrams in section
