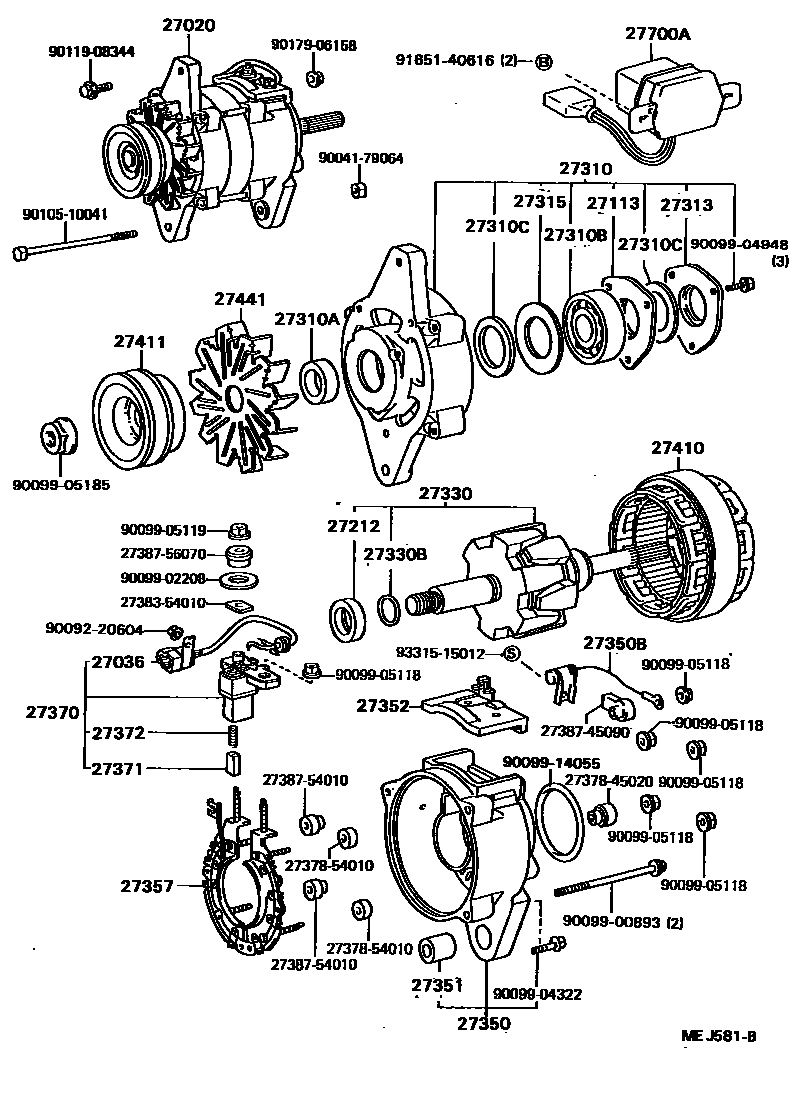

Toyota DYNA — ALTERNATOR
27020ALTERNATOR ASSY
24V 25A
27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27113PLATE, BEARING RETAINER, ALTERNATOR
27212RING, SPACE(FOR ALTERNATOR ROTOR)
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27310CFELT(FOR ALTERNATOR DRIVE END FRAME)
27313COVER, ALTERNATOR FELT, INNER NO.2
27315COVER, ALTERNATOR FELT, INNER NO.1
27330ROTOR ASSY, ALTERNATOR
27330BRING, SNAP(FOR ALTERNATOR ROTOR)
27350FRAME ASSY, RECTIFIER END
27350BCONDENSER, ALTERNATOR
27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27352COVER, FRAME BRUSH
27357HOLDER, ALTERNATOR, W/RECTIFIER
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27410STATOR ASSY, ALTERNATOR
27411PULLEY, ALTERNATOR
27441FAN, ALTERNATOR
27700AREGULATOR ASSY, GENERATOR
2737845020INSULATOR, ALTERNATOR, NO.1
main27378-45020
2737854010INSULATOR, ALTERNATOR, NO.1
main27378-54010
2738354010WASHER, ALTERNATER TERMINAL INSULATOR, NO.1
main27383-54010
2738745090INSULATOR, TERMINAL
main27387-45090
2738754010INSULATOR, TERMINAL
main27387-54010
2738756070INSULATOR, TERMINAL
main27387-56070
9004179064
main90041-79064
9009220604
main90092-20604
9009900893
main90099-00893
9009902208
main90099-02208
9009904322
main90099-04322
9009904948
main90099-04948
9009905118
main90099-05118
9009905119
main90099-05119
9009905185
main90099-05185
9009914055
main90099-14055
9010510041
main90105-10041
9011908344
main90119-08344
9017906158
main90179-06158
9165140616
main91651-40616
9331515012
main93315-15012
45 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota DYNA
This section contains 45 genuine Toyota parts for the ALTERNATOR system of the Toyota DYNA. Key components include: ALTERNATOR ASSY, TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR, PLATE, BEARING RETAINER, ALTERNATOR, RING, SPACE(FOR ALTERNATOR ROTOR), FRAME ASSY, DRIVE END, ALTERNATOR.
