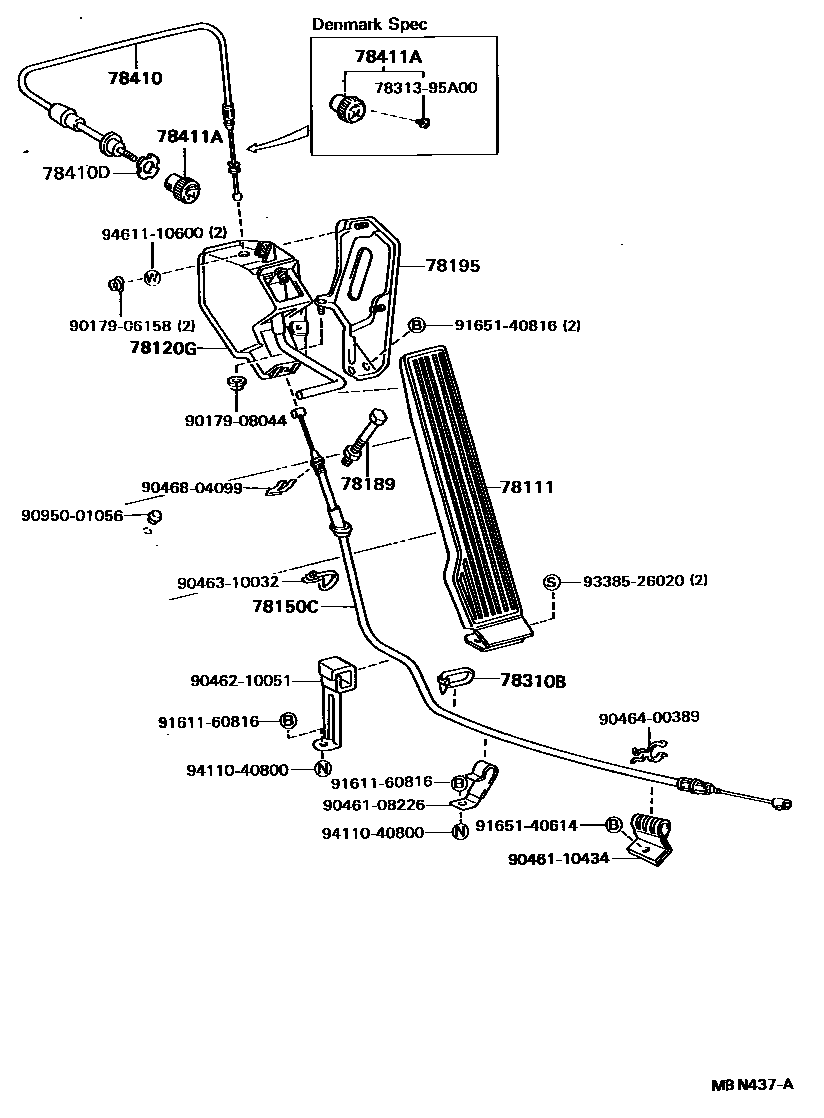

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78010-95400iBU75,85198708-198808

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95401iBU75,85198708-198808

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-95469iBU85198708-198808

main78150-95474iBU75198708-198808

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95406iBU75,85198708-198808

78195BRACKET, ACCELERATOR LINK

main78195-95401iBU75,85198708-198808

78310BCLAMP, CHOKE CABLE

main82711-12200iBU75198708-198808

78410CABLE ASSY, THROTTLE CONTROL

main78404-95012iBU75,85198708-198808

main78404-95403iBU75,85198708-198808

DENMARK SPEC

78410DNUT, THROTTLE

main78314-95010iBU75,85198708-198808

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iBU75,85198708-198808

main78411-95J00iBU75,85198708-198808

DENMARK SPEC

7831395A00SCREW

main78313-95A00

9017906158

main90179-06158

9017908044

main90179-08044

9046108226

main90461-08226

9046110434

main90461-10434

9046210051

main90462-10051

9046310032

main90463-10032

9046400389

main90464-00389

9046804099

main90468-04099

9095001056

main90950-01056

9161160816

main91611-60816

9165140614

main91651-40614

9165140816

main91651-40816

9338526020

main93385-26020

9411040800

main94110-40800

9461110600

main94611-10600

25 parts on this diagram · 2 diagrams in section
