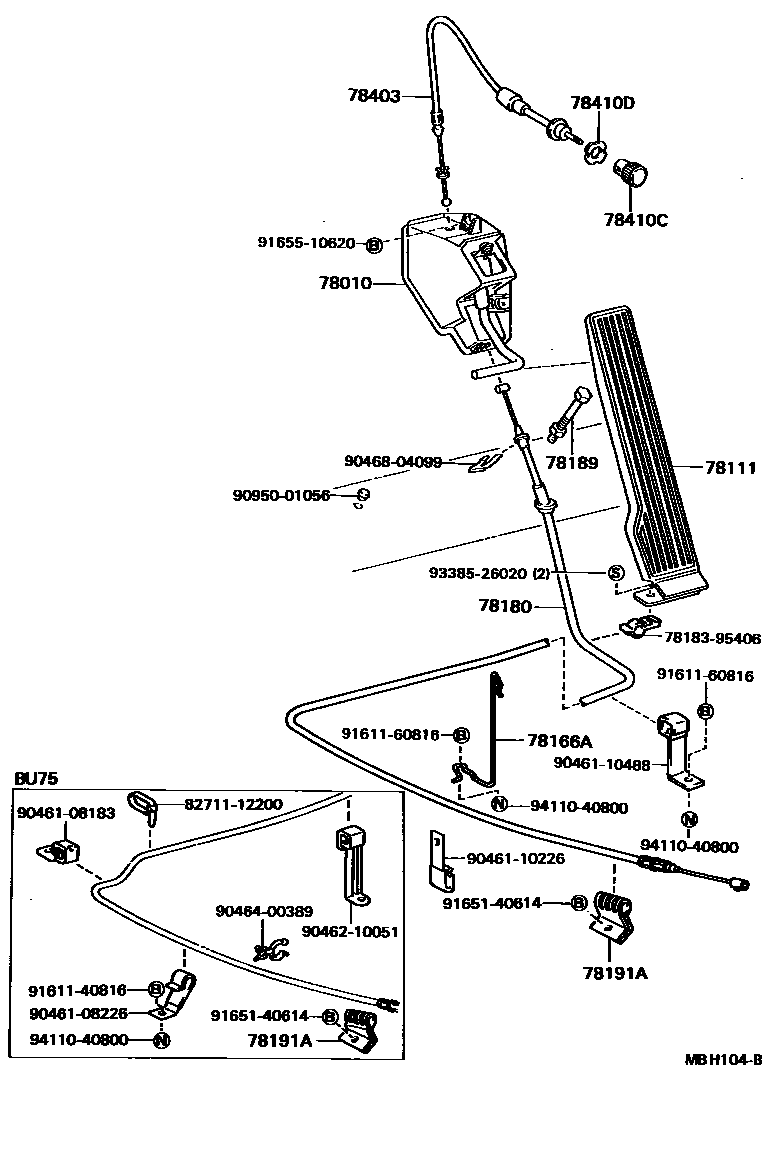

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78010LINK, ACCELERATOR

main78202-95400iBU6#,80,81,82..RHD198409-198708

main78202-95401iBU60,61,62,65,7#,80,81,85..LHD198409-198708

main78202-95402iBU75,76,85,86..RHD198409-198708

78111PEDAL, ACCELERATOR

main78010-95400iBU75,76,85..LHD198409-198708

main78110-95014iBU60,61,62,65,70,80,81..LHD198409-198708

main78110-95410iBU6#,75,76,8#..RHD198409-198708

78166ASPRING, CLAMP, NO.1

main78169-95407iBU60,63,80..RHD198409-198708

main78169-95408iBU61,62,65,81,82198409-198708

78180WIRE ASSY, ACCELERATOR

main78150-95460iBU60,63,80..RHD198409-198708

main78150-95462iBU61,65,81,82..RHD198409-198708

main78150-95463iBU60,70,80..LHD198409-198708

main78150-95466iBU61,62,65,81..LHD198409-198708

main78150-95467iBU76,85,86..RHD198501-198708

main78150-95469iBU76,85..LHD198409-198708

main78150-95473iBU75..RHD198409-198708

main78150-95474iBU75..LHD198409-198708

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95400iBU6#,75,76,8#..RHD198409-198708

sub78208-95406

main78208-95402iBU60,61,62,65,70,80,81..LHD198409-198708

main78208-95403iBU75,76,85..LHD198409-198708

sub78208-95406

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-08523iBU60,63,70,75,80198409-198708

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78404-95011iBU6#,75,76,8#..RHD198508-198708

sub78404-37020

main78404-95012iBU60,61,62,65,7#,80,81,85..LHD198508-198708

main78404-95400iBU60,61,63,75,76,8#..RHD198409-198508

main78404-95401iBU60,61,62,7#,80,81,85..LHD198409-198508

main78404-95402iBU75,85..EUR198504-198508

DENMARK SPEC

main78404-95403iBU75,85..EUR198508-198708

DENMARK SPEC

78410CKNOB, THROTTLE CABLE

main78411-22010iBU6#,7#,8#198409-198708

main78411-95J00iBU75,85..EUR198504-198708

DENMARK SPEC

78410DNUT, THROTTLE

main78314-95010iBU6#,7#,8#198508-198708

main78413-95J00iBU6#,7#,8#198409-198508

7818395406BRACKET, ACCELERATOR LINK ROD

main78183-95406

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046108183

main90461-08183

9046108226

main90461-08226

9046110226

main90461-10226

9046110488

main90461-10488

9046210051

main90462-10051

9046400389

main90464-00389

9046804099

main90468-04099

9095001056

main90950-01056

9161140816

main91611-40816

9161160816

main91611-60816

9165140614

main91651-40614

9165510620

main91655-10620

9338526020

main93385-26020

9411040800

main94110-40800

25 parts on this diagram · 4 diagrams in section
