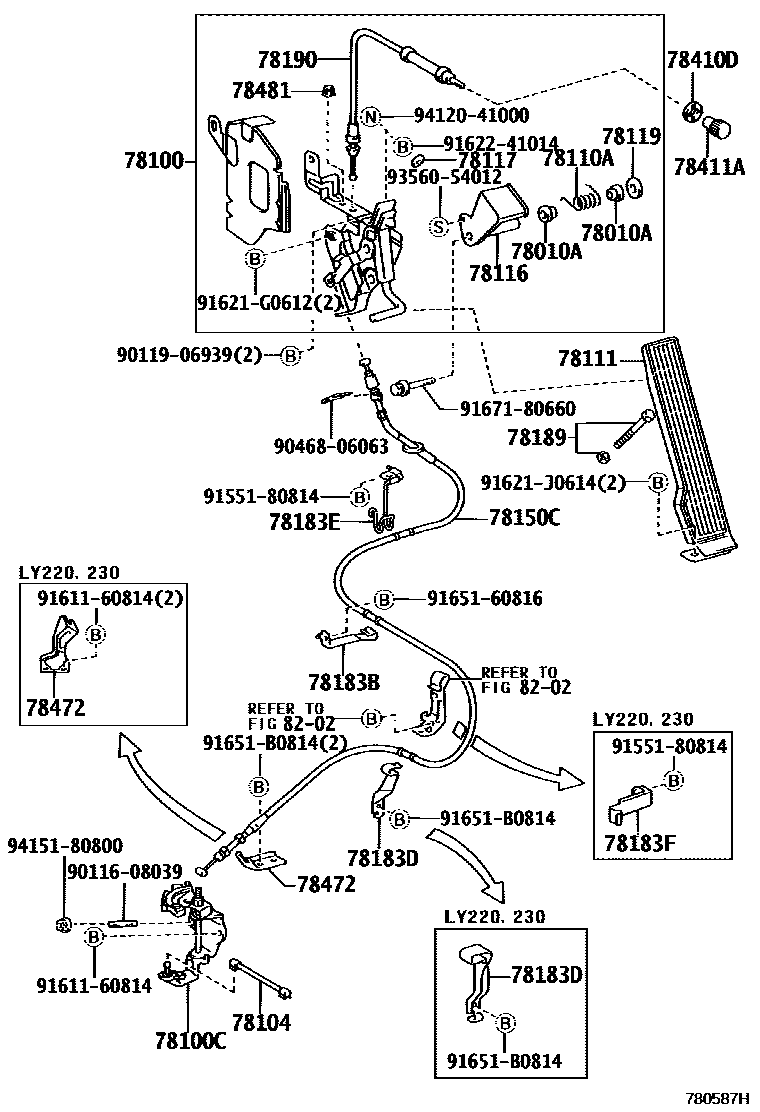

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

78010ABUSH (FOR ACCELERATOR LINK)

main90386-08065×2iLY22#,23#..ARL,GEN200107

78100LINK ASSY, ACCELERATOR

main78100-25160iKDY22#,23#,25#,26#..LHD200108-200907

main78100-25170iKDY221,231..GEN;KDY220,230,250..RHD200108-201310

main78100-25180iLY225,235..LHD200107-201610

main78100-25200iLY22#,23#..RHD200107-201610

main78100-25220iLY235..LHD201610

main78100-37770iLY230201610-202111

main78100-37820iKDY221,231,251,261..LHD200907-201502

sub78100-37821

78100CLINK ASSY, ACCELERATOR, NO.2

main78100-25011iLY225,235200107

main78100-26010iLY220,230200107-202111

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLY230..SA200107-202111

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03243iLY230201610-202111

main90959-03330iLY22#,23#200107-201610

78111PEDAL, ACCELERATOR

main78010-37010iKDY221,231,251,261..LHD200907

main78110-95410iKDY220,230,250,LY22#,23#..RHD200107-202111

main78111-16010iKDY22#,23#,25#,26#..LHD200108-200907

78116COVER, ACCELERATOR PEDAL ROD

main78116-37010iLY22#,23#..ARL,GEN200107

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06038iKDY220,230,250,260,LY22#,23#..ARL,EUR,GEN200107

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-37010iLY230201101-202111

main78119-95J00iLY22#,23#200107-201012

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-25170iLY225,235..RHD200107-200301

main78150-25171iLY225,235..RHD200301

main78150-25180iLY220,230200107-202111

main78150-25190iLY225,235..LHD200107

main78150-37481iKDY220,230,250..RHD200108-200201

main78150-37482iKDY221,231..GEN;KDY220,230,250..RHD200201-201310

main78150-37490iKDY22#,23#,25#,26#..LHD200108-200907

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-25070iLY230..SA200107-202111

main78183-26170iKDY221,231,251,261..EUR200108-200907

78183DCLAMP, ACCELERATOR CONTROL CABLE

main78183-95011iLY220,230200107-202111

main78183-95A12iLY225,235200107

78183ECLAMP, ACCELERATOR CONTROL CABLE

main78183-25080iLY230..SA200107-202111

78183FCLAMP, ACCELERATOR CONTROL CABLE

main78183-25090iLY220,230200107-202111

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-25010iLY225,235..LHD200107-200301

main78208-25011iLY225,235..LHD200301

main78208-25020iKDY221,231..GEN;KDY220,230,250..RHD200108-201310

main78208-37010iLY230..SA200107-202111

main78208-37100iKDY221,231,251,261..LHD200907-201502

sub78208-37170

78190CABLE ASSY, ACCEL CONTROL W/THROTTLE

main78190-25010iLY225,235..LHD200107-201610

main78190-37010iLY22#,23#..RHD200107-201610

main78190-37040iLY230201610-202111

main78190-37050iLY235..LHD201610

78410DNUT, THROTTLE

main78314-95010iLY22#,23#200107-202111

78411AKNOB, THROTTLE CONTROL CABLE

main78411-95J01iLY22#,23#200107-202111

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-25011iLY225,235200107

main78472-26020iLY220,230200107-202111

78481CLAMP, THROTTLE WIRE

main78481-37010iLY230..SA200107-202111

8202

9011608039

main90116-08039

9011906939

main90119-06939

9046806063

main90468-06063

9155180814

main91551-80814

9161160814

main91611-60814

91621G0612

main91621-G0612

91621J0614

main91621-J0614

9162241014

main91622-41014

9165160816

main91651-60816

91651B0814

main91651-B0814

9167180660

main91671-80660

9356054012

main93560-54012

9412041000

main94120-41000

9415180800

main94151-80800

35 parts on this diagram · 6 diagrams in section
