Toyota DYNA/TOYOACE — WATER PUMP

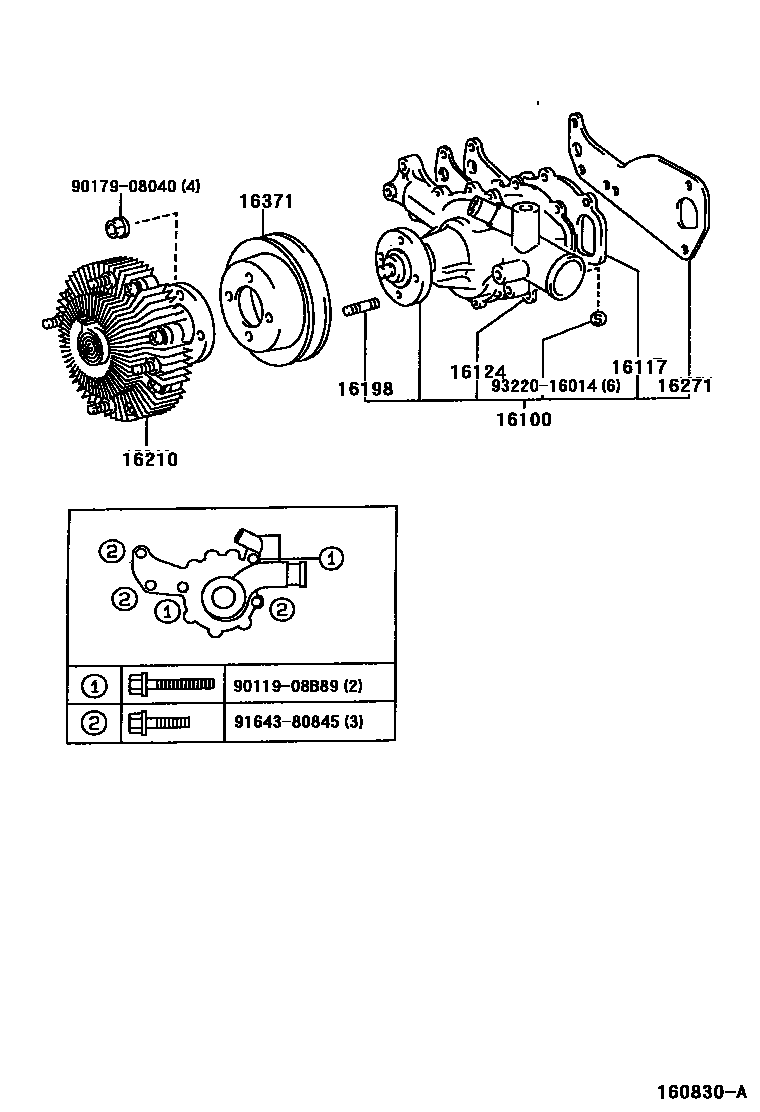

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-59166i200406

main16100-59295i199908-200406

main16100-78030i199905-200011

main16100-78041i199908-200406

main16100-78050i200011-200206

main16100-78080i200406-200511

main16100-78090i200406-200610

main16100-78110i200511-200705

main16100-78111i200903-200907

main16100-78112i200907-201011

main16100-78170i201011

16117PLATE, WATER PUMP

main16117-58010i200011-200306

main16117-58090i199908-200406

16124GASKET, WATER PUMP COVER

main16124-58010i200011-200306

main16124-58090i199908-200406

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170×4i200011-200306

16210COUPLING ASSY, FLUID

main16210-58030i200406

main16210-58060i199908-200406

main16250-78040i199905-200011

main16250-78050i199905-200011

main16250-78070i199908-200011

main16250-78071i200011-200012

main16250-78072i200012-200406

main16250-78080i200112-200206

main16250-78090i200011-200112

main16250-78110i200406-200705

main16250-78111i200805

main16250-78160i200406-200610

main16250-78170i200406-200512

main16250-78230i200512-200610

16271GASKET, WATER PUMP

main16271-58010i200406

16371PULLEY, FAN

main16308-78010i199908-200406

main16308-78020i199905-200206

main16308-78030i200610

main16308-78040i200406-200610

main16371-58070i200406

main16371-58090i199908-200406

9011908B89

main90119-08B89

9017908040

main90179-08040

9164380845

main91643-80845

9322016014

main93220-16014

11 parts on this diagram · 5 diagrams in section

WATER PUMP for Toyota DYNA/TOYOACE

This section contains 30 genuine Toyota parts for the WATER PUMP system of the Toyota DYNA/TOYOACE. Key components include: PUMP ASSY, ENGINE WATER, RING, O(FOR WATER PUMP), BEARING & SHAFT SUB-ASSY, WATER PUMP, PLATE, WATER PUMP, GASKET, WATER PUMP COVER.
