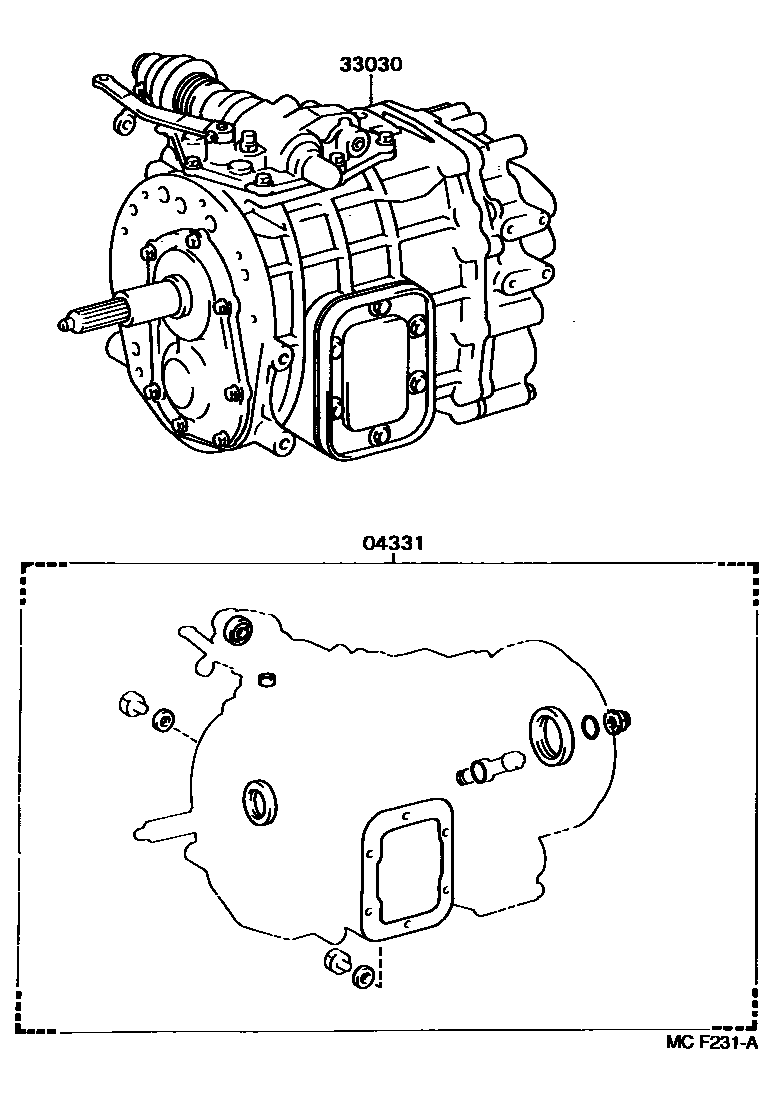

Toyota DYNA/TOYOACE — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36060iBU66..IV4198808-199505

main04331-36070iBU6#,7#,8#,9#..5F..(CBU,IV3)198808-199001

main04331-36071iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F199001-199505

33030TRANSMISSION UNIT ASSY, MANUAL

main33110-37050iBU68..LPG199311-199505

main33110-3E620iBU60,61,70..ST198808-198910

main33110-3E621iBU60,61,70..ST198910-199001

main33110-3E622iBU60,61,70..ST199001-199210

main33110-3E630iBU60,61,70..ST198808-198910

main33110-3E631iBU68198910-199001

main33110-3E632iBU68199001-199210

main33110-3E640iBU60,61,83,84..WT198808-198910

main33110-3E650iBU68198910-198912

main33110-3E650iBU60,61,83,84..WT198808-198912

main33110-3E651iBU60,61,83,84..WT198912-199001

main33110-3E651iBU68198912-199001

main33110-3E652iBU68199001-199210

main33110-3E652iBU68199001-199210

main33110-3E660iBU66,67..(DM1,DM2,DM4)..5F198808-198910

main33110-3E661iBU66,67..(DM1,DM2,DM4,DM5)..5F198910-199001

main33110-3E662iBU66..DM2,DM5;BU67..DMP..5F199001-199210

main33110-3E740iBU85,90,95198808-198910

main33110-3E760iBU87..V;BU66,67,87..TR..5F..20T198808-198910

main33110-3E761iBU87..V;BU66,67,87..TR..5F..20T198910-199001

main33110-3E762iBU87..V;BU66,67,87..TR..5F..(175,20T)199001-199210

main33110-3E770iBU66,87..5F..(275,30T)198808-198910

main33110-3E771iBU66,87..5F..(275,30T)198910-199001

main33110-3E772iBU66,87..5F..(275,30T)199001-199210

main33110-3E780iBU66..T3..5F..WT..20T198808-198910

main33110-3E781iBU87..T3..20T198910-199001

main33110-3E781iBU66..T3..5F..WT..20T198910-199001

main33110-3E782iBU66..DM1,DM3199001-199210

main33110-3E782iBU66..DM1,DM3199001-199210

main33110-3E800iBU88,91,94,96..5F..(275,30T,35T)198808-198910

main33110-3E800iBU88,91,94,96..5F..(275,30T,35T)198808-198910

main33110-3E801iBU91..T3..DSL198910-199001

main33110-3E801iBU94..T4;BU78,91,96..5F..DSL;BU88,94..5F..(275,30T)..DSL198910-199001

main33110-3E802iBU96..5F..DSL199001-199210

main33110-3E802iBU78,91,96..5F..DSL;BU88,94..T4..5F..DSL;BU88,94..T3..(275,30T)..DSL199001-199210

*AXC=Q194

main33110-3E810iBU88..5F..20T198808-198910

main33110-3E811iBU88..T2..5F..IV3198910-199001

main33110-3E812iBU9#..5F..TD;BU88..30T..TD;BU88..(T2,T3,TW1)..5F..20T199001-199210

main33110-3E820iBU91,96..T3..5F198808-198910

main33110-3E821iBU91,96..T3..5F..DSL198910-199001

main33110-3E822iBU91,96..T3..5F..DSL199001-199210

main33110-3E840iBU66..IV4198808-199505

sub33020-36020

main33110-3J080iBU87..V;BU66,67,87..TR..5F..(175,20T)199210-199309

main33110-3J081iBU87..V;BU66,67,87..TR..5F..(175,20T)199309-199505

main33110-3J090iBU66,87..5F..(275,30T)199210-199309

main33110-3J091iBU66,87..5F..(275,30T)199309-199505

main33110-3J100iBU66..DM1,DM3199210-199309

main33110-3J100iBU66..T3..5F..WT..20T199210-199309

main33110-3J101iBU66..T3..5F..WT..20T199309-199505

main33110-3J101iBU66..DM1,DM3199309-199505

main33110-3J110iBU87..5F..(275,30T)..IV3199210-199309

main33110-3J111iBU87..5F..(275,30T)..IV3199309-199505

main33110-3J120iBU94..T3..20T199210-199309

main33110-3J121iBU94..T3..20T199309-199505

main33110-3J130iBU88..T2..5F..IV3199210-199309

main33110-3J131iBU88..T2..5F..IV3199309-199505

main33110-3J160iBU88..T4..5F;BU78,9#..5F..DSL;BU88..T3..(275,30T)..DSL199210-199309

main33110-3J161iBU88..T4..5F;BU78,9#..5F..DSL;BU88..T3..(275,30T)..DSL199309-199505

main33110-3J170iBU88..T2..5F..IV3199210-199309

main33110-3J171iBU9#..5F..TD;BU88..30T..TD;BU88..(T2,T3,TW1)..5F..20T199309-199505

main33110-3J190iBU91,96..T3..5F..DSL199210-199309

main33110-3J191iBU91,96..T3..5F..DSL199309-199505

main33110-3J200iBU96..5F..TD..IV3199210-199309

main33110-3J201iBU96..5F..TD..IV3199309-199505

main33110-3J210iBU72..DMP..CBU199210-199309

main33110-3J211iBU72,73,74..TR..03S199309-199505

main33110-3J220iBU72..IV3;BU73,74..03S;BU72..T4..CBU199210-199309

main33110-3J221iBU74..30T199309-199505

main33110-3J240iBU73..06S..20T199210-199309

main33110-3J241iBU73..06S..20T199309-199505

main33110-3J250iBU73..IV4199210-199309

main33110-3J251iBU73..IV4199309-199505

main33110-3J330iBU60,61,84..WT199309-199505

main33110-3J340iBU68..DSL199309-199505

main33110-3J340iBU60,61,84..WT199309-199505

main33120-3E170iBU94..20T198808-198910

main33120-3E171iBU94..T3..20T198910-199001

main33120-3E172iBU94..T3..20T199001-199210

*AXC=Q264

main33120-3E210iBU87..5F..275..IV3198811-198910

main33120-3E211iBU87..5F..275..IV3198910-199001

main33120-3E212iBU87..5F..275..IV3199001-199210

main33120-3E230iBU72..DMP..IV3198910-199210

main33120-3E270iBU60,61,83,84..WT198910-199001

main33120-3E271iBU60,61,83,84..WT199001-199210

main33120-3E280iBU88..T2..5F..IV3198910-199001

main33120-3E281iBU88..T2..5F..IV3199001-199210

main33120-3E300iBU74198910-199109

main33120-3E300iBU72,74..TR;BU72..DMP..IV3198910-199210

main33120-3E330iBU96..TD..IV3198910-199001

main33120-3E331iBU96..5F..TD..IV3199001-199210

main33120-3E350iBU73..IV4199005-199203

main33120-3E351iBU73..IV4199203-199210

main33120-3E370iBU73..20T199109-199204

main33120-3E380iBU73..20T199109-199210

main33120-3E720iBU60,61,70..ST199210-199309

main33120-3E721iBU60,61,70..ST199309-199505

main33120-3E730iBU60,61,70..ST199210-199505

main33120-3E730iBU68199210-199309

main33120-3E731iBU68..DSL199309-199505

main33120-3E740iBU60,61,83,84..WT199210-199309

main33120-3E750iBU60,61,83,84..WT199210-199309

main33120-3E750iBU68199210-199309

main33120-3E840iBU66..DM2,DM5;BU67..DMP..5F199210-199309

main33120-3E841iBU66..DM2,DM5;BU67..DMP..5F199309-199505

2 parts on this diagram · 2 diagrams in section
