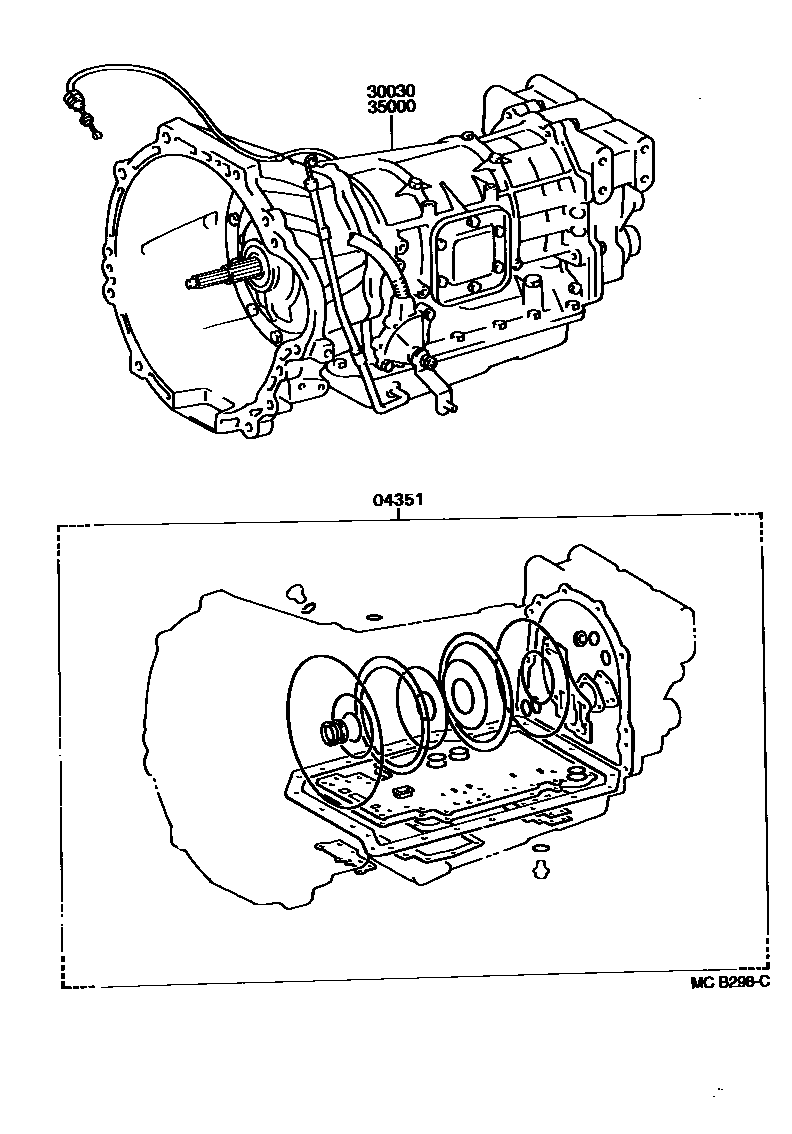

Toyota DYNA/TOYOACE — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-36010iBU66,67,87,88,96..4FC198808-199505

30030TRANSMISSION ASSY, REBUILT

main30030-36150iBU66..T3..4FC..WT198808-199505

main30030-36150iBU66..T3..4FC..WT198808-199505

main30030-36160iBU88..4FC..20T198808-199505

main30030-36180iBU66..4FC..ST198808-199505

*AXC=L154

sub30030-36230

main30030-36230iBU66..4FC..ST198808-199505

main30030-36240iBU96..4FC..DSL198808-199505

main30030-36320iBU96..4FC..TD199001-199505

main30030-36330iBU88..T2..4FC..IV3198910-199505

sub30030-36160

main30030-36340iBU88..T2..4FC..IV3198910-199505

sub30030-36160

35000TRANSMISSION ASSY, AUTOMATIC

main35000-36150iBU66..4FC..ST198808-199505

*AXC=L404

main35000-36160iBU66,87..4FC..WT..20T198808-199505

main35000-36170iBU87..4FC..275;BU88..4FC..20T198808-199505

main35000-36180iBU66..4FC..ST198808-199505

*AXC=L154

main35000-36190iBU88..4FC..30T198808-199505

main35000-36200iBU66..4FC..ST198808-199505

main35000-36200iBU66..4FC..ST198808-199505

main35000-36210iBU66,87..4FC..WT..20T198808-199505

main35000-36220iBU88..4FC..20T198808-199505

main35000-36230iBU66..4FC..ST198808-199505

main35000-36240iBU96..4FC..DSL198808-199505

main35000-36250iBU88..4FC..30T198808-199505

main35000-36320iBU96..4FC..TD199001-199505

main35000-36330iBU88..T2..4FC..IV3198910-199505

main35000-36340iBU88..T2..4FC..IV3198910-199505

3 parts on this diagram · 1 diagram in section
