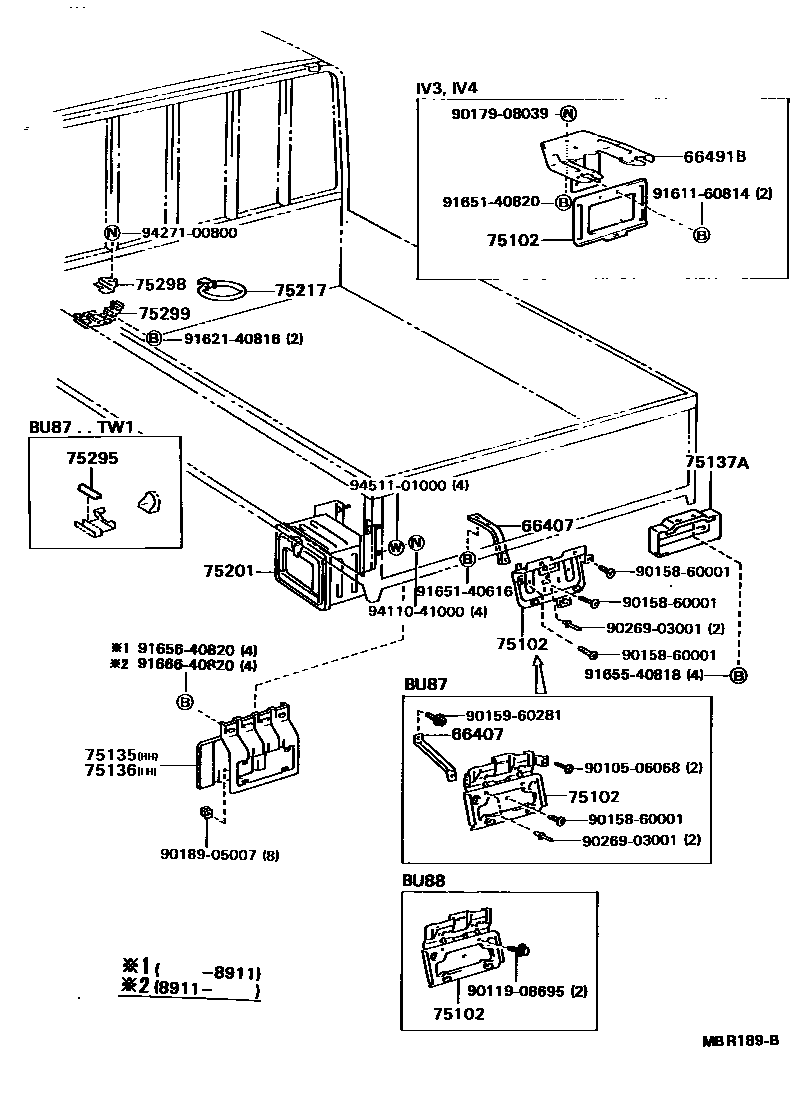

Toyota DYNA/TOYOACE — TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66407-95011iBU60..(T1,TW1)..CBU198808-199505

main66493-37010iBU73..06S..CBU199109-199505

main66493-37020iBU73..03S..CBU199210-199404

sub66493-92203

main66493-92203iBU73..03S..CBU199404-199505

main66493-92701iBU60,61,66..T3..CBU;BU67,83,84,87..(T3,T4,TW1)..CBU198808-199505

main66493-92702iBU60,61,66..(T2,T4,TW2,TW4)..CBU198808-199505

main66493-92708iBU67..T3..CBU;BU60,66..T3..5F..ST..CBU198808-199505

main66493-92709iBU61..T2..CBU;BU60,66..(T2,T4)..5F..CBU198808-199505

main66493-92710iBU72..T4..CBU198910-199404

sub66493-92701

main66493-92711iBU72..T3..CBU198910-199210

main66493-92805iBU84,87..T2..CBU;BU88..(T2,T4)..CBU198808-199505

main66493-92806iBU90,91..T4..CBU198808-199505

main66493-92807iBU74..CBU198910-199309

main66493-92808iBU78..CBU198910-199505

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iBU66..4FC..IV3;BU72..DMP..CBU;BU60..T3..ST..CBU;BU60..(T2,T4)..CBU;BU61..(T3,T4)..IV3;BU66..5F..(20T,IV4);BU87..(T3,TW1)..IV3;BU60,68,72,74,78..IV3;BU66..(175,275,3198808-199505

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92702iBU60,61,66..(T2,T4,TW2,TW4)..CBU198808-199505

main66490-92703iBU72..T4..CBU;BU60..T3..WT..CBU;BU67,73,78..TR..03S..CBU198808-199505

main66490-92704iBU66..T3..CBU;BU60,61..T3..ST..CBU198808-199505

main66490-92706iBU73..06S..CBU198910-199505

main66490-95018iBU60..(T1,TW1)..CBU198808-199505

main75102-25020iBU66..DM1198808-199505

main75102-25020iBU61..T2..CBU;BU60..T3..ST..CBU;BU60..(T2,T4)..CBU;BU66..(T2,T3)..5F..20T..CBU198808-199505

main75102-92605iBU70198808-199505

main75102-92800iBU66,72..DM3;BU88..T3,TW1;BU90,91..IV3;BU85,94,95,96;BU67,87..DMP,V;BU90,91..T3..CBU;BU83,84,87,88..(T2,T4)..IV3198808-199505

main75102-92800iBU88..T4..5F..20T..CBU199109-199505

main75102-92801iBU83,84,87..CBU;BU88,90,91..(T2,T4)..CBU198808-199505

main75102-93100iBU66,72..(DM2,DM4,DM5)..CBU198808-199505

75135BRACKET, COMBINATION REAR LAMP, RH

main58378-92701iBU60..T3..ST..CBU;BU60..(T2,T4)..CBU;BU66..TR..5F..20T..CBU;BU61,67..(T2,T3)..WT..CBU198808-199505

sub58378-37020

main75105-92700iBU87..(T2,T4)..CBU;BU72,73..(T4,TW1)..CBU;BU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,66,67,78,83,84,85,88,9#..TR..CBU198808-199505

sub75105-37030

main75105-92701iBU72,73..T3..CBU198910-199505

sub58378-37020

main75105-92802iBU74,87..(T3,TW1)..CBU198808-199505

main75105-93100iBU67..DMP..CBU198808-199505

main75105-93101iBU66..DMP..CBU198808-199505

main75105-93102iBU72..DMP..CBU198910-199505

75136BRACKET, COMBINATION REAR LAMP, LH

main58378-92701iBU60,66..T3..5F..ST..CBU198808-199505

sub58378-37020

main75105-92700iBU60..WT..175..CBU;BU87..(T2,T4)..CBU;BU60,61..T3..ST..CBU;BU66,72..(T3,TW4)..CBU;BU73,78,83,84,85,88,9#..CBU198808-199505

sub75105-37030

main75106-92802iBU74,87..(T3,TW1)..CBU198808-199505

main75106-93100iBU67..DMP..CBU198808-199505

main75106-93101iBU66..DMP..CBU198808-199505

main75106-93102iBU72..DMP..CBU198910-199505

75137ACOVER COMBINATION

main75137-93100iBU66,67,72..DMP..CBU198808-199505

main75137-95400iBU60..(T1,TW1)..CBU198808-199505

75201BOX SUB-ASSY, TOOL W/STAY

main75021-93102iBU67..DMP198808-199505

main75021-93103iBU66..DM2,DM5198808-199505

main75021-93107iBU72..DMP198910-199505

main75021-93109iBU67..DM1199008-199505

main75021-93301iBU66..DM3198808-199505

main75210-37020iBU84,87..T2199109-199505

main75210-92704iBU66..275,30T;BU60,61,66..ST..20T198808-199505

main75210-92705iBU60,61,66..T2,T4198808-199505

main75210-92706iBU60,66,68..(DM1,T3)..WT..20T198808-199505

main75210-92708iBU67..T3198808-199505

sub75210-37070

main75210-92710iBU73..03S;BU72..DYN..T3;BU72..TOY..T3..CBU;BU72..DYN..T4..IV3;BU72..TOY..TR..20T..IV3198910-199505

main75210-92711iBU72..T4198910-199505

main75210-92804iBU87..V;BU84,87..T3,T4;BU74,83,88,9#..03S198808-199505

main75210-92805iBU78198910-199505

75217BAND, TOOL BAG

main58705-92600iBU70..03S,06S198808-199505

main58705-92601iBU66..IV4;BU70..09S198808-199505

main58705-95A01iBU73;BU6#,72,74,78,8#,9#..CBU,IV3198808-199505

75295PROTECTOR, JACK SUPPORT

main75295-95400iBU87..06S198808-199505

sub58426-95405

75298PLATE, JACK HOLDER

main75298-95400iBU87..03S;BU6#,7#,83,84,85,88,94..DM1,DM2,DM3,DM4,DM5,HRF,SRF,T1,T2,T3,T4198808-199505

main75298-95401iBU90,91,95,96198808-199505

75299BASE, JACK HOLDER

main75209-95405iBU90,91,95,96198808-199505

main75299-92600iBU70..09S198808-199309

sub75299-95401

main75299-95400iBU87..V;BU60,66,67,68,87..(DM1,DM3,DM4,T3)..WT198808-199505

main75299-95401iBU88..T2;BU60,66..T3..ST;BU61,72,73,74,83,84..03S;BU60,66,87..DM2,DM5,T1,T2,T4198808-199505

sub75299-37060

main75299-95402iBU78,85,88,94..T3,T4198808-199505

9010506068

main90105-06068

9011908695

main90119-08695

9015860001

main90158-60001

9015960281

main90159-60281

9017908039

main90179-08039

9018905007

main90189-05007

9026903001

main90269-03001

9161160814

main91611-60814

9162140816

main91621-40816

9165140616

main91651-40616

9165140820

main91651-40820

9165540818

main91655-40818

9165640820

main91656-40820

9166640820

main91666-40820

9411041000

main94110-41000

9427100800

main94271-00800

9451101000

main94511-01000

28 parts on this diagram · 7 diagrams in section
