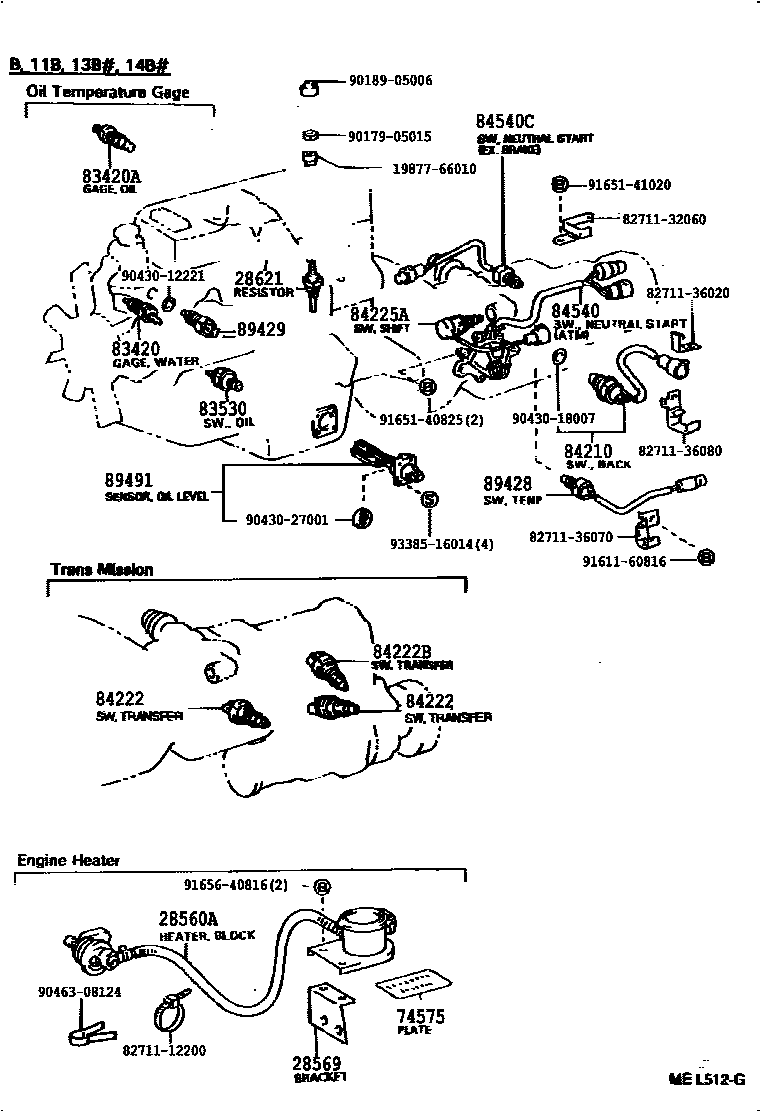

Toyota DYNA/TOYOACE — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

28560ABLOCK, HEATER

main28560-92600i14B..BU66..IV4198808-199505

main28560-92601i14B..BU73..IV4199005-199505

sub28560-58030

28569BRACKET, BLOCK HEATER

main28569-92600i14B..BU73..IV4199005-199505

28621RESISTOR, GLOW PLUG

main28621-57011iB,3B..BU60,68,70,83198808-199505

74575PLATE, BLOCK HEATER

main74575-92600iBU73..IV4198808-199505

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBU6#,7#,8#,9#..DSL,TD199309-199505

main83420-20020iBU6#,70,8#,9#198808-199309

main83420-20020iBU6#,70,8#,9#198811-198910

main83420-20030iBU6#,7#,8#,9#..DSL,TD199309-199505

sub83420-16040

main83420-20040iBU68..LPG199311-199505

83420AGAGE ASSY, OIL TEMPERATURE SENDER

main83420-36010iBU66,73..IV4198808-199505

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iBU6#,7#,8#,9#198808-199309

sub83530-28030

main83530-14070iBU68..DSL199309-199505

sub83530-28010

main83530-30090iBU68..LPG199311-199505

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F199309-199505

main84210-36010iBU66..IV4198808-199505

main84210-60021iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F198808-199309

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iBU72,73,74198910-199505

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60080iBU72,73,74198910-199505

sub84222-60081

84225ASWITCH, SHIFT POSITION

main84225-36010iBU87..V;BU88..30T..TD;BU67,72,73,74..5F;BU91,94,96..5F..TD;BU66,87..5F..(175,20T);BU88..(T2,T3,TW1)..5F..20T198808-199505

84540SWITCH ASSY, NEUTRAL START

main84540-36030iBU66,67,87,88,96..4FC198808-199505

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36040iBU66..IV4198808-199505

main84540-36050iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)198808-199505

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36010iBU66,67,87,88,96..4FC198808-199505

89429SENSOR, OIL TEMPERATURE

main89422-20010iBU6#,7#,83,84,87,88,91,94,96..DSL,TD198808-199505

main89422-30020iBU85,90,95198808-198910

sub89422-12010

89491SENSOR, ENGINE OIL LEVEL

main89491-36040iBU66,67,68,72,73,74,78,87,88,9#..DSL,TD198910-199505

main89491-36050iBU60,61,70,83,84198910-199505

1987766010

main19877-66010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271132060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32060

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

9017905015

main90179-05015

9018905006

main90189-05006

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9046308124

main90463-08124

9161160816

main91611-60816

9165140825

main91651-40825

9165141020

main91651-41020

9165640816

main91656-40816

9338516014

main93385-16014

33 parts on this diagram · 13 diagrams in section
