Toyota DYNA/TOYOACE — ROOF PANEL & BACK PANEL

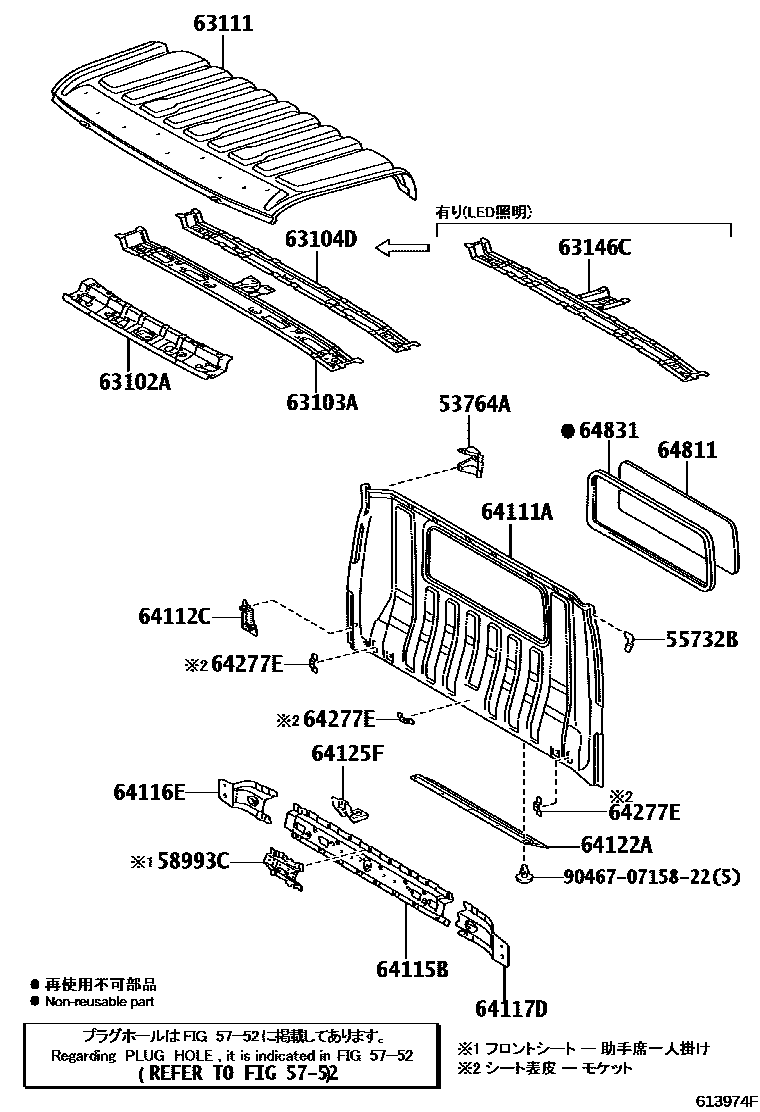

Parts diagram

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-37100i201107-201505

main53764-37120i202103

55732BBRACKET, FRONT PANEL, NO.2

main55732-37060×2i201905

5752HOLE PLUG

→ Go to FIG 57-52

58993CBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-37060i202310

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-37080i201705-201905

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-37070i201905

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-37060i201107-201505

63111PANEL, ROOF

main63111-37260i202103

main63111-37280i202103

main63111-37270i201705-201905

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-37010i201705-201905

64111APANEL, BACK

main64111-37570i202103

main64111-37580i202103

64112CPANEL, UPPER BACK, INNER

main64112-37030i201107-201111

main64112-37031i201112-201604

main64112-37040i201605-201705

64115BREINFORCEMENT, BACK PANEL

main64115-37210i202310

main64115-37220i201108-201407

main64115-37221i201408-201705

64116EREINFORCEMENT, UPPER BACK, RH

main64116-37040i202103

64117DREINFORCEMENT, UPPER BACK, LH

main64117-37070i201107-201505

64122ABAFFLE, DUST REAR BODY

main64122-25020i202103

main64122-37200i201705-201905

64125FBRACKET, UPPER BACK PANEL

main64125-37030i202310

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010×3i201107-201505

64811GLASS, BACK WINDOW

main64811-37180supersedes 64811-37230i202001

main64811-37190supersedes 64811-37240i201905-201912

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37070i202103

main64831-37080i201108-201705

904670715822

main90467-0715822

20 parts on this diagram · 5 diagrams in section

ROOF PANEL & BACK PANEL for Toyota DYNA/TOYOACE

This section contains 64 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota DYNA/TOYOACE. Key components include: BRACKET, AIR CLEANER INLET, NO.1, BRACKET, FRONT PANEL, NO.2, HOLE PLUG, BRACKET, CONSOLE BOX MOUNTING, REAR, PANEL SUB-ASSY, WINDSHIELD HEADER.
