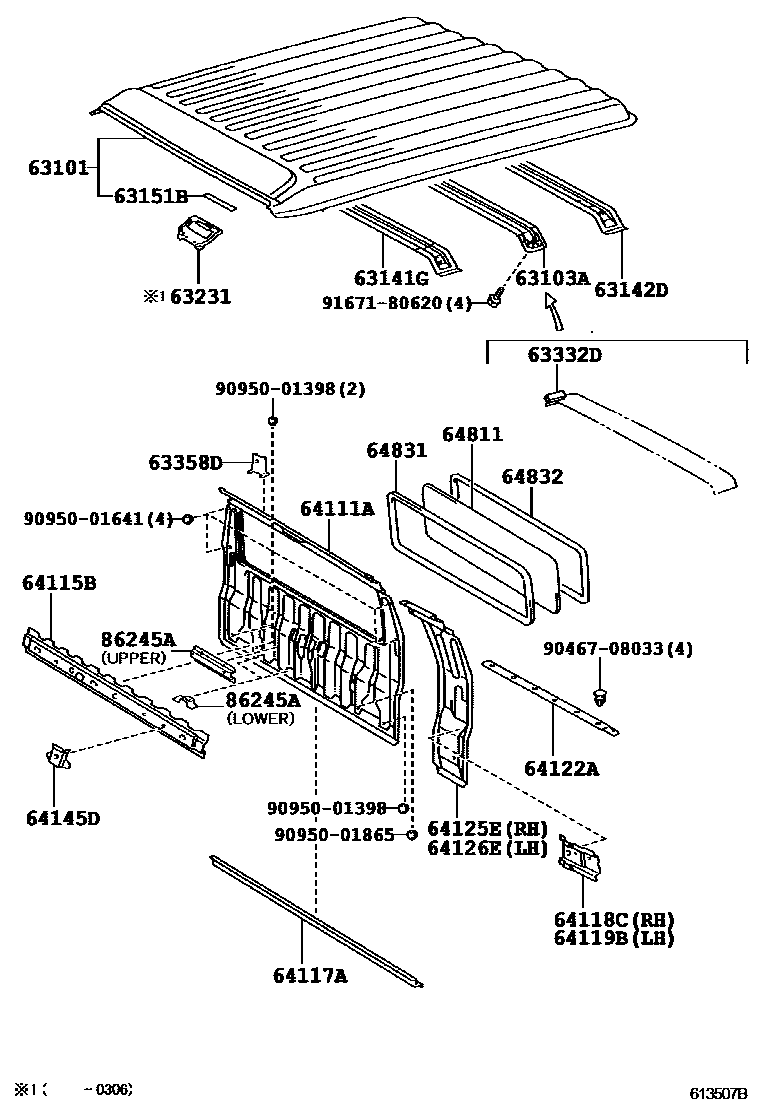

Toyota DYNA/TOYOACE — ROOF PANEL & BACK PANEL
63101PANEL SUB-ASSY, ROOF
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63141GREINFORCEMENT, ROOF PANEL, NO.1
63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63151BSEAL, ROOF PANEL REINFORCEMENT
63231BRACKET, ROOM LAMP
main63231-37010iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
63332DPAD, SUN ROOF HEADLINING
63358DBRACKET, ROOF SILENCER, REAR
64111APANEL, BACK
64115BREINFORCEMENT, BACK PANEL
64117AREINFORCEMENT, CAB BACK, LOWER
64118CREINFORCEMENT, CAB BACK SIDE, RH
64119BREINFORCEMENT, CAB BACK SIDE, LH
64122ABAFFLE, DUST REAR BODY
64125EEXTENSION, BACK CORNER PANEL, RH
64126EEXTENSION, BACK CORNER PANEL, LH
64145DBRACKET, REAR SEATBACK SET
64811GLASS, BACK WINDOW
main64811-37160iBU400,410,420,430,XZU382,40#,41#,42#,430..SCB..(DSL,DSLL,TDEFI)..(CBU,IV3,IV5)199905-200206
64831WEATHERSTRIP, BACK WINDOW GLASS
64832KEY, BACK WINDOW WEATHERSTRIP
86245ABRACKET, VOLTAGE CONVERTER
9046708033
main90467-08033
9095001398
main90950-01398
9095001641
main90950-01641
9095001865
main90950-01865
9167180620
main91671-80620
26 parts on this diagram · 4 diagrams in section
