Toyota DYNA/TOYOACE — REFLEX REFLECTOR
81910REFLECTOR ASSY, REFLEX, RH
81910DREFLECTOR ASSY, REFLEX, REAR
main81910-25040×2iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,TRY231,281..T4..TB..CBU;TRY220,230..(T2,T3,T4,TW2,TW3)..CBU;KDY221,231,271,281..(T2,T3,TW2,TW3,TW4)..CBU201206-201710
main81910-25041×2iTRY220..T2..ST..IV3;KDY221..TS..ATM..IV3;TRY220,230..(T2,T3,T4,TW2)..CBU;KDY221,231,TRY231,281..T4..TB..CBU;KDY221,231,271,281..(T2,T3,TW2,TW3,TW4)..CBU201710
81920REFLECTOR ASSY, REFLEX, LH
9017905004
main90179-05004
9017905088
main90179-05088
9026905010
main90269-05010
9046705090C1
main90467-05090C1
SZ95039010
mainSZ950-39010

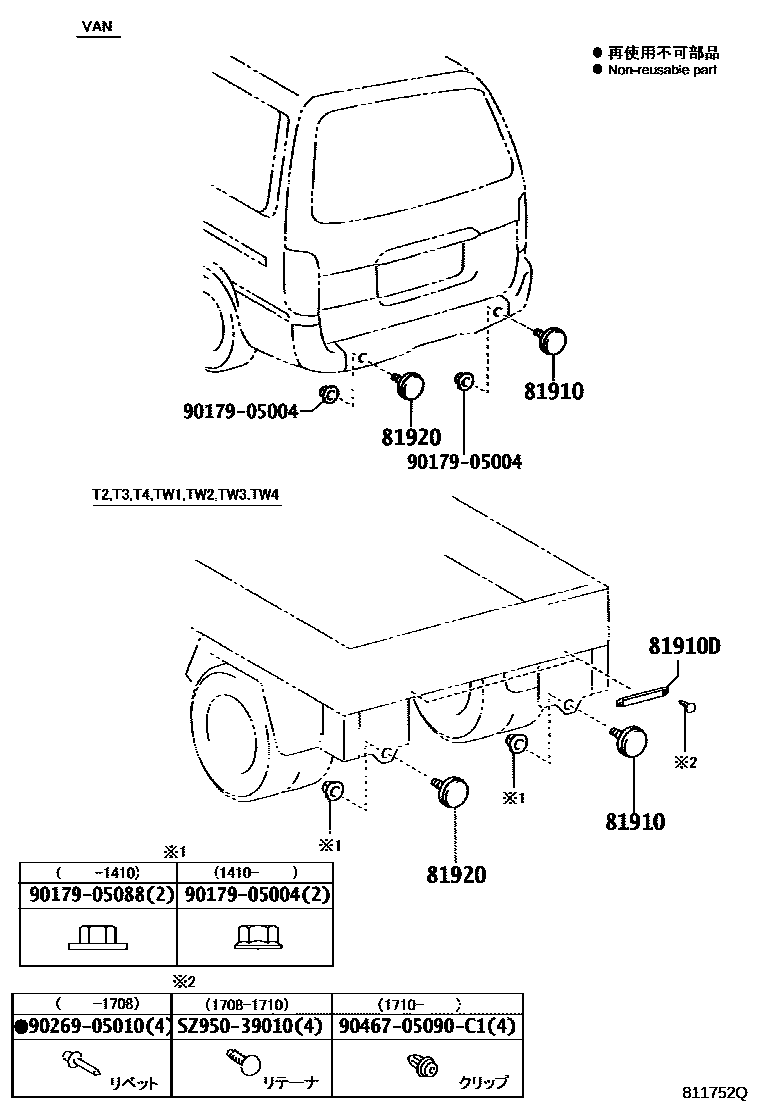

8 parts on this diagram · 1 diagram in section
REFLEX REFLECTOR for Toyota DYNA/TOYOACE
This section contains 8 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota DYNA/TOYOACE. Key components include: REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, REAR, REFLECTOR ASSY, REFLEX, LH.
