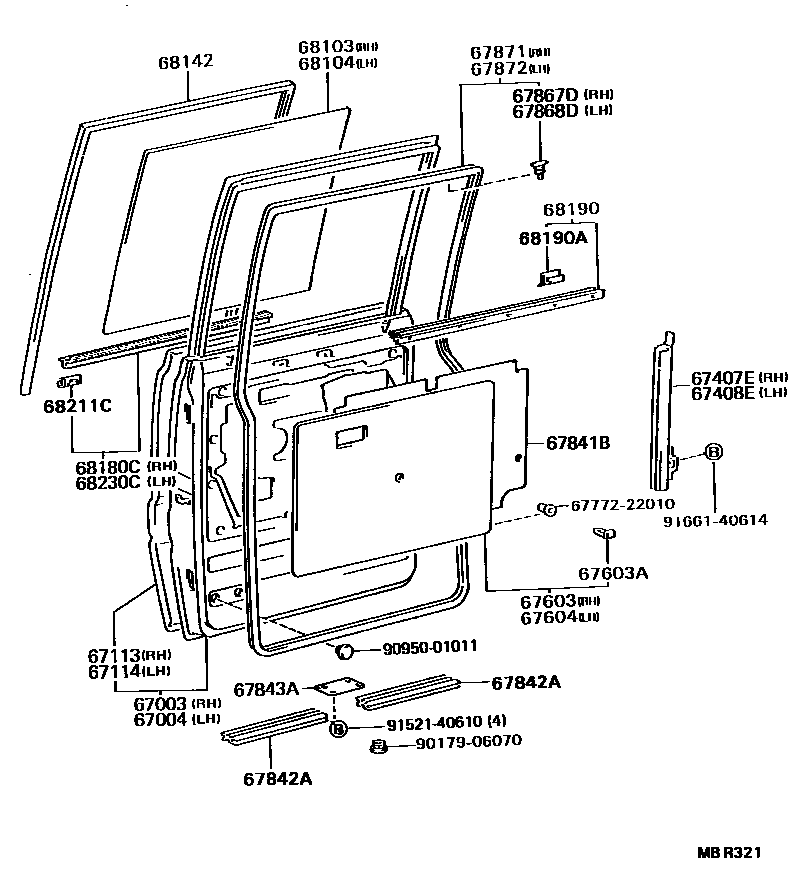

Toyota DYNA/TOYOACE — REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-95401iBU60,66,73,87,88..06S198808-199505

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-95401iBU60,66,73,87,88..06S198808-199505

67113PANEL, REAR DOOR, OUTER RH

main67113-95401iBU60,66,73,87,88..06S198808-199505

67114PANEL, REAR DOOR, OUTER LH

main67114-95401iBU60,66,73,87,88..06S198808-199505

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-95401iBU60,66,73,87,88..06S198808-199505

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-95401iBU60,66,73,87,88..06S198808-199505

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-95403-04iBU60,66,87,88..TOY..06S198808-199109

BLUE,TRIM8#

sub67630-95403

main67630-95403-06iBU60,66,73,87,88..DYN..06S198808-199109

BROWN,TRIM4#

sub67630-95403

main67630-95403-B0iBU60,66,73,87,88..06S199109-199505

GRAY,TRIM1#

sub67630-95403

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12020iBU60,66,73,87,88..06S198808-199505

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-92601-06iBU70198808-199109

BROWN,TRIM4#

main67640-92601-B0iBU70199109-199505

GRAY,TRIM1#

main67640-95403-04iBU60,66,87,88..TOY..06S198808-199109

BLUE,TRIM8#

sub67640-95403

main67640-95403-06iBU60,66,73,87,88..DYN..06S198808-199109

BROWN,TRIM4#

sub67640-95403

main67640-95403-B0iBU60,66,73,87,88..06S199109-199505

GRAY,TRIM1#

sub67640-95403

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-95402iBU60,66,73,87,88..06S198808-199505

67842ACOVER, REAR DOOR SERVICE HOLE, LOWER

main67842-95403iBU60,66,73,87,88..06S198808-199505

67843ACOVER, REAR DOOR SERVICE HOLE, NO.2

main67843-95400iBU60,66,73,87,88..06S198808-199505

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-95403iBU60,66,73,87,88..06S198808-199505

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-95402iBU60,66,73,87,88..06S198808-199505

67871WEATHERSTRIP, REAR DOOR, RH

main67871-95401iBU60,66,73,87,88..06S198808-199505

67872WEATHERSTRIP, REAR DOOR, LH

main67872-95401iBU60,66,73,87,88..06S198808-199505

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-37010iBU60,66,73,87,88..06S199109-199505

sub68113-37020

main68113-95402iBU60,66,73,87,88..06S198808-199109

sub68113-37020

68104GLASS SUB-ASSY, REAR DOOR, LH

main68113-37010iBU60,66,73,87,88..06S199109-199505

sub68113-37020

main68113-95402iBU60,66,73,87,88..06S198808-199109

sub68113-37020

68142RUN, REAR DOOR GLASS

main68142-95401iBU60,66,73,87,88..06S198808-199505

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-95401iBU60,66,73,87,88..06S198808-199505

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-95401iBU60,66,73,87,88..06S198808-199505

main68174-95400iBU60,66,73,87,88..06S198808-199505

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080iBU60,66,73,87,88..06S198808-199505

68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)

main68211-30080iBU60,66,73,87,88..06S198808-199505

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68180-95401iBU60,66,73,87,88..06S198808-199505

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9017906070

main90179-06070

9095001011

main90950-01011

9152140610

main91521-40610

9166140614

main91661-40614

29 parts on this diagram · 2 diagrams in section
