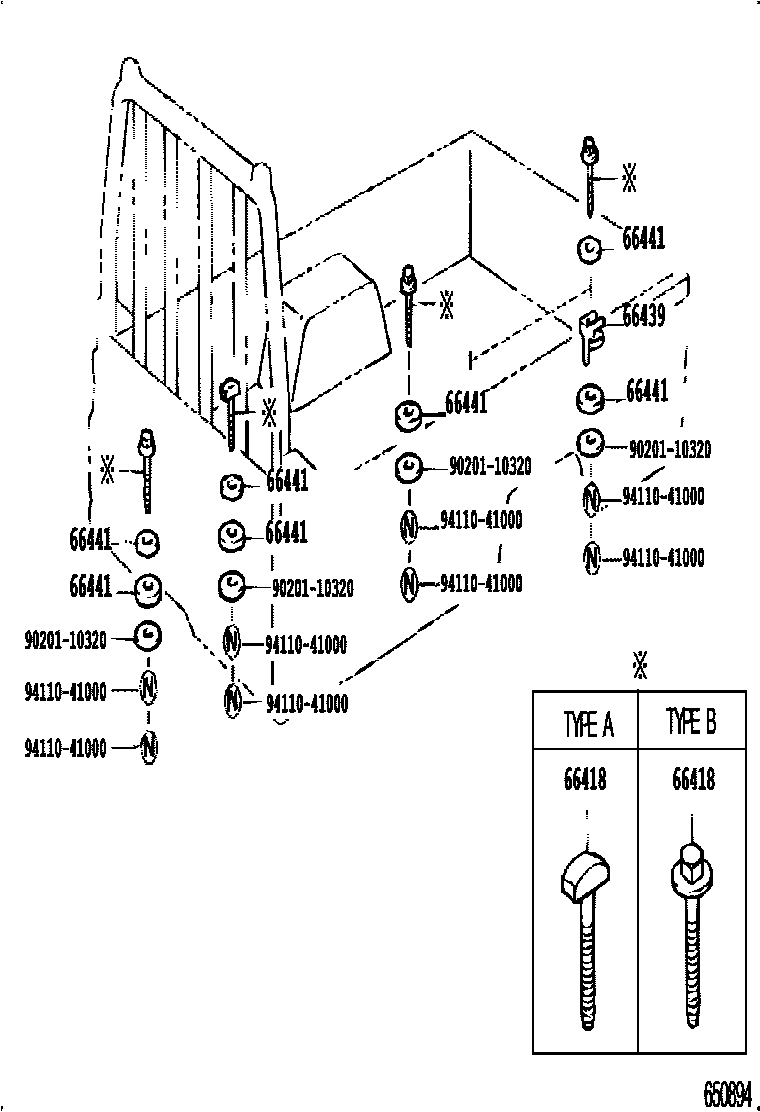

Toyota DYNA/TOYOACE — REAR BODY MOUNTING

0001 1 0002 1 0004 1 0005 1 0008 1 0010 1 0011 1

66418BOLT, MOUNTING

main66418-95400iBU60..(T1,TW1)..CBU198808-199505

main66461-92820iBU60,61,66..T3..ST..CBU;BU85,88..T3..(275,30T)..CBU198808-199505

NO.1,

main66461-92820iBU60,61,66..T3..ST..CBU;BU85,88..T3..(275,30T)..CBU198808-199505

main66461-92820iBU66..30T..CBU198808-199505

main66461-92820iBU72,73..T3..CBU198910-199505

NO.1,RH

main66461-92870iBU66..30T..CBU199008-199505

main66462-92820iBU72,73..T3..CBU;BU60,61,66..T3..ST..CBU198808-199505

main66462-92820iBU72,73..(T4,TW1)..CBU198808-199505

main66462-92820iBU72,73..(T4,TW1)..CBU198808-199505

main66463-92707iBU66..275..CBU;BU87..(275,30T)..CBU198808-199505

main66463-92707iBU60,85,88..(T3,TW1)..WT..CBU198808-199505

main66463-92707iBU60,85,88..(T3,TW1)..WT..CBU198808-199505

main66463-92707iBU87..T3..20T..CBU199309-199505

main90117-12021iBU72..T3..CBU;BU60,61,66..T3..ST..CBU198808-199505

NO.1,NO.2

main90117-12021iBU87..06S..CBU;BU60..T3..WT..CBU198808-199505

main90117-12021iBU87..06S..CBU;BU60..T3..WT..CBU198808-199505

main90117-12022iBU87..06S..CBU198808-199505

NO.2NO.3

main90117-12022iBU87..T3..20T..CBU;BU60,74..T3..WT..CBU198808-199505

main90117-12022iBU72,73..(T4,TW1)..CBU198808-199505

main90117-12023iBU87..T3..20T..CBU199309-199505

main90117-12023iBU66..275..CBU;BU87..(275,30T)..CBU198808-199505

NO.1,NO.2

main90117-12025iBU72,73..T3..CBU198910-199505

NO.1,LH

main90117-12025iBU9#..T3..CBU198808-199505

main90117-12026iBU73,9#..T3..CBU198808-199505

main90117-12027iBU85,88..T3..(275,30T)..CBU198808-199505

main90117-12027iBU94..T3..CBU;BU85,88,90,91,95,96..(T3,TW1)..(20T,35T)..CBU198808-199505

MO.3

main90117-12030iBU72..T4..CBU198910-199505

main90117-12031iBU66..30T..CBU199008-199505

main90119-10490iBU60..T1..CBU198808-199505

66439SHIM, SUPPORT

main66439-95400iBU60..T1..CBU198808-199505

66441SHIM, MOUNTING, NO.1

main66441-90301iBU67..T3..CBU;BU60,61,66,78,8#,94..(T2,T4,TW2,TW4)..CBU199504-199505

sub90564-15142

main66441-92220iBU67..T3..CBU;BU60,61,66,83,84,87,88,94..(T2,T4,TW2,TW4)..CBU198808-199310

sub90564-15142

main66441-95A01iBU60..ST..175..CBU198808-199505

OD=90,T=6.0

main90564-10167iBU60..ST..175..CBU198808-199505

OD=40,T=6.0

9020110320

main90201-10320

9411041000

main94110-41000

5 parts on this diagram · 7 diagrams in section
