Toyota DYNA/TOYOACE — RADIATOR GRILLE

0001 1 0002 1

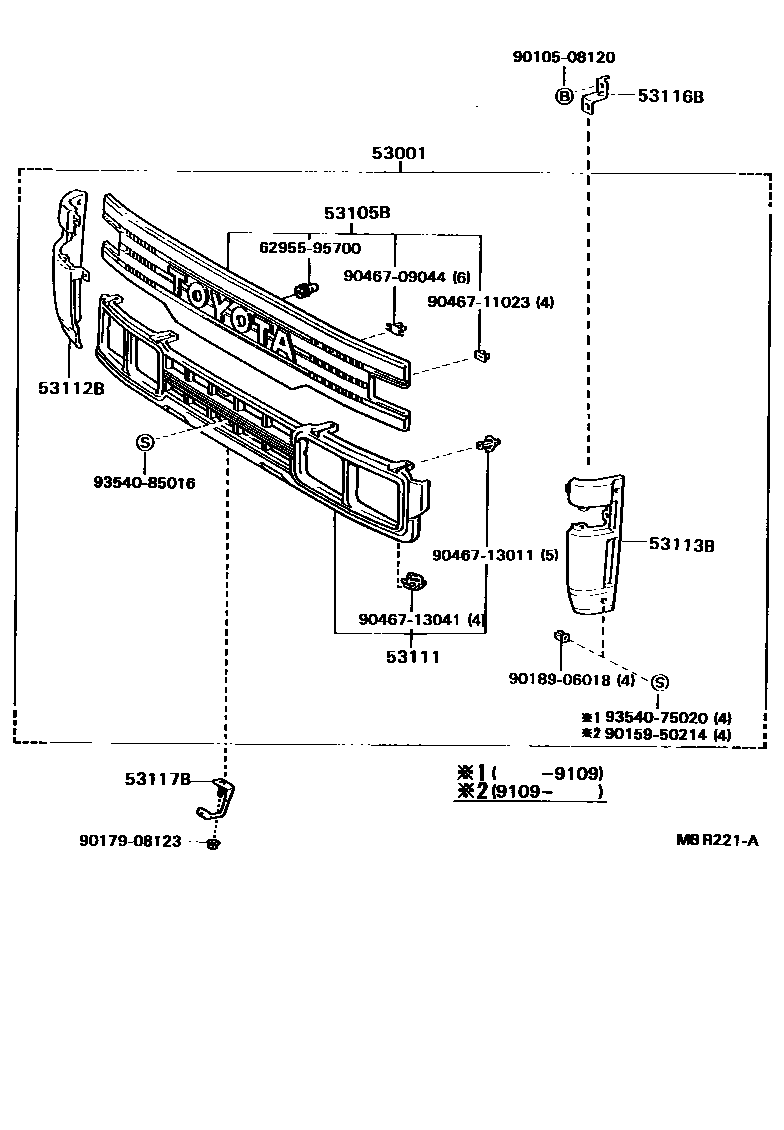

53001RADIATOR GRILLE SET

main53001-37010iBU91..DYN..IV3;BU88..DYN..T4..30T..IV3;BU88..DYN..(T2,T3,TW1)..IV3199008-199109

***

sub53001-37090

main53001-37010iBU91..DYN..IV3;BU88..DYN..T4..30T..IV3;BU88..DYN..(T2,T3,TW1)..IV3199008-199109

sub53001-37090

main53001-37020iBU94,96..DYN199008-199109

sub53001-37100

main53001-37020iBU91..DYN..IV3;BU88..DYN..T4..30T..IV3;BU88..DYN..(T2,T3,TW1)..IV3199008-199109

***

sub53001-37100

main53001-37030iBU91..TOY..IV3;BU88..TOY..06S..CBU;BU88..TOY..T4..30T..IV3;BU88..TOY..(T2,T3)..IV3199008-199109

sub53001-37110

main53001-37030iBU78..TOY;BU88,91..TOY..03S..CBU;BU88..TOY..(T4,TW1)..20T..IV3199008-199109

***

sub53001-37110

main53001-37040iBU94,96..TOY199008-199109

***

sub53001-37120

main53001-37040iBU94,96..TOY199008-199109

sub53001-37120

main53001-37050iBU87..DYN..(T3,TW1)..5F..20T..CBU199109-199505

main53001-37050iBU74,84,87..DYN..TR..IV3199109-199505

***

main53001-37050iBU74,84,87..DYN..TR..IV3199309-199505

main53001-37060iBU74,84,87..TOY..IV3199109-199505

***

main53001-37060iBU74,84,87..TOY..IV3199109-199505

main53001-37060iBU74,84..TOY..CBU;BU6#,72,73..TOY..DSL;BU87..TOY..(T2,T4)..CBU;BU87..TOY..T3..4FC..CBU;BU87..TOY..(275,30T)..CBU199309-199505

main53001-37070iBU87..DYN..T3..20T..CBU199109-199505

main53001-37070iBU74,84,87..DYN..TR..IV3199309-199505

main53001-37080iBU74,83,84,87..TOY..IV3;BU87..TOY..T3..20T..CBU199109-199505

main53001-37080iBU74,84,87..TOY..IV3199309-199505

main53001-37090iBU78..DYN;BU88..DYN..TD..CBU;BU88..DYN..4FC..CBU;BU88..DYN..T2..5F..CBU;BU88..DYN..T4..5F..30T..CBU;BU88,91..DYN..(275,35T)..CBU199109-199505

main53001-37090iBU91..DYN..IV3;BU88..DYN..T4..30T..IV3;BU88..DYN..T4..5F..20T..IV3;BU88..DYN..(T2,T3,TW1)..IV3;BU88..DYN..T3..30T..DSL..CBU;BU88..DYN..(T3,T4)..5F..20T..DSL..CBU199109-199505

***

main53001-37090iBU78..DYN;BU88..DYN..TD..CBU;BU88..DYN..4FC..CBU;BU88..DYN..T2..5F..CBU;BU88..DYN..T4..5F..30T..CBU;BU88,91..DYN..(275,35T)..CBU199309-199505

main53001-37100iBU88,91..DYN..IV3199309-199505

main53001-37100iBU88,91..DYN..IV3199109-199505

main53001-37100iBU94,96..DYN199109-199505

***

main53001-37110iBU78..TOY;BU88..TOY..TD..CBU;BU88..TOY..4FC..CBU;BU88..TOY..T2..5F..CBU;BU88..TOY..T4..5F..30T..CBU;BU88,91..TOY..(275,35T)..CBU199109-199505

***

main53001-37110iBU78..TOY;BU88..TOY..TD..CBU;BU88..TOY..4FC..CBU;BU88..TOY..T2..5F..CBU;BU88..TOY..T4..5F..30T..CBU;BU88,91..TOY..(275,35T)..CBU199109-199505

main53001-37110iBU78..TOY;BU88..TOY..TD..CBU;BU88..TOY..4FC..CBU;BU88..TOY..T2..5F..CBU;BU88..TOY..T4..5F..30T..CBU;BU88,91..TOY..(275,35T)..CBU199309-199505

main53001-37120iBU88,91..TOY..5F..IV3;BU88..TOY..4FC..30T..IV3;BU88..TOY..(T2,T3)..4FC..IV3199109-199505

main53001-37120iBU88,91..TOY..IV3199309-199505

main53001-37120iBU94,96..TOY199109-199505

***

main53001-95401iBU74,83,84,87..DYN..TR..IV3198808-199109

***

sub53001-37050

main53001-95401iBU87..V;BU6#,70,72..DYN;BU74,83,84,87..DYN..CBU198810-199109

sub53001-37050

main53001-95402iBU6#,72..TOY;BU74,83,84,87..TOY..CBU198810-199109

sub53001-37060

main53001-95402iBU6#,72..TOY;BU74,83,84,87..TOY..CBU198808-199109

***

sub53001-37060

main53001-95403iBU74,83,84,87..DYN..TR..IV3198810-199109

sub53001-37070

main53001-95404iBU74,83,84,87..TOY..IV3198810-199109

sub53001-37080

53105BGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-37010iBU78,88,9#..TOY199005-199109

sub53105-37060

main53105-37020iBU78,88,9#..DYN199008-199505

main53105-37030iBU78,88,9#..TOY199008-199505

sub53105-37060

main53105-37040-E0iBU87..V;BU73..DYN..20T;BU87..DYN..T4..5F;BU73..DYN..30T..IV3;BU87..DYN..(T2,T3,TW1);BU72..DYN..(DM4,DM5,T3,T4);BU6#,74,83,84..DYN..(CBU,IV3)199109-199505

GRAY M,048 ,8E5

main53105-37040-E0iBU87..V;BU73..DYN..20T;BU87..DYN..T4..5F;BU73..DYN..30T..IV3;BU87..DYN..(T2,T3,TW1);BU72..DYN..(DM4,DM5,T3,T4);BU6#,74,83,84..DYN..(CBU,IV3)199109-199505

GRAY M,048 ,705 ,8E5

main53105-37040-E0iBU87..V;BU73..DYN..20T;BU87..DYN..T4..5F;BU73..DYN..30T..IV3;BU87..DYN..(T2,T3,TW1);BU72..DYN..(DM4,DM5,T3,T4);BU6#,74,83,84..DYN..(CBU,IV3)199109-199505

GRAY M,048 ,705

main53105-37040-E0iBU66,73..IV4199109-199505

GRAY M,048 ,391 ,705

main53105-37040-E0iBU66,73..IV4199109-199505

GRAY M,048

main53105-37050-D0iBU6#,72,73,74,83,84,87..TOY199109-199505

GRAY M,048 ,8E5

main53105-37060-D0iBU78,88,9#..TOY199109-199505

GRAY M,048 ,8E5

main53105-95404iBU78,85,88,9#..TOY198808-199005

sub53105-37010

main53105-95406iBU78,85,88,9#..DYN198808-199109

BEIGE M

main53105-95408iBU78,88,9#..DYN199109-199505

main53105-95408iBU78,85,88,9#..DYN198808-199109

GRAY M

main53105-95410iBU6#,70,72,73,74,83,84,87..DYN198808-199109

BEIGE M

main53105-95411iBU6#,70,72,73,74,83,84,87..DYN198808-199109

GRAY M

sub53105-37040

main53105-95412iBU73..DYN..(CBU,IV3);BU6#,70,72,74,83,84,87..DYN..DSL198808-199505

main53105-95413iBU6#,72,74,83,84,87..TOY198808-199109

sub53105-37050

main53105-95414iBU6#,72,73,74,83,84,87..TOY..DSL198808-199505

53111GRILLE, RADIATOR

main53111-37010iBU78,88,9#..DYN199008-199505

main53111-37020iBU78,88,9#..TOY199008-199505

main53111-37030-E0iBU66,73..IV4199109-199505

GRAY M,048 ,8E5

main53111-37030-E0iBU66,73..IV4199109-199505

GRAY M,048 ,391 ,705

main53111-37030-E0iBU66,73..IV4199109-199505

GRAY M,048

main53111-37030-E0iBU66,73..IV4199109-199505

GRAY M,048 ,705 ,8E5

main53111-37030-E0iBU66,73..IV4199109-199505

GRAY M,048 ,705

main53111-37040-E0iBU78,88,9#..DYN199109-199505

GRAY M,048 ,705

main53111-95026iBU6#,72,73,74,83,84,87..TOY198808-199505

main53111-95027iBU6#,72,73,74,83,84,87..TOY..DSL198808-199505

main53111-95420iBU78,85,88,9#..TOY198808-199505

main53111-95421iBU6#,70,72,73,74,83,84,87..DYN198808-199109

BEIGE M

sub53111-37030

main53111-95422iBU78,85,88,9#..DYN198808-199109

BEIGE M

sub53111-37040

main53111-95423iBU6#,70,72,73,74,83,84,87..DYN198808-199109

GRAY M

sub53111-37030

main53111-95424iBU78,85,88,9#..DYN198808-199109

GRAY M

sub53111-37040

main53111-95425iBU73..DYN..(CBU,IV3);BU6#,70,72,74,83,84,87..DYN..DSL198808-199505

sub53111-37030

53112BGRILLE, RADIATOR SIDE, RH

main53112-37010-A0iBU74,8#,91..TR..IV3199109-199505

WHITE,048

main53112-37010-A0iBU74,8#,91..TR..IV3199309-199505

main53112-37010-H0iBU87..V;BU73..DYN..20T;BU73..DYN..30T..IV3;BU74,8#,91..DYN..CBU;BU6#,72,78..DYN..(CBU,IV3)199109-199505

TURCUOISE,705

main53112-37010-H0iBU87..V;BU73..DYN..20T;BU73..DYN..30T..IV3;BU74,8#,91..DYN..CBU;BU6#,72,78..DYN..(CBU,IV3)199309-199505

main53112-37010-J0iBU72..DYN..DM3;BU6#,72,73,78..TOY;BU73..DYN..30T..CBU;BU74,8#,91..TOY..CBU;BU87..DYN..T4..4FC..CBU199309-199505

main53112-37010-J0iBU74,8#,91..TOY..IV3;BU87..DYN..T4..4FC..IV3199109-199505

BLUE,8E5

main53112-37020-A0iBU87..T3..20T..CBU;BU88..T3..30T..DSL..CBU;BU88..(T3,T4)..5F..20T..DSL..CBU199109-199505

sub53112-37010

main53112-37020-A0iBU94,96;BU74,8#,91..TR..IV3199109-199505

WHITE,048

sub53112-37010

main53112-37020-H0iBU88..DYN..T4..30T..IV3;BU88..DYN..(T2,T3,TW1)..IV3;BU88..DYN..T4..5F..20T..IV3;BU74,83,84,87,91..DYN..TR..IV3199109-199505

sub53112-37010

main53112-37020-H0iBU94,96..DYN;BU74,8#,91..DYN..TR..IV3199109-199505

TURCUOISE,705

sub53112-37010

main53112-37020-J0iBU88..TOY..T3..30T..DSL..CBU;BU87..TOY..(T3,TW1)..5F..20T..CBU;BU88..TOY..(T3,T4,TW1)..5F..20T..DSL..CBU199109-199505

sub53112-37010

main53112-37020-J0iBU88..TOY..T3..30T..DSL..CBU;BU87..TOY..(T3,TW1)..5F..20T..CBU;BU88..TOY..(T3,T4,TW1)..5F..20T..DSL..CBU199109-199505

BLUE,8E5

sub53112-37010

main53112-95011iBU6#,72,74,78,8#,90,91..TOY198808-199109

main53112-95403iBU85,90..TOY..IV3;BU88..TOY..T2..5F..IV3;BU88..TOY..T3..30T..IV3;BU87..TOY..(T3,T4)..5F..20T..IV3198808-198809

sub53112-95011

main53112-95403iBU88..TOY..T3..30T..CBU198808-198809

sub53112-95011

main53112-95403iBU88..TOY..T3..30T..CBU198808-198809

sub53112-95011

main53112-95403iBU88..TOY..T3..30T..CBU198808-198809

sub53112-95011

main53112-95403iBU87..TOY..4FC;BU85,88,90,91..TOY..IV3;BU88..TOY..T3..30T..CBU;BU87..TOY..(T2,TW1)..IV3;BU87..TOY..5F..(275,30T)..IV3198809-199109

sub53112-95011

main53112-95403iBU94,95,96..TOY198808-199109

sub53112-95011

main53112-95403iBU87..TOY..(T3,T4)..5F..20T..IV3198809-199109

sub53112-95011

main53112-95403iBU87..TOY..(T3,T4)..5F..20T..IV3198809-199109

sub53112-95011

main53112-95404iBU6#,7#,8#,90,91..DYN198808-199109

BEIGE M

main53112-95405iBU83,84..DYN..IV3;BU88..DYN..T4..5F..IV3198808-198809

main53112-95405iBU83,84..DYN..IV3;BU88..DYN..T4..5F..IV3198808-198809

main53112-95405iBU88..DYN..T3..30T..CBU198808-198809

main53112-95405iBU88..DYN..T3..30T..CBU198808-198809

main53112-95405iBU87..DYN..4FC;BU85,88,91..DYN..IV3;BU88..DYN..T3..30T..CBU;BU87..DYN..(T2,TW1)..IV3;BU87,90..DYN..T3..5F..(275,30T,35T)..IV3198809-199109

main53112-95405iBU94,95,96..DYN198808-199109

BEIGE M

main53112-95405iBU90..DYN..T4..IV3;BU87..DYN..(T3,T4)..5F..20T..IV3198809-199109

main53112-95405iBU90..DYN..T4..IV3;BU87..DYN..(T3,T4)..5F..20T..IV3198809-199109

main53112-95406iBU6#,7#,8#,90,91..DYN198808-199109

GRAY M

main53112-95406iBU66,73..IV4199109-199505

main53112-95407iBU85,90..DYN..IV3;BU88..DYN..T2..5F..IV3;BU88..DYN..T3..30T..IV3;BU87..DYN..(T3,T4)..5F..20T..IV3198808-198809

sub53112-95406

main53112-95407iBU83,84..DYN..IV3;BU88..DYN..T4..5F..IV3198808-198809

sub53112-95406

main53112-95407iBU88..DYN..T3..30T..CBU198808-198809

sub53112-95406

main53112-95407iBU88..DYN..T3..30T..CBU198808-198809

sub53112-95406

main53112-95407iBU87..DYN..4FC;BU85,88,91..DYN..IV3;BU88..DYN..T3..30T..CBU;BU87..DYN..(T2,TW1)..IV3;BU87,90..DYN..T3..5F..(275,30T,35T)..IV3198809-199109

sub53112-95406

main53112-95407iBU94,95,96..DYN198808-199109

GRAY M

sub53112-95406

main53112-95407iBU90..DYN..T4..IV3;BU87..DYN..(T3,T4)..5F..20T..IV3198809-199109

sub53112-95406

main53112-95407iBU90..DYN..T4..IV3;BU87..DYN..(T3,T4)..5F..20T..IV3198809-199109

sub53112-95406

main53112-95408iBU6#,72,73,74,78,8#,91..TOY198808-199505

main53112-95408iBU74,8#,91..TOY..IV3199309-199505

main53112-95409iBU88..DYN..T4..30T..IV3;BU88..DYN..(T2,T3,TW1)..IV3;BU88..DYN..T4..5F..20T..IV3;BU74,83,84,87,91..DYN..TR..IV3198810-199505

sub53112-95408

main53112-95409iBU94,96..DYN199008-199309

sub53112-95408

main53112-95409iBU87..DYN..T3..20T..CBU;BU88..DYN..T3..30T..DSL..CBU;BU88..DYN..(T3,T4)..5F..20T..DSL..CBU199210-199309

sub53112-95408

main53112-95409iBU88..DYN..T3..30T..DSL..CBU;BU87..DYN..(T3,TW1)..5F..20T..CBU;BU88..DYN..(T3,T4,TW1)..5F..20T..DSL..CBU199309-199505

sub53112-95408

53113BGRILLE, RADIATOR SIDE, LH

main53113-37010-A0iBU74,8#,91..TR..IV3199309-199505

main53113-37010-A0iBU6#,7#,8#,91..CBU,IV3199109-199505

WHITE,048

main53113-37010-H0iBU66..DYN..(CBU,IV3)199109-199505

TURCUOISE,705

main53113-37010-H0iBU74,8#,91..DYN..TR..IV3199309-199505

main53113-37010-J0iBU72..DYN..DM3;BU73..DYN..30T..CBU;BU87..DYN..4FC..20T;BU6#,72,73,74,78,8#,91..TOY199109-199505

BLUE,8E5

main53113-37010-J0iBU74,8#,91..TOY..IV3;BU87..DYN..T4..4FC..IV3199309-199505

main53113-37020-A0iBU88..T3..30T..DSL..CBU;BU87..(T3,TW1)..5F..20T..CBU;BU88..(T3,T4,TW1)..5F..20T..DSL..CBU199109-199505

WHITE,048

sub53113-37010

main53113-37020-A0iBU88..T3..30T..DSL..CBU;BU87..(T3,TW1)..5F..20T..CBU;BU88..(T3,T4,TW1)..5F..20T..DSL..CBU199109-199505

sub53113-37010

main53113-37020-H0iBU87..DYN..T3..20T..CBU;BU88..DYN..T3..30T..DSL..CBU;BU88..DYN..(T3,T4)..5F..20T..DSL..CBU199109-199505

sub53113-37010

main53113-37020-H0iBU88..DYN..T3..30T..DSL..CBU;BU87..DYN..(T3,TW1)..5F..20T..CBU;BU88..DYN..(T3,T4,TW1)..5F..20T..DSL..CBU199109-199505

TURCUOISE,705

sub53113-37010

main53113-37020-J0iBU87..TOY..T3..20T..CBU;BU88..TOY..T3..30T..DSL..CBU;BU88..TOY..(T3,T4)..5F..20T..DSL..CBU199109-199505

sub53113-37010

main53113-37020-J0iBU94,96..TOY199109-199505

BLUE,8E5

sub53113-37010

main53113-95012iBU6#,72,74,78,8#,90,91..TOY198808-199109

main53113-95405iBU83,84..TOY..IV3198809-199109

main53113-95405iBU83,84..TOY..IV3198809-199109

main53113-95405iBU88..TOY..T3..30T..CBU198808-198809

main53113-95405iBU88..TOY..T3..5F..20T..IV3198808-198809

main53113-95405iBU88..TOY..T3..5F..20T..IV3198808-198809

main53113-95405iBU88..TOY..T3..5F..20T..IV3198808-198809

main53113-95405iBU87..TOY..4FC;BU88..TOY..T4..30T..IV3;BU87..TOY..(T2,TW1)..IV3;BU74,88..TOY..(T2,T3,TW1)..IV3;BU87,91..TOY..5F..(275,30T,35T)..IV3198809-199109

main53113-95405iBU94,95,96..TOY198808-199109

main53113-95406iBU6#,7#,8#,90,91..DYN198808-199109

BEIGE M

main53113-95407iBU88..DYN..T3..5F..20T..IV3198808-198809

sub53113-95406

main53113-95407iBU88..DYN..T3..30T..CBU198808-198809

sub53113-95406

main53113-95407iBU88..DYN..T3..30T..CBU198808-198809

sub53113-95406

main53113-95407iBU88..DYN..T3..30T..CBU198808-198809

sub53113-95406

main53113-95407iBU87..DYN..4FC;BU85,88,91..DYN..IV3;BU88..DYN..T3..30T..CBU;BU87..DYN..(T2,TW1)..IV3;BU87,90..DYN..T3..5F..(275,30T,35T)..IV3198809-199109

sub53113-95406

main53113-95407iBU94,95,96..DYN198808-199109

BEIGE M

sub53113-95406

main53113-95407iBU90..DYN..T4..IV3;BU87..DYN..(T3,T4)..5F..20T..IV3198809-199109

sub53113-95406

main53113-95407iBU90..DYN..T4..IV3;BU87..DYN..(T3,T4)..5F..20T..IV3198809-199109

sub53113-95406

main53113-95408iBU6#,7#,8#,90,91..DYN198808-199109

GRAY M

main53113-95408iBU66,73..IV4199109-199505

main53113-95409iBU88..DYN..T3..5F..20T..IV3198808-198809

main53113-95409iBU88..DYN..T3..5F..20T..IV3198808-198809

main53113-95409iBU88..DYN..T3..30T..CBU198808-198809

main53113-95409iBU88..DYN..T3..30T..CBU198808-198809

main53113-95409iBU94,95,96..DYN198808-199109

GRAY M

main53113-95409iBU87..DYN..4FC;BU85,88,91..DYN..IV3;BU88..DYN..T3..30T..CBU;BU87..DYN..(T2,TW1)..IV3;BU87,90..DYN..T3..5F..(275,30T,35T)..IV3198809-199109

main53113-95409iBU83,84..DYN..IV3198809-199109

main53113-95409iBU83,84..DYN..IV3198809-199109

main53113-95410iBU6#,70,72,74,83,84,87..DYN198808-199505

main53113-95410iBU74,8#,91..TOY..CBU;BU6#,72,73,78..TOY..DSL199309-199505

main53113-95411iBU88..TOY..T3..30T..DSL..CBU;BU87..TOY..(T3,TW1)..5F..20T..CBU;BU88..TOY..(T3,T4,TW1)..5F..20T..DSL..CBU199008-199505

sub53113-95410

main53113-95411iBU94,96..DYN199008-199309

sub53113-95410

main53113-95411iBU88..TOY..5F..IV3;BU87..TOY..T3..20T..CBU;BU88..TOY..4FC..30T..IV3;BU74,83,84,87,91..TOY..IV3;BU88..TOY..(T2,T3)..4FC..IV3;BU88..TOY..T3..30T..DSL..CBU;BU88..TOY..198810-199309

sub53113-95410

53116BBRACKET, RADIATOR GRILLE, NO.2

main53116-95403iBU6#,70,72,73,74,83,84,87198808-199505

main53116-95404iBU78,85,88,9#198808-199505

53117BBRACKET, RADIATOR GRILLE, LOWER

main53117-95404iBU6#,70,72,73,74,83,84,87198808-199505

main53117-95406iBU78,85,88,9#198808-199505

6295595700SEAL, ROOF SIDE VENT

main62955-95700

9010508120

main90105-08120

9015950214

main90159-50214

9017908123

main90179-08123

9018906018

main90189-06018

9046709044

main90467-09044

9046711023

main90467-11023

9046713011

main90467-13011

9046713041

main90467-13041

9354075020

main93540-75020

9354085016

main93540-85016

18 parts on this diagram · 2 diagrams in section
