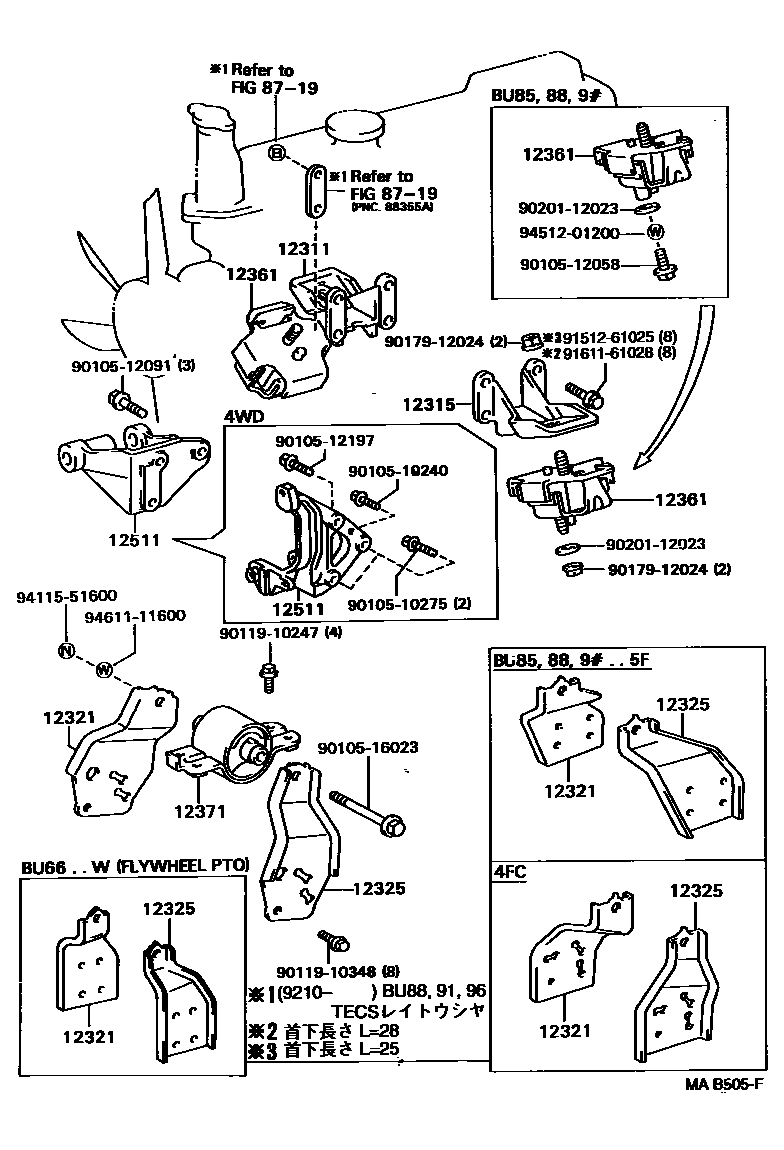

Toyota DYNA/TOYOACE — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-56040iB,11B,14B..BU6#,70,83,84,87198808-199505

main12311-56060iB..BU60..WT..20T..IV3;14B..BU66..T4..4FC..IV3198808-199505

main12311-58021i14B..BU88,91,94,96198808-199505

main12311-58040i14BT..BU91..T4..IV3;14B..BU88..T2..5F..IV3;14BT..BU88,96..5F..IV3;14B..BU88..T4..30T..IV3198808-199505

main12311-58070i14B..BU72,73,74198910-199505

main12311-75040i27LPG..BU68199311-199505

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56040i14B..BU87..CBU;14B..BU88..T2..5F;14B..BU88..T3..4FC;14B..BU87..TR..03S..IV3;14B..BU87..DYN..06S..IV3;B,11B,14B,3B..BU6#,70,83,84198808-199505

main12311-56060iB..BU60..WT..20T..IV3;14B..BU66..T2..5F..IV3;14B..BU66..T4..4FC..IV3198808-199505

main12311-58021i14B..BU88,91,94,96198808-199505

main12311-58040i14BT..BU91..T3..IV3;14B..BU88..T3..5F..(20T,30T)..IV3198808-199505

main12311-58070i14B..BU72,73,74198910-199505

main12315-75040i27LPG..BU68199311-199505

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-56070i14B..BU66,67,87..4FC198808-199505

main12321-56080iB,11B,14B,27LPG,3B..BU6#,70,83,84,87..5F..(CBU,IV3)198808-199505

main12321-56090i14B..BU72,73,74198910-199505

main12321-56100i14B..BU66..T3..5F..WT..(20T,30T)..IV3199109-199505

main12321-58050i13BT,14B#..BU78,85,88,9#..5F198808-199505

main12321-58060i14B..BU66..IV4198808-199505

main12321-58070i14B#..BU88,96..4FC198808-199505

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-56060i14B..BU66,67,87..4FC198808-199505

main12325-56070iB,11B,14B,27LPG,3B..BU6#,70,83,84,87..5F..(CBU,IV3)198808-199505

main12325-56080i14B..BU72,73,74198910-199505

main12325-56090i14B..BU66..T3..5F..WT..(20T,30T)..IV3199109-199505

main12325-58050i13BT,14B#..BU78,85,88,9#..5F198808-199505

main12325-58060i14B..BU66..IV4198808-199505

main12325-58070i14B#..BU88,96..4FC198808-199505

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35050i27LPG..BU68199311-199505

main12361-56071iB,11B,14B,3B..BU6#,70,72,73,74,83,84,87198808-199505

main12361-56090i14B..BU72..T4..IV3;14B..BU74..20T..IV3198910-199505

main12361-58040i13BT,14B#..BU78,85,88,9#198808-199505

main12362-56011iB,11B,14B,3B..BU6#,70,72,73,74,83,84,87198808-199505

main12362-56030i14B..BU72..T4..IV3;14B..BU74..20T..IV3198910-199505

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-56041iB,11B,13BT,14B#,27LPG,3B..BU6#,70,78,8#,9#198808-199505

main12371-56050i14B..BU72,73,74198910-199505

12511BRACKET, ALTERNATOR, NO.1

main12501-56010iB,11B,14B#,3B..BU6#,70,78,83,84,87,88,91,94,96198808-199505

main12501-58020i14B..BU72,74198910-199001

sub12501-58021

main12501-58021i14B..BU72,73,74199001-199505

main12511-56040i13BT..BU85,90,95198808-198910

main12511-75030i27LPG..BU68199311-199505

8719

9010510240

main90105-10240

9010510275

main90105-10275

9010512058

main90105-12058

9010512091

main90105-12091

9010512197

main90105-12197

9010516023

main90105-16023

9011910247

main90119-10247

9011910348

main90119-10348

9017912024

main90179-12024

9020112023

main90201-12023

9151261025

main91512-61025

9161161028

main91611-61028

9411551600

main94115-51600

9451201200

main94512-01200

9461111600

main94611-11600

23 parts on this diagram · 2 diagrams in section
