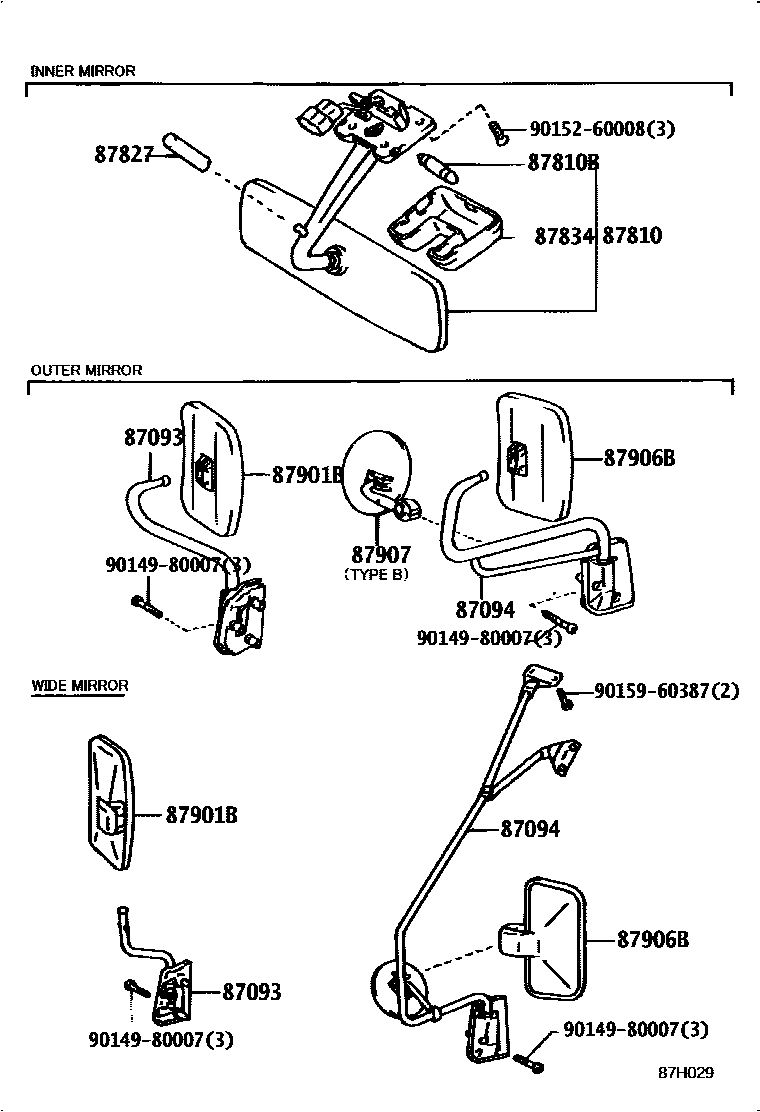

Toyota DYNA/TOYOACE — MIRROR

0001 1 0002 1

87093STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH

main87093-37030iBU60,66..T3..WT..20T..IV3199309-199505

main87093-37030iBU6#,7#,8#,9#199309-199505

main87093-37080iBU88..5F..30T;BU60,88..(T2,T3,T4)..(20T,275);BU61,66,67,72,73,74,78,84,87,9#..(TR,V)..03S199309-199505

main87093-95400iBU60,66..T3..WT..20T..IV3199210-199309

sub87093-37030

main87093-95400iBU6#,7#,8#,9#198808-199309

sub87093-37030

main87093-95406iBU88..5F..30T;BU60,88..(T2,T3,T4)..(20T,275);BU61,66,67,72,73,74,78,83,84,87,9#..(TR,V)..03S198910-199309

87094STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH

main87094-37020iBU67;BU66..ST;BU66,72..DM2,DM3,DM4,DM5,T2,T4199109-199210

main87094-37020iBU60,66,68..(DM1,T3)..WT..20T..IV3199109-199309

main87094-37030iBU60,66,68..(DM1,T3)..WT..20T..IV3199109-199309

main87094-37030iBU72,74..T3;BU66..275,30T;BU87..TR..5F..03S199109-199210

main87094-37030iBU72,74..T3;BU66..275,30T;BU87..TR..5F..03S199109-199210

main87094-37030iBU68,72..IV3;BU60..T3..WT..IV3;BU66..(DM1,T2,T3,T4)..20T..IV3199210-199309

main87094-37040iBU78,88..03S199109-199210

main87094-37040iBU78,88199210-199309

main87094-37050iBU78,88..IV3199210-199309

main87094-37050iBU9#..5F;BU96..4FC..TD199109-199210

main87094-37050iBU9#..5F;BU96..4FC..TD199109-199210

main87094-37050iBU78,88..IV3199210-199309

main87094-37060iBU60..T2,T3,T4;BU61,66,67,72,73,74,83,84,87..(TR,V)..03S199109-199309

main87094-37070iBU66..175,20T;BU60,61,67,68,70,72199309-199505

main87094-37080iBU60,61,68,72..20T..DSL..IV3;BU66..(DM1,T2,T3,T4)..20T..IV3199309-199505

main87094-37090iBU78,88199309-199505

main87094-37100iBU9#199309-199505

main87094-37160iBU78,9#;BU88..5F..30T;BU88..03S..(20T,275)199309-199505

main87094-37170iBU60..T3..WT..IV3;BU66,67,68,72..20T..DSL199309-199505

main87094-37180iBU68,72..DSL..IV3;BU60..T3..WT..IV3;BU66..(DM1,T2,T3,T4)..20T..IV3199309-199505

main87094-37180iBU66..275,30T;BU73,74,87..03S199309-199505

main87094-37190iBU78,88199309-199505

main87094-37200iBU78,88..IV3199309-199505

main87094-37200iBU78,88..IV3199309-199505

main87094-37210iBU60..T2,T3,T4;BU61,66,67,72,73,74,84,87..(TR,V)..03S199309-199505

main87094-37220iBU68..LPG199311-199505

main87094-95401iBU72..T3;BU73,74,83,84,87;BU66..275,30T,IV4198808-199309

main87094-95406iBU78,85,88..IV3198808-199309

main87094-95408iBU68199002-199008

main87094-95408iBU66..175,20T;BU60,61,67,68,70;BU72..DM3,DM4,DM5,T4198808-199309

main87094-95409iBU78,85,88198808-199309

main87094-95410iBU78,9#;BU88..5F..30T;BU88..03S..(20T,275)198910-199309

87810MIRROR ASSY, INNER REAR VIEW

main87810-95417-01iBU6#,72,74,83,84,87..TOY198808-199109

BLACK,TRIM8#

sub87810-95417

main87810-95417-01iBU6#,72,74,83,84,87..TOY198808-199109

BLACK,TRIM4#

sub87810-95417

main87810-95417-01iBU6#,70,72,73,74,83,84,87..DSL199109-199505

BLACK,TRIM1#

sub87810-95417

main87810-95418-01iBU68..LPG199311-199505

BLACK,TRIM1#

sub87810-95418

main87810-95421-01iBU78,85,88,9#..DYN198808-199109

BLACK,TRIM8#

sub87810-95421

main87810-95421-01iBU78,85,88,9#..DYN198808-199109

BLACK,TRIM4#

sub87810-95421

main87810-95421-01iBU78,88,9#199109-199505

BLACK,TRIM1#

sub87810-95421

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iBU68..LPG199311-199505

main90981-16019iBU6#,7#,8#,9#..DSL,TD198808-199505

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iBU6#,7#,8#,9#198808-199505

main87828-30010iBU6#,7#,8#,9#198808-199505

L=43.5

main87828-32010iBU6#,7#,8#,9#198808-199505

main87828-92600iBU66,70,73,88..HRF,SRF,TW1198808-199505

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iBU6#,7#,8#,9#198808-199505

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-37030iBU6#,7#,8#,9#199310-199505

main87901-37030iBU6#,7#,8#,9#199201-199310

main87901-87308iBU68..LPG199210-199505

main87901-95411iBU6#,7#,8#,9#198808-199201

sub87901-37030

main87901-95419iBU78,9#;BU88..5F..30T;BU88..03S..(20T,275)198910-199505

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87901-37030iBU6#,70,72,73,74,83,84,87199201-199505

main87901-37040iBU78,88,9#199201-199505

main87901-87307iBU60,66,68..(DM1,T3)..WT..20T..DSL..IV3199210-199505

main87901-95411iBU6#,70,72,73,74,83,84,87198808-199201

sub87901-37030

main87901-95415iBU78,85,88,9#198808-199201

sub87901-37040

main87901-95420iBU78,9#;BU88..5F..30T;BU88..03S..(20T,275)198910-199505

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-37010iBU66..ST;BU96..4FC..TD;BU87..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T4;BU66,96..5F..(275,30T,35T);BU67,72,74,78,88,91,94..03S199109-199505

main87907-37010iBU60,66,68..(DM1,T3)..WT..20T..IV3199109-199210

TYPE A

main87907-37020iBU6#,7#,8#,9#199309-199505

TYPE B

main87907-95400iBU6#,7#,8#,9#198808-199309

TYPE B

9014980007

main90149-80007

9015260008

main90152-60008

9015960387

main90159-60387

12 parts on this diagram · 2 diagrams in section
