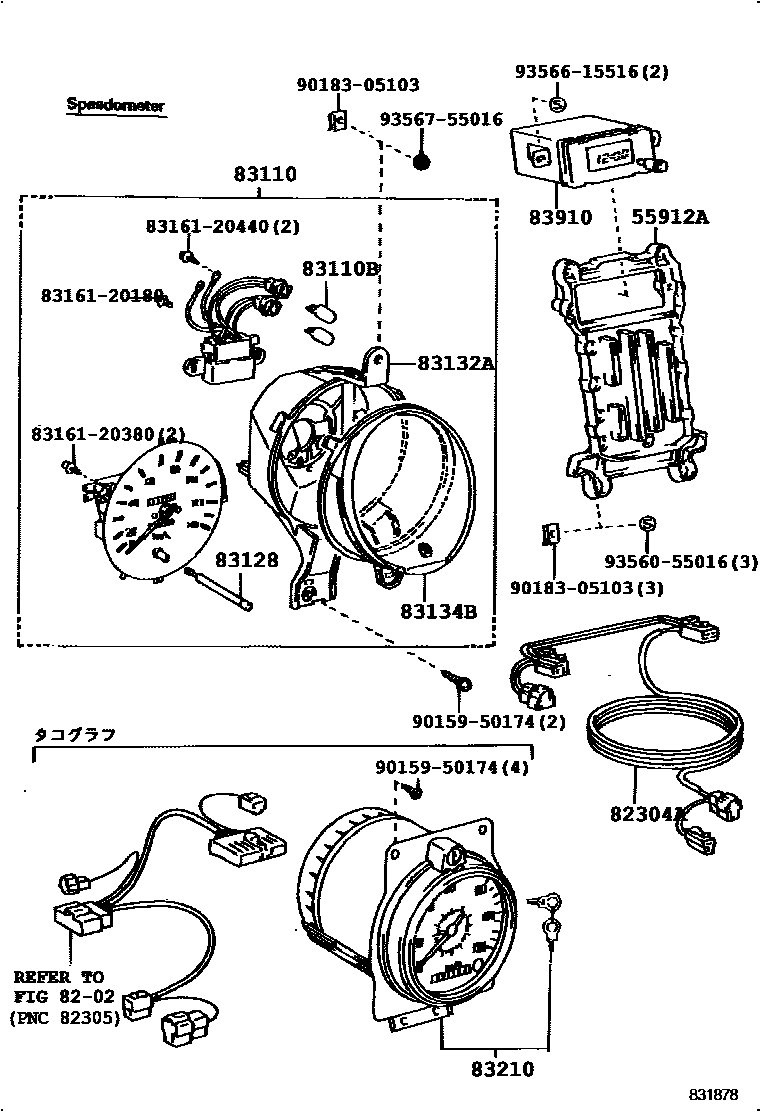

Toyota DYNA/TOYOACE — METER

0001 1 0002 1 0003 1����� & ���� 0004 1 0005 1 0006 1

55912AHOUSING, HEATER CONTROL

main55912-95404iBU6#,7#,8#,9#199309-199505

8202

82304AWIRE SUB-ASSY, CLOCK

main82304-37010iBU6#,7#,8#,9#199109-199309

main82304-95408iBU6#,7#,8#,9#198808-199109

83110SPEEDOMETER ASSY

main83110-36480iBU66,67..4FC199304-199505

main83110-36490iBU87,88,96..4FC199304-199505

main83110-36500iBU72..DM5,T4;BU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..5F..(175,20T);BU60,61,67,70..(DM1,DM4,SRF,T1,T2,T3,T4,TW1,TW2,TW4)..5F199304-199505

sub83110-36480

main83110-36510iBU72..DM3,DM4;BU66,70..DM1,HRF;BU66..275,30T,IV4;BU68,73,74,78,8#,9#..5F..(DSL,TD)199304-199505

sub83110-36480

main83110-36520iBU68..LPG199311-199505

main83110-95446iBU66,67..4FC198808-199304

sub83110-36480

main83110-95447iBU87,88,96..4FC198808-199304

sub83110-36490

main83110-95448iBU72..DM5,T4;BU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..5F..(175,20T);BU60,61,67,70..(DM1,DM4,SRF,T1,T2,T3,T4,TW1,TW2,TW4)..5F198808-199304

sub83110-36500

main83110-95449iBU66,70..DM1,HRF;BU72..DM3,DM4,T3;BU66..275,30T,IV4;BU68,73,74,78,8#,9#..5F198808-199304

sub83110-36510

83110BBULB, SPEEDOMETER

main99132-12034iBU68..LPG199311-199505

main99134-12030iBU60..TOY..T1;BU60..DYN..T1..IV3;BU60..T2,T3,T4,TW1,TW2,TW4;BU61,66,67,68,7#,8#,9#..DSL,TD198808-199505

83128KNOB, TRIP COUNTER

main83128-89300iBU60..TOY..T1;BU60..DYN..T1..IV3;BU61,66,67,68,7#,8#,9#;BU60..T2,T3,T4,TW1,TW2,TW4198808-199505

83132CASE, COMBINATION METER

main83132-95B00iBU66,67,72,73,74,78,87,88,9#199109-199505

main83132-95B00iBU85,88,94..TD;BU66,73,90,91,95,96..35T,IV4198808-199109

main83132-95B01iBU60,61,68,70,83,84198808-199505

83132ACASE, METER

main83132-95404iBU6#,7#,8#,9#198808-199505

83134COVER, COMBINATION METER, NO.1

main83134-95B00iBU87..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T3,T4;BU67,72,74,78,88,94..03S..DSL198808-199109

main83134-95B00iBU66,67,72,73,74,78,87,88,9#199109-199505

main83134-95B01iBU60..TOY..T1;BU60..DYN..T1..IV3;BU60,61,68,70,83,84..DM1,HRF,SRF,T2,T3,T4,TW1,TW2,TW4198808-199505

83134BCOVER, COMBINATION METER, NO.2

main83134-95408iBU60..TOY..T1;BU60..DYN..T1..IV3;BU61,66,67,68,7#,8#,9#;BU60..T2,T3,T4,TW1,TW2,TW4198808-199505

83210TACHOGRAPH ASSY

main83210-37010iBU87..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DSL,TD)..IV3199008-199505

main83210-37020iBU87..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DSL,TD)..IV3199008-199505

main83210-95417iBU6#,7#,8#,9#..(DSL,TD)..(CBU,IV3)198808-199505

main83210-95418iBU6#,7#,8#,9#..(DSL,TD)..(CBU,IV3)198808-199505

83910CLOCK ASSY

main83910-37011iBU68..LPG199311-199505

main83910-37021iBU96..4FC..TD;BU87..03S..(20T,30T);BU87,96..5F..(275,35T);BU66..DM2,DM3,DM5,T2,T3,T4;BU67,72,73,74,78,88,91,94..03S199109-199505

main83910-37030iBU68..LPG199311-199505

main83910-37040iBU6#,7#,8#,9#..DSL,TD199309-199505

main83910-95402iBU87..V;BU87,96..4FC..DSL;BU60,61,68,70,73,83,84;BU66,87,88..DM1,TW1,TW4198808-199109

24V

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9015950174

main90159-50174

9018305103

main90183-05103

9356055016

main93560-55016

9356615516

main93566-15516

9356755016

main93567-55016

20 parts on this diagram · 6 diagrams in section
