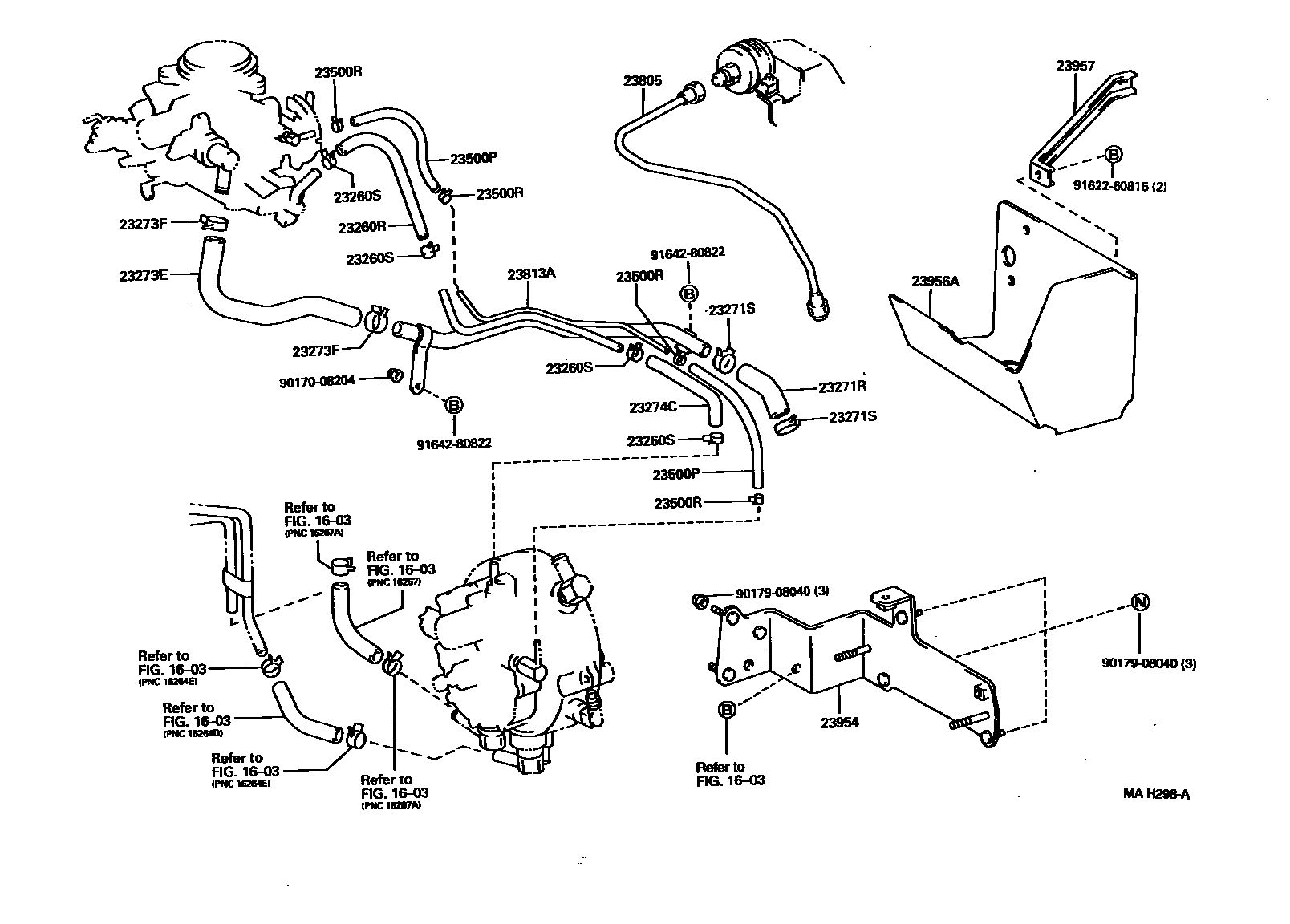

Toyota DYNA/TOYOACE — LPG(CARBURETOR) FUEL PIPE
1603
23260RHOSE, LPG INJECTOR
23260SCLAMP OR CLIP(FOR LPG INJECTOR HOSE)
sub96135-51300
23271RHOSE, FUEL, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)
23271SCLAMP OR CLIP(FOR FUEL HOSE NO.1)
sub96134-52600
23273EHOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR)
sub23273-75011
23273FCLAMP OR CLIP(FOR FUEL HOSE NO.3)
sub96134-52600
23274CHOSE, FUEL, NO.3
23500PHOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)
23500RCLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)
23805PIPE SUB-ASSY, LPG REGULATOR
23813APIPE, LPG FUEL
23954BRACKET, LPG REGULATOR
23956ACOVER, LPG REGULATOR
23957STAY, LPG REGULATOR
9017008204
main90170-08204
9017908040
main90179-08040
9162260816
main91622-60816
9164280822
main91642-80822
19 parts on this diagram · 1 diagram in section
