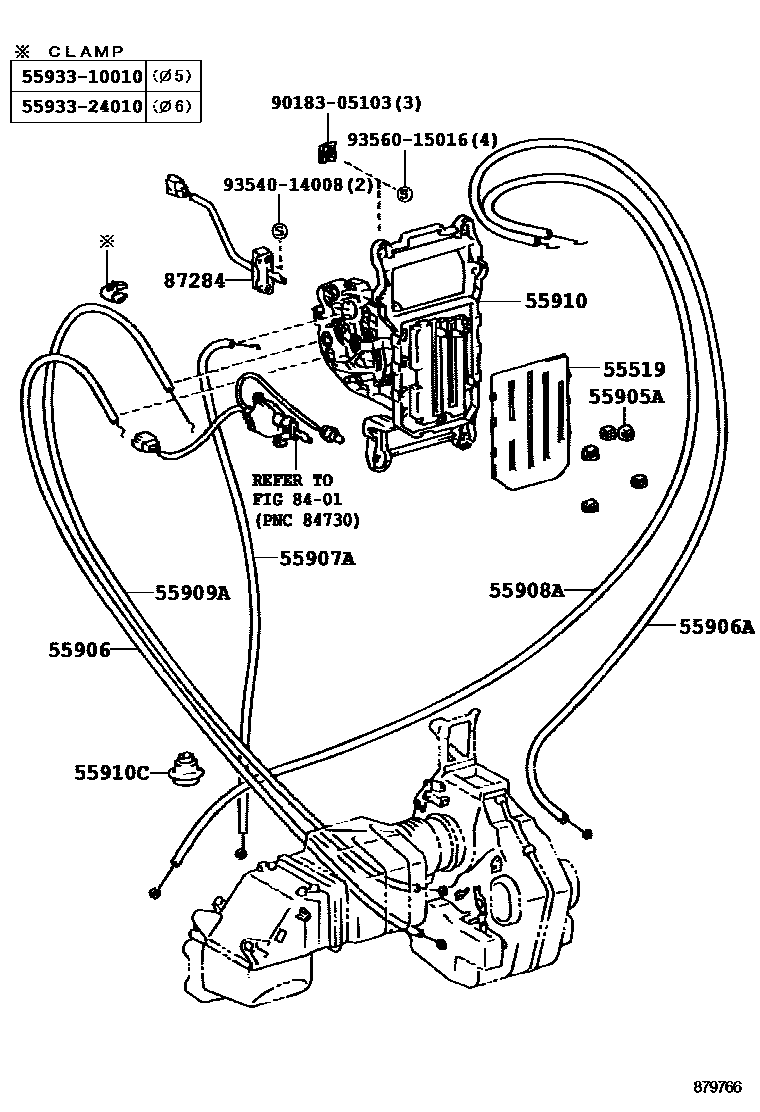

Toyota DYNA/TOYOACE — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55519PLATE, HEATER CONTROL NAME

main55519-95405iBU6#,7#,83,84,87,88,91,94,96198808-199505

55905AKNOB, HEATER CONTROL

main55905-10110iBU6#,7#,83,84,87,88,91,94,96198808-199505

main55905-95707iBU85,90,95198908-198910

main55905-95707iBU61,66,67,72,73,74,78,8#,9#..5F198808-199505

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-36010iBU6#,70,72,73,74,83,84,87199110-199505

main55905-36020iBU78,88,9#199110-199505

main55905-95401iBU6#,70,72,73,74,83,84,87198808-199110

main55905-95402iBU78,88,91,94,96198808-199110

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36030iBU6#,70,72,73,74,83,84,87199110-199505

main55906-36040iBU78,88,9#199110-199505

main55906-95404iBU6#,70,72,73,74,83,84,87198808-199110

main55906-95405iBU85,88,9#198808-199110

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36010iBU6#,70,72,73,74,83,84,87199110-199505

main55907-36020iBU78,88,9#199110-199505

main55907-95404iBU6#,70,72,73,74,83,84,87198808-199110

main55907-95405iBU78,88,91,94,96198808-199110

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iBU6#,70,72,73,74,83,84,87198808-199505

main55908-95403iBU78,88,91,94,96198808-199505

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iBU6#,70,72,73,74,83,84,87198808-199505

main55909-95405iBU85,88,9#198808-199505

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36070iBU6#,7#,8#,9#199110-199505

main55910-36080iBU60,61,68,83,84..DSL;BU66,67,87,88,96..4FC..DSL199110-199505

main55910-95407iBU6#,7#,83,84,87,88,91,94,96198808-199110

sub55910-36070

sub55905-26010

sub55905-36010

sub55905-36020

sub55905-37020

sub55906-26020

sub55906-36030

sub55906-36040

sub55906-37010

sub55907-26020

sub55907-36010

sub55907-36020

sub55907-37010

main55910-95408iBU66,88..06S198808-199110

sub55910-36080

sub55905-36010

sub55905-36020

sub55906-36030

sub55906-36040

sub55907-36010

sub55907-36020

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iBU85,88,9#198808-199505

main90480-24215iBU6#,70,72,73,74,83,84,87198808-199505

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iBU70,83;BU60..T3..ST..IV3;BU66,67,87,88..4FC;BU60..T1,TW1,TW2,TW4;BU60..(T2,T3,T4)..CBU198808-199505

5593310010GUIDE, LEVER, NO.2

main55933-10010

5593324010GUIDE, LEVER, NO.2

main55933-24010

9018305103

main90183-05103

9354014008

main93540-14008

9356015016

main93560-15016

16 parts on this diagram · 4 diagrams in section
