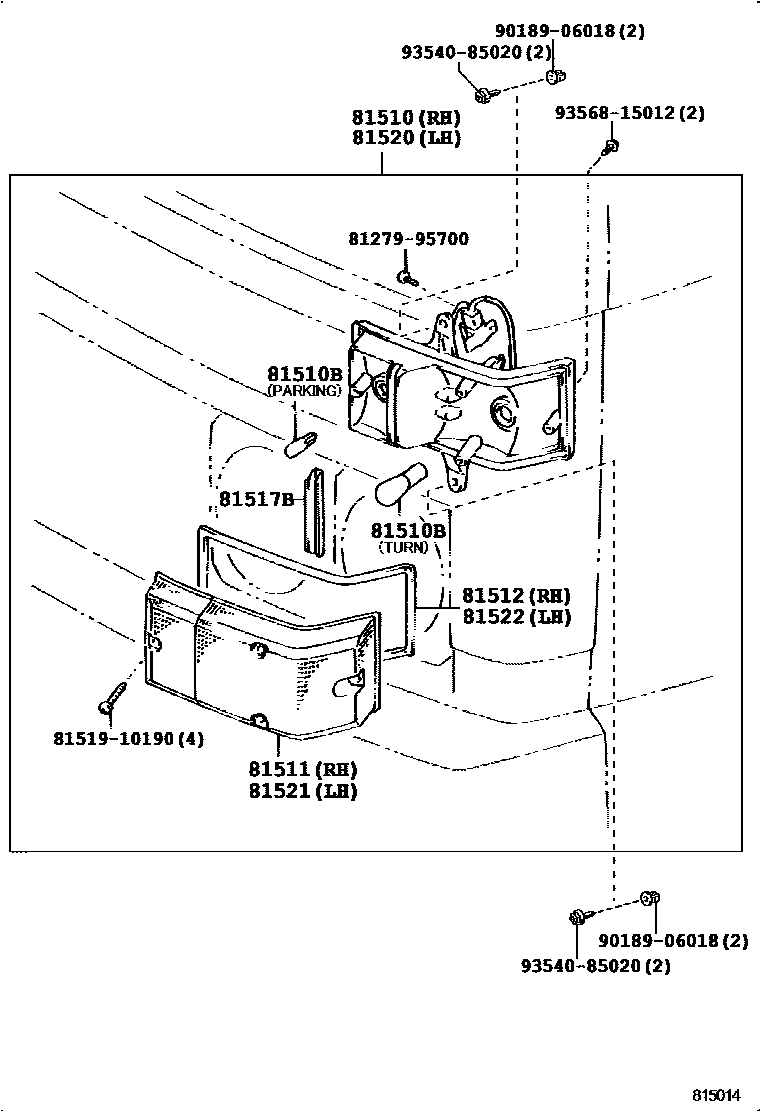

Toyota DYNA/TOYOACE — FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-95406iBU6#,7#,8#,9#..DSL,TD198808-199505

main81510-95412iBU68..LPG199311-199505

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-12009iBU6#,7#,8#,9#..DSL,TD198808-199505

sub90981-12015

main99132-11210iBU68..LPG199311-199505

main99132-12050iBU68..LPG199311-199505

main99134-11250iBU6#,7#,8#,9#..DSL,TD198808-199505

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-95406iBU6#,7#,8#,9#198808-199505

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-95406iBU6#,7#,8#,9#198808-199505

81517BSHADE, FRONT TURN SIGNAL LAMP

main81517-95406iBU6#,7#,8#,9#198808-199505

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-95406iBU6#,7#,8#,9#..DSL,TD198808-199505

main81520-95412iBU68..LPG199311-199505

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81511-95406iBU6#,7#,8#,9#198808-199505

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-95406iBU6#,7#,8#,9#198808-199505

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

9018906018

main90189-06018

9354085020

main93540-85020

9356815012

main93568-15012

13 parts on this diagram · 1 diagram in section
