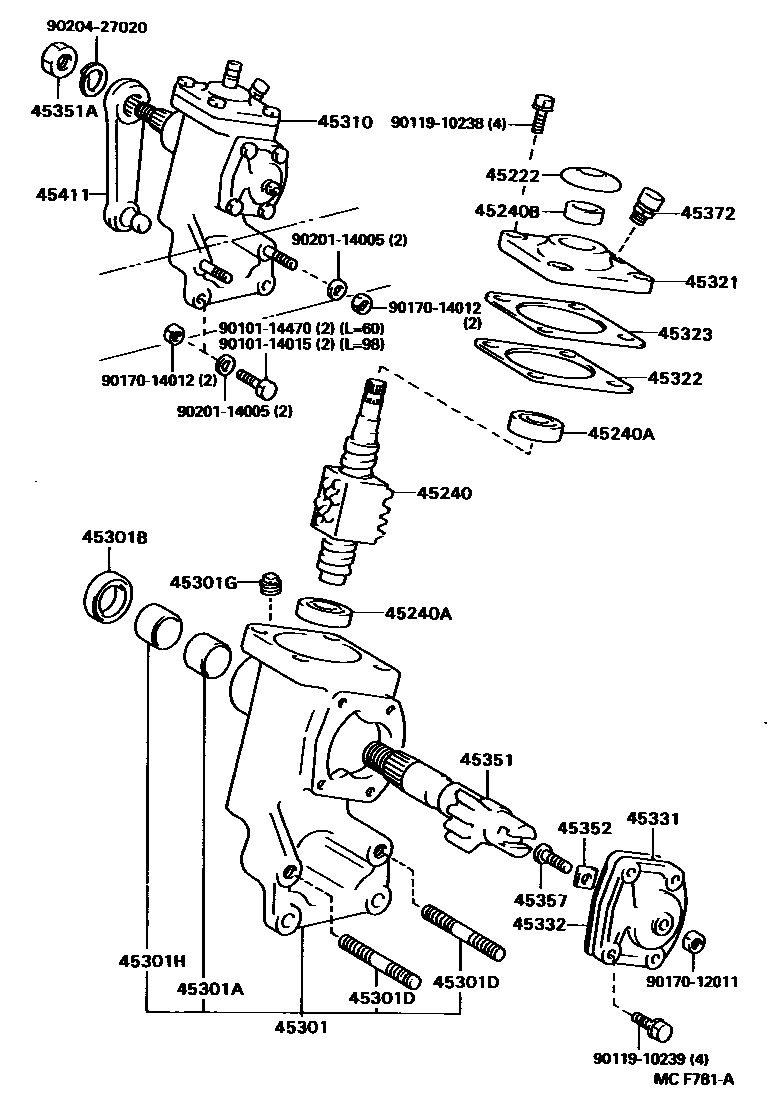

Toyota DYNA/TOYOACE — FRONT STEERING GEAR & LINK

0001 1������������ 0002 1������������ 0003 1���-������� 0004 1���-������� 0005 1���-������� 0006 1���-������� 0007 1���-������� 0008 1 0009 1 0010 1 0011 1

45222COVER, STEERING GEAR DUST

main45222-26010iBU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL198808-199505

45240WORM ASSY, STEERING

main45240-36140iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

main45240-36160iBU60,61,66,83,84,87..DM5,T4,TW4198808-199404

main45240-36170iBU88..(T2,T3)..5F..20T..DSL198808-199505

45240ABEARING(FOR STEERING WORM)

main90363-20024iBU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL198808-199505

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iBU88..(T2,T3)..5F..20T..DSL198808-199505

main90311-19001iBU6#,70,83,84,87..DSL198808-199505

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-36170iBU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199504

sub45301-37030

main45301-36190iBU67198808-199504

sub45301-37040

main45301-36210iBU60,61,66,83,84,87..DM5,T4,TW4198808-199404

main45301-36230iBU88..(T2,T3)..5F..20T..DSL198808-199505

main45301-37030iBU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL199504-199505

main45301-37040iBU67199504-199505

45301ABUSH OR BEARING, SECTOR SHAFT, NO.1

main90999-73060iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90311-36104iBU6#,70,83,84,87..DSL198808-199505

main90311-38033iBU88..(T2,T3)..5F..20T..DSL198808-199505

45301DBOLT, STUD(FOR STEERING GEAR HOUSING)

main90116-14004iBU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

main90116-14008iBU67198808-199505

L=96

main90116-14009iBU67198808-199505

L=73

45301GPLUG, STEERING GEAR BOX OIL

main90345-53005iBU6#,70,83,84,87..DSL198808-199505

45301HBUSH OR BEARING, SECTOR SHAFT, NO.2

main90999-73060iBU6#,70,83,84,87..DSL198808-199505

45310HOUSING ASSY, STEERING GEAR

main45310-36190iBU87..V;BU60,61,66,68,70,84,87..DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2198808-199212

sub45310-36191

main45310-36191iBU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL199212-199504

sub45310-37030

main45310-36210iBU67198808-199212

sub45310-36211

main45310-36211iBU67199212-199504

sub45310-37040

main45310-36230iBU60,61,66,83,84,87..DM5,T4,TW4198808-199212

sub45310-36231

main45310-36231iBU60,61,66,83,84,87..DM5,T4,TW4199212-199404

main45310-36250iBU88..(T2,T3)..5F..20T..DSL198808-199212

sub45310-36251

main45310-36251iBU88..(T2,T3)..5F..20T..DSL199212-199505

main45310-37030iBU87..V;BU60,61,66,68,70,84,87..(DM1,DM2,DM3,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL199504-199505

main45310-37040iBU67199504-199505

45321COVER, GEAR HOUSING END

main45321-36050iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

45322GASKET, GEAR HOUSING END COVER

main45322-37010iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

45323SHIM, GEAR HOUSING END COVER

main45323-37010iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

main45323-37020iBU6#,70,83,84,87..DSL198808-199505

main45323-37030iBU6#,70,83,84,87..DSL198808-199505

main45323-37040iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

main45323-37050iBU6#,70,83,84,87..DSL198808-199505

main45323-37060iBU6#,70,83,84,87..DSL198808-199505

45331COVER, SECTOR SHAFT END

main45304-36030iBU60,61,66,83,84,87..DM5,T4,TW4198808-199404

main45304-36050iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

main45304-36060iBU88..(T2,T3)..5F..20T..DSL198808-199505

45332GASKET, SECTOR SHAFT END COVER

main45332-36020iBU60,61,66,83,84,87..DM5,T4,TW4198808-199404

main45332-36040iBU88..(T2,T3)..5F..20T..DSL198808-199505

main45332-37010iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

45351SHAFT, STEERING SECTOR

main45351-36030iBU87..V;BU6#,70,84,87..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2198808-199212

sub45351-36031

main45351-36031iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL199212-199505

main45351-36040iBU60,61,66,83,84,87..DM5,T4,TW4198808-199404

main45351-36050iBU88..(T2,T3)..5F..20T..DSL198808-199212

sub45351-36051

main45351-36051iBU88..(T2,T3)..5F..20T..DSL199212-199505

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-27033iBU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iBU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

main45353-37010iBU87..V;BU88..(T2,T3)..5F..20T..DSL;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

main45354-37010iBU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL198808-199505

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iBU6#,70,83,84,87..DSL;BU88..(T2,T3)..5F..20T..DSL198808-199505

sub45357-37020

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iBU88..(T2,T3)..5F..20T..DSL198808-199505

main90930-03095iBU87..V;BU6#,70,84,87..(DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,TW1,TW2)..DSL198808-199505

45411ARM, PITMAN

main45411-36380iBU60,83..T4,TW4198808-199212

main45411-36381iBU66..DM5,TW4;BU87..T4..4FC199212-199505

main45411-36381iBU66..DM5,TW4;BU87..T4..4FC199309-199505

main45411-36390iBU66,87..DYN..T4..5F..IV3199203-199212

main45411-36390iBU61,66,84,87..DM5,T4,TW4198808-199109

main45411-36390iBU66..T4;BU87..T4..5F198808-199212

main45411-36390iBU60,61,66,83,84,87..DM5,T4,TW4199109-199212

main45411-36390iBU60..DYN..T4..IV3199203-199212

main45411-36391iBU60..DYN..T4..IV3199212-199309

sub45411-37040

main45411-36391iBU60..DYN..T4..IV3199212-199309

sub45411-37040

main45411-36391iBU66,87..DYN..T4..5F..IV3199212-199309

sub45411-37040

main45411-36391iBU60,61,66,83,84,87..DM5,T4,TW4199212-199412

sub45411-37040

main45411-36470iBU78,85,88,9#198808-199212

main45411-36471iBU78,88,9#199212-199505

main45411-36490iBU88..(T2,T3)..5F..20T..DSL198808-199212

main45411-36491iBU88..(T2,T3)..5F..20T..DSL199212-199505

main45411-36510iBU87..V;BU66,68..DM1,DM2,DM3,T2,T3,TW1;BU60,61,67,70,84,87..HRF,SRF,T1,T2,T3,TW1,TW2198808-199212

main45411-36511iBU67..DMP199212-199505

main45411-36530iBU67..T3198808-199212

main45411-36530iBU87..T2;BU60,66..T3..ST;BU61,67,70,84..HRF,SRF,T2,T3;BU60,66..(T1,T2,TW1,TW2)..(CBU,IV3)198808-199212

main45411-36530iBU60..T3..ST;BU60,70..(SRF,T1,T2,TW2)..(03S,06S)198808-199109

main45411-36531iBU67..T3199212-199412

sub45411-37060

main45411-36531iBU87..T2;BU60,66..T3..ST;BU60,66..(T1,T2,TW1,TW2)..(CBU,IV3);BU61,67,70,84..(HRF,SRF,T2,T3)..(03S,06S)199212-199412

sub45411-37060

main45411-36540iBU87..V;BU66,68,87..(DM1,DM2,DM3,T3,TW1)..WT198808-199212

main45411-36540iBU66..T3..WT;BU87..T3..5F198808-199212

main45411-36541iBU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT199212-199412

sub45411-37050

main45411-36541iBU87..V;BU60,66,68,87..(DM1,DM2,DM3,T3,TW1)..WT199212-199412

sub45411-37050

main45411-36541iBU87..T3..4FC..20T199309-199412

sub45411-37050

main45411-36560iBU72,73,74198910-199212

main45411-36561iBU72,73,74199212-199412

sub45411-37030

main45411-37030iBU72,73,74199412-199505

main45411-37040iBU60,61,66,84,87..DM5,T4,TW4199412-199505

main45411-37050iBU67..DMP199412-199505

main45411-37050iBU67..DMP199412-199505

main45411-37050iBU67..DMP199412-199505

main45411-37060iBU87..T2;BU60,66..T3..ST;BU61,67,70,84..HRF,SRF,T2,T3;BU60,66..(T1,T2,TW1,TW2)..(CBU,IV3)199412-199505

9010114015

main90101-14015

9010114470

main90101-14470

9011910238

main90119-10238

9011910239

main90119-10239

9017012011

main90170-12011

9017014012

main90170-14012

9020114005

main90201-14005

9020427020

main90204-27020

30 parts on this diagram · 11 diagrams in section
