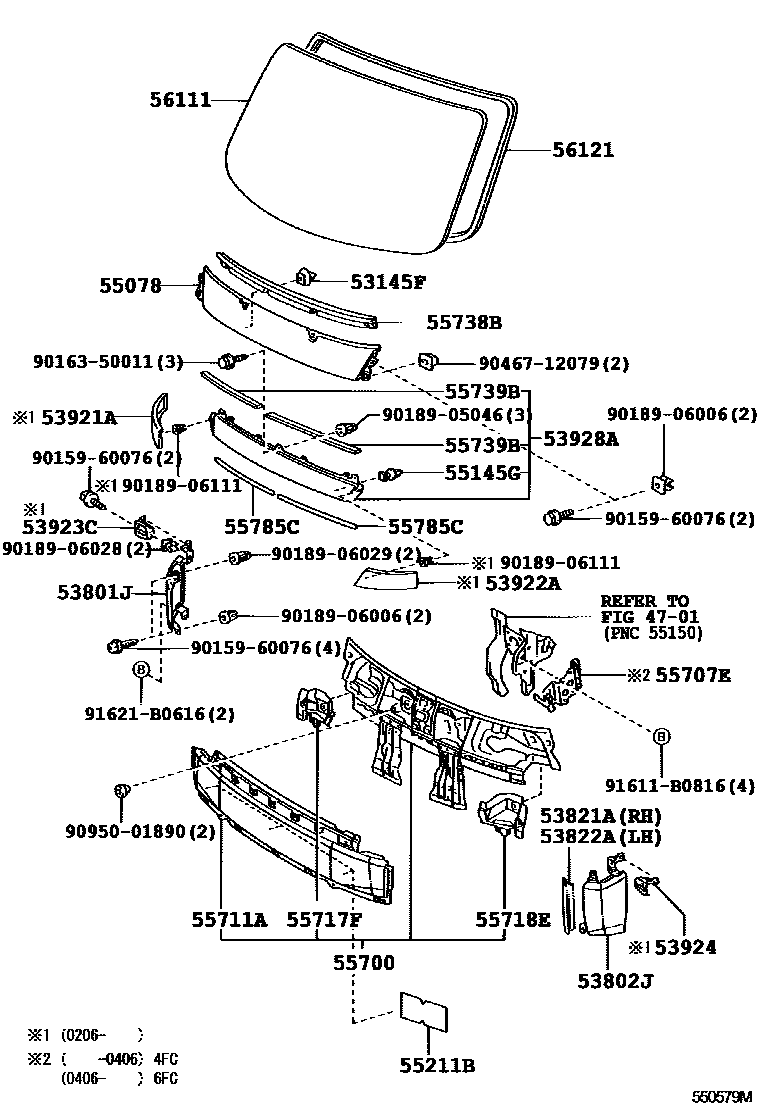

Toyota DYNA/TOYOACE — FRONT PANEL & WINDSHIELD GLASS
4701BRAKE PEDAL & BRACKET
53145FCLIP, RADIATOR GRILLE GARNISH
main90467-08208×2iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
53801JPANEL SUB-ASSY, FRONT SIDE, RH
53802JPANEL SUB-ASSY, FRONT SIDE, LH
53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH
main53821-37070iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)200105-200206
53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH
main53821-37070iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)200105-200206
53921APANEL, FRONT VALANCE, RH
53922APANEL, FRONT VALANCE, LH
53923CSUPPORT, FRONT SIDE GARNISH, RH
53924PLATE, NOISE SHUTTER SUPPORT, NO.2
53928AGARNISH, FRONT PANEL, CENTER
55078COVER SUB-ASSY, FRONT PANEL
55145GCLIP, RADIATOR GRILLE GARNISH
main53145-27010×9iXZU421..(T3,T5)..4FC;BU420,XZU411..(30T,40T)..(DSLL,TDEFI);BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
55211BSILENCER, FRONT PANEL
main55211-37030×3iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
55700PANEL ASSY, FRONT
main55700-37171iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)200011-200206
55707EBRACKET SUB-ASSY, RELAY MOUNTING
55711APANEL, FRONT, LOWER
55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH
main55717-37020iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH
main55718-37010iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
55738BPROTECTOR, FRONT PANEL COVER, NO.1
55739BPROTECTOR, FRONT PANEL COVER, NO.2
55785CPAD, FRONT PANEL COVER
main55785-37030×2iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
56111GLASS, WINDSHIELD
main56101-89103iXZU434,488;XZU404..40T..IV3;XZU414,424..(DCRTL,DCRTM)..IV3;XZU404,414,424..SCB..(DCRTJ,DCRTK,DCRTL)..CBU200801
main56101-89104iXZU434,488;XZU404..40T..IV3;XZU414,424..DCRTL..IV3;XZU404,414,424..SCB..(DCRTJ,DCRTK,DCRTL)..CBU200801
main56111-37170iXZU410;BU410,420,430,XZU382,40#,411,412,42#,430..SCB..(DSL,TDEFI)..(CBU,IV3,IV5)200206-200210
main56111-37240iXZU404..DCRUE;XZU454..DCRTJ;XZU414..DCB..DCRUE; XZU454..DCRUE;XZU414,424..SCB;XZU414..DCB..DCRTJ;XZU404,434,488..DCRTJ,DCRTK,DCRTL201005
56121WEATHERSTRIP, WINDSHIELD
main56121-37050iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
9015960076
main90159-60076
9016350011
main90163-50011
9018905046
main90189-05046
9018906006
main90189-06006
9018906028
main90189-06028
9018906029
main90189-06029
9018906111
main90189-06111
9046712079
main90467-12079
9095001890
main90950-01890
91611B0816
main91611-B0816
91621B0616
main91621-B0616
35 parts on this diagram · 5 diagrams in section
FRONT PANEL & WINDSHIELD GLASS for Toyota DYNA/TOYOACE
This section contains 63 genuine Toyota parts for the FRONT PANEL & WINDSHIELD GLASS system of the Toyota DYNA/TOYOACE. Key components include: BRAKE PEDAL & BRACKET, CLIP, RADIATOR GRILLE GARNISH, PANEL SUB-ASSY, FRONT SIDE, RH, PANEL SUB-ASSY, FRONT SIDE, LH, PROTECTOR, FRONT SIDE PANEL, NO.1 RH.
