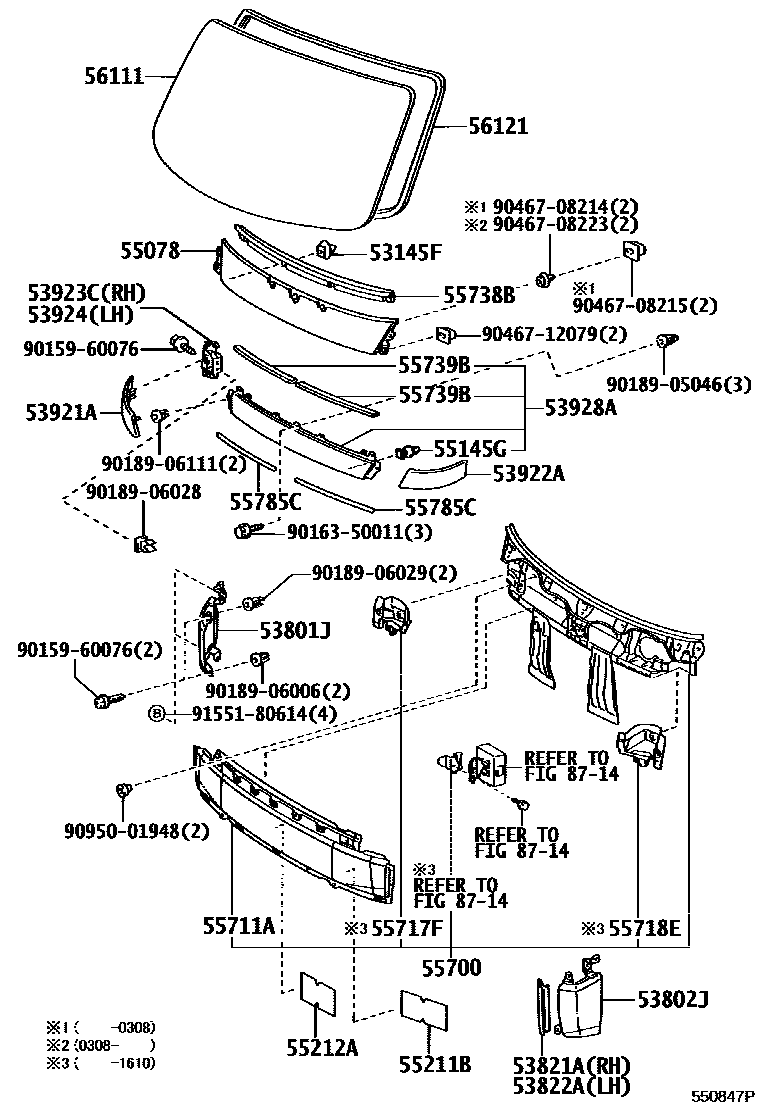

Toyota DYNA/TOYOACE — FRONT PANEL & WINDSHIELD GLASS
53145FCLIP, RADIATOR GRILLE GARNISH
main90467-08208×4iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610
53801JPANEL SUB-ASSY, FRONT SIDE, RH
main53801-37021iKDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS)200206-201610
53802JPANEL SUB-ASSY, FRONT SIDE, LH
main53802-37021iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200206-200308
main53802-37041iKDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,RZY231,281200206-200708
53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH
main53821-37070iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH
main53821-37070iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
53921APANEL, FRONT VALANCE, RH
main53921-25010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
53922APANEL, FRONT VALANCE, LH
main53922-25010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
53923CSUPPORT, FRONT SIDE GARNISH, RH
main53923-25010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
53924PLATE, NOISE SHUTTER SUPPORT, NO.2
main53924-25010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
53928AGARNISH, FRONT PANEL, CENTER
main53928-37010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
main53928-37011iKDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS)200404-201610
55078COVER SUB-ASSY, FRONT PANEL
main55078-37070iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610
55145GCLIP, RADIATOR GRILLE GARNISH
55211BSILENCER, FRONT PANEL
main55211-37030×2iLY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI200107-200407
55212ASILENCER, FRONT PANEL, LOWER
main55212-37010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
55700PANEL ASSY, FRONT
main55700-25010iKDY221..TB..IV3;KDY231..T4..MTM..IV3; KDY221..TS;KDY221..TB..CBU;KDY231..T4..CBU;KDY231..T4..ATM..IV3;KDY231,241,271,281..T2,T3,TW1,TW2,TW3,TW4,VAN200408-201008
55711APANEL, FRONT, LOWER
main55711-37050iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200503
55717FEXTENSION, FRONT PANEL REINFORCEMENT, RH
main55717-37020iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
55718EEXTENSION, FRONT PANEL REINFORCEMENT, LH
55738BPROTECTOR, FRONT PANEL COVER, NO.1
main55738-37051iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200311-201610
55739BPROTECTOR, FRONT PANEL COVER, NO.2
main55739-37070×2iKDY281;TRY220..125T,15T;KDY231,271,TRY230..T2,T3,T4,TW1,TW2,TW4;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS)200107-201610
55785CPAD, FRONT PANEL COVER
main55785-37020×2iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308
56111GLASS, WINDSHIELD
main56111-25050iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201206-201610
main56111-37120iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111
main56111-37130iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281..T2,T3,T4200308-201206
56121WEATHERSTRIP, WINDSHIELD
main56121-37031iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230200312-200710
8714HEATING & AIR CONDITIONING - COOLER UNIT
9015960076
main90159-60076
9016350011
main90163-50011
9018905046
main90189-05046
9018906006
main90189-06006
9018906028
main90189-06028
9018906029
main90189-06029
9018906111
main90189-06111
9046708214
main90467-08214
9046708215
main90467-08215
9046708223
main90467-08223
9046712079
main90467-12079
9095001948
main90950-01948
9155180614
main91551-80614
37 parts on this diagram · 3 diagrams in section
FRONT PANEL & WINDSHIELD GLASS for Toyota DYNA/TOYOACE
This section contains 66 genuine Toyota parts for the FRONT PANEL & WINDSHIELD GLASS system of the Toyota DYNA/TOYOACE. Key components include: CLIP, RADIATOR GRILLE GARNISH, PANEL SUB-ASSY, FRONT SIDE, RH, PANEL SUB-ASSY, FRONT SIDE, LH, PANEL, FRONT SIDE, RH, PANEL, FRONT SIDE, LH.
