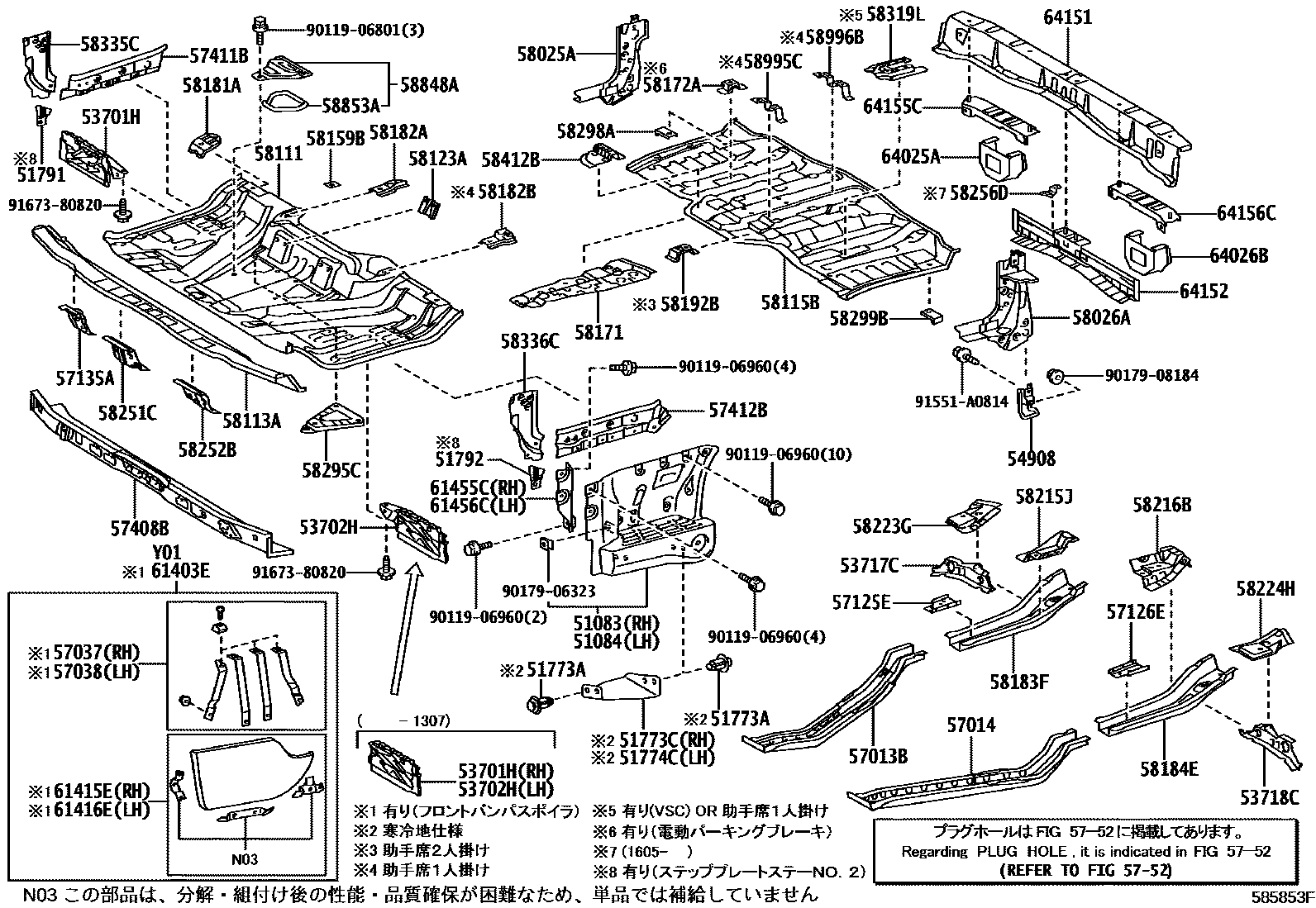

Toyota DYNA/TOYOACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51083STEP SUB-ASSY, RH
51084STEP SUB-ASSY, LH
51773ACLIP, STEP PLATE COVER
51773CCOVER, STEP PLATE, RH
51774CCOVER, STEP PLATE, LH
main51773-37030iXZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775201107-201705
51791STAY, STEP
51792STAY, STEP PLATE, NO.2
53701HAPRON SUB-ASSY, FRONT FENDER, RH
53702HAPRON SUB-ASSY, FENDER, LH
53717CAPRON, FRPNT FENDER, NO.2 RH
53718CAPRON, FRONT FENDER, NO.2 LH
54908BRACKET SUB-ASSY, TILT CAB GRIP
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
main57013-37291iXZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775201308-201705
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57037STAY SUB-ASSY, FRONT STEP, RH
57038STAY SUB-ASSY, FRONT STEP, LH
57125EREINFORCEMENT, FRONT SIDE MEMBER, RH
main57125-37040iXZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775201107-201705
57126EREINFORCEMENT, FRONT SIDE MEMBER, LH
57135ABRACKET, FRONT FLOOR SIDE, RH
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57411BMEMBER, FLOOR SIDE, INNER RH
57412BMEMBER, FLOOR SIDE, INNER LH
main57412-37060iXZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775201107-201705
5752HOLE PLUG
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58111PAN, FRONT FLOOR
main58111-37830iXZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)201107-201705
58113APANEL, FRONT FLOOR, CENTER
58115BPANEL, FRONT FLOOR, REAR
main58115-37231supersedes 58115-37320iXZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)201302-201705
main58115-37240iXZU700..DM7..IV3;XZC710,XZU700,710,720,730,775..SCB..(T3,T4,T5); XZU700..DM7..IV3;XZC710,XZU700,710,720,730..SCB..(T3,T4,T5)..MTM201107-201301
main58115-37241supersedes 58115-37231iXZC710,XZU70#,71#,72#,73#,775..SCB; XZC710,XZU70#,71#,72#,73#..SCB..MTM201705-201905
main58115-37320iXZC710,XZU700,710,720,730..SCB..MTM..(DCRTJ,DCRVT,DCRVU); XZU702,71#,72#..6F..(DCRTJ,DCRTK); XZU71#,72#,732..DCRTL; XZU710,720..6F..DCRTK;XZU702,712,722,775..MTM..(DCRTJ,DCRTK); XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU201705-201905
main58115-37330iXZC710,XZU700,710,720,730..SCB..MTM..(DCRTJ,DCRVT,DCRVU); XZU702,71#,72#..6F..(DCRTJ,DCRTK); XZU71#,72#,732..DCRTL; XZU710,720..6F..DCRTK;XZU702,712,722,775..MTM..(DCRTJ,DCRTK); XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU201705-201905
58123ASUPPORT, SHIFT & SELECT LEVER
58159BSHEET, FRONT FLOOR
58171REINFORCEMENT, PARKING BRAKE BASE
58172APLATE, PARKING BRAKE MOUNTING
58181ARETAINER, SEAT RAIL, FRONT
main58181-37090iXZC710,XZU70#,71#,72#,775..DCRWD,DCVTO; XZC710,XZU70#,71#,72#,775..SCB..(DCRWD,DCVTO)201905
58182ARETAINER, SEAT RAIL, NO.2
58182BRETAINER, SEAT RAIL, FRONT LH
58183FREINFORCEMENT, REAR MOUNTING, RH
58184EREINFORCEMENT, REAR MOUNTING, LH
58192BPLATE, FRONT FLOOR, REAR
58215JBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58223GREINFORCEMENT, SEAT SET, NO.1
main58223-37070iXZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775201107-201705
58224HREINFORCEMENT, SEAT SET, NO.2
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58256DBRACKET, FRONT FLOOR HARNESS
58295CBRACKET, FLOOR SHIFT LEVER, NO.1
main58295-37110iXZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775201107-201705
58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH
58319LBRACKET, FRONT FLOOR SIDE PANEL
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
58412BREINFORCEMENT, ENGINE SUB COVER
58848ACOVER, SHIFT LEVER HOLE
58853APACKING, SHIFT LEVER HOLE
58995CBRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-37060iXZC710,XZU70#,71#,72#,73#,775..SCB; XZC710,XZU70#,71#,72#,73#..SCB..MTM; XZC710,XZU700,710,720,730..SCB..MTM..(DCRTJ,DCRVT,DCRVU); XZU702,71#,72#..6F..(DCRTJ,DCRTK); XZU71#,72#,732..DCRTL; XZU710,720..6F..DCRTK;XZU702,712,722,775..MTM..(DCRTJ,DCRTK); XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU201705-201905
58996BBRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-37060iXZC710,XZU70#,71#,72#,73#,775..SCB; XZC710,XZU70#,71#,72#,73#..SCB..MTM; XZC710,XZU700,710,720,730..SCB..MTM..(DCRTJ,DCRVT,DCRVU); XZU702,71#,72#..6F..(DCRTJ,DCRTK); XZU71#,72#,732..DCRTL; XZU710,720..6F..DCRTK;XZU702,712,722,775..MTM..(DCRTJ,DCRTK); XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU201705-201905
61403EPANEL SUB-ASSY, FRONT STEP
main61403-37110-B1iXZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZU710..SCB..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5201107-201705
61415EPANEL, FRONT STEP UNDER, RH
61416EPANEL, FRONT STEP UNDER, LH
main61416-37010-A0iXZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5201107-201705
61455CRETAINER, FRONT STEP, RH
61456CRETAINER, FRONT STEP, LH
64025ABRACKET SUB-ASSY, REAR MOUNTING, RH
64026BBRACKET SUB-ASSY, REAR MOUNTING, LH
64151FRAME, BACK
64152FRAME, BACK, LOWER
main64106-37040iXZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)201107-201705
64155CPLATE, BACK FRAME, RH
64156CPLATE, BACK FRAME, LH
main64156-37090iXZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK)201107-201705
main64156-37101iXZC710,XZU70#,71#,72#,73#,775..SCB..(DCVUO,DCWDO); XZC710,XZU70#,71#,72#,73#,775..SCB..(DCVUO,DCWDO)..(CBU,IV3,IV5)202411
9011906801
main90119-06801
9011906960
main90119-06960
9017906323
main90179-06323
9017908184
main90179-08184
91551A0814
main91551-A0814
9167380820
main91673-80820
73 parts on this diagram · 5 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA/TOYOACE
This section contains 121 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA/TOYOACE. Key components include: STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, BRACKET, ENGINE SIDE COVER, CLIP, STEP PLATE COVER, COVER, STEP PLATE, RH.
