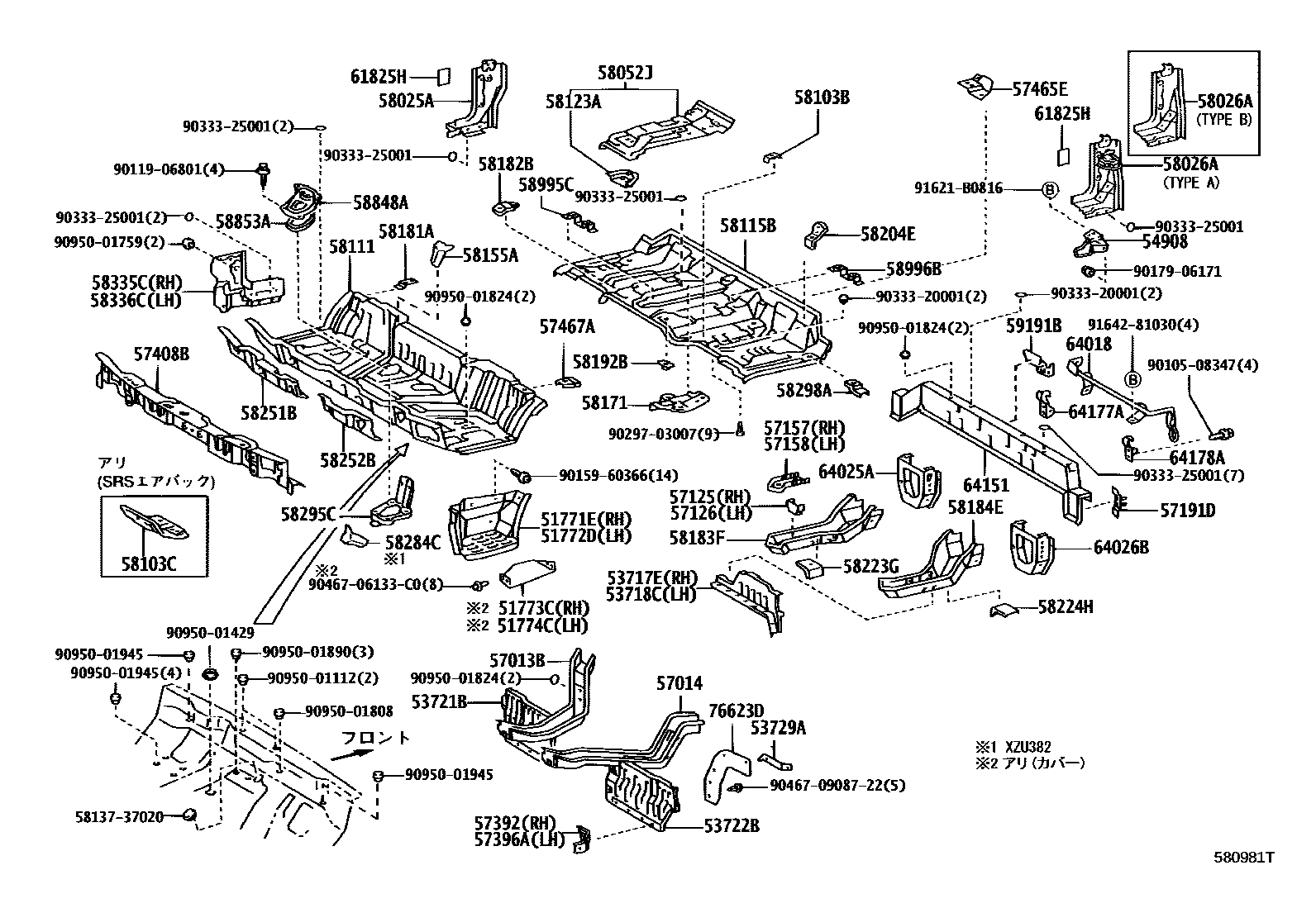

Toyota DYNA/TOYOACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51771EPLATE, STEP, RH
51772DPLATE, STEP, LH
main51772-37090iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
51773CCOVER, STEP PLATE, RH
51774CCOVER, STEP PLATE, LH
53717EAPRON, FRONT FENDER, NO.2 RH
53718CAPRON, FRONT FENDER, NO.2 LH
53721BAPRON SUB-ASSY, FENDER SIDE, RH
53722BAPRON SUB-ASSY, FENDER SIDE, LH
main53722-37050iXZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430199905-200406
53729ABRACKET, FENDER APRON, LH
54908BRACKET SUB-ASSY, TILT CAB GRIP
main54908-37020iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..SCB..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
57013BMEMBER SUB-ASSY, FLOOR, FRONT RH
main57013-37150iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T199905-200312
57014MEMBER SUB-ASSY, FLOOR, FRONT LH
57125BRACKET, FRONT SIDE MEMBER, RH
57126BRACKET, FRONT SIDE MEMBER, LH
main57126-37020iXZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430199905-200406
57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57191DBRACKET, FLOOR NO.1 CROSSMEMBER
57392PLATE, FRONT STEP, NO.2 RH
main57392-37020iXZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430199905-200406
57396APLATE, FRONT STEP, NO.2 LH
main57396-37020iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T199905-200406
57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS
57465ERETAINER, BELT ANCHOR, NO.2
main57405-37060iXZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430199905-200406
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
main57467-37010iXZU411..4FC..20T;XZU412,421..(T2,T4)..(4FC,5F);XZU412,421,430..6F..(30T,35T,40T);BU410,420,430,XZU401,402..20T,30T,35T;XZU400,410,411,420..295T,30T,35T,40T,40TOV199905-200206
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58052JREINFORCEMENT SUB-ASSY, ENGINE SUB COVER
58103BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH
58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT
main58103-37040iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
58111PAN, FRONT FLOOR
main58111-37342iXZU421..CBU;XZU411..T3..6FC;XZU424..20T,30T;XZU421..6FC..IV3;XZU424..35T..CBU;XZU424..6FC..35T;XZU388,401,413,415,423,433;XZU404,411,414..(DM7,T3)..CBU;XZU404,411,414..SCB..(T2,T4,T5)200608-200610
main58111-37361iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T200011-200406
main58111-37550iXZU404..T3..CBU;XZU414..40T..DCRTL..CBU;XZU424,434..(35T,40T)..CBU;XZU414..(35T,40T)..DCRTK..CBU;XZU414,424..T3..30T..(DCRTJ,DCRTK,DCRTL)..CBU200610-201106
58115BPANEL, FRONT FLOOR, REAR
main58115-37032iXZU411..T3..DSL;XZU411..T2,T4,T5;XZU412..SCB..DSL;BU410,420,430,BZU410,XZU40#,410,42#,430..(T2,T3,T4,T5)..(CBU,IV3)200206-200406
58123ASUPPORT, SHIFT & SELECT LEVER
58155AINSULATOR, FRONT FLOOR HEAT, NO.3
58171REINFORCEMENT, PARKING BRAKE BASE
58181ARETAINER, SEAT RAIL, FRONT
main58181-37070iXZU421..(T3,T5)..4FC;BU420,XZU411..(30T,40T)..(DSLL,TDEFI);BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
58182BRETAINER, SEAT RAIL, FRONT LH
58183FREINFORCEMENT, REAR MOUNTING, RH
main58183-37081iXZU410..IV6;XZU412..DCB;XZU382,400..20T,30T,40T; XZU411..T3..DSL;XZU411..T2,T4,T5;BU410,420,430,BZU410,XZU40#,410,412,42#,430..SCB..(T2,T3,T4,T5)..(CBU,IV3); XZU411..T3..DSLL200211-200406
58184EREINFORCEMENT, REAR MOUNTING, LH
main58184-37101iXZU410..IV6;XZU382,400..20T,30T,40T; XZU411..T3..DSL;XZU411..T2,T4,T5;BU410,420,430,BZU410,XZU40#,410,412,42#,430..SCB..(T2,T3,T4,T5)..(CBU,IV3); XZU411..T3..DSLL200211-200406
58192BPLATE, FRONT FLOOR, REAR
58204EBRACKET SUB-ASSY, FRONT SEAT
58223GREINFORCEMENT, SEAT SET, NO.1
main58223-37030iXZU421..(T3,T5)..4FC;BU420,XZU411..(30T,40T)..(DSLL,TDEFI);BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
58224HREINFORCEMENT, SEAT SET, NO.2
58251BBRACE, FLOOR PANEL, FRONT
58252BBRACE, FLOOR PANEL, FRONT LH
58284CBRACKET, FLOOR SHIFT LINK
58295CBRACKET, FLOOR SHIFT LEVER, NO.1
58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58335CPLATE, FLOOR SIDE, FRONT RH
58336CPLATE, FLOOR SIDE, FRONT LH
main58336-37031iXZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430200101-200406
58848ACOVER, SHIFT LEVER HOLE
58853APACKING, SHIFT LEVER HOLE
main58853-37020iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
58995CBRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-37030iXZU421..(T3,T5)..4FC;BU420,XZU411..(30T,40T)..(DSLL,TDEFI);BU400,XZU411,412,421,430..SCB..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
58996BBRACKET, CONSOLE BOX MOUNTING, NO.2
59191BBRACKET, NOISE SHUTTER, NO.1
61825HPAD, NOISE SHUTTER, NO.2
main61825-34010iXZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T199905-200406
64018BAR SUB-ASSY, BODY
64025ABRACKET SUB-ASSY, REAR MOUNTING, RH
main64171-37010iXZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU40#,410,412,42#,430199905-200212
main64171-37011iXZU400..40T;XZU410..IV6;XZU412..DCB; XZU411..T3..DSL;XZU411..T2,T4,T5;BU410,420,430,BZU410,XZU40#,410,412,42#,430..SCB..(T2,T3,T4,T5)..(CBU,IV3); XZU411..T3..DSLL200212-200406
64026BBRACKET SUB-ASSY, REAR MOUNTING, LH
64151FRAME, BACK
64177ASTOPPER, REAR MOUNTING BRACKET, RH
main64177-37030iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..SCB..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
64178ASTOPPER, REAR MOUNTING BRACKET, LH
76623DMUDGUARD, FRONT FENDER, FRONT RH
5813737020BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
main58137-37020
9010508347
main90105-08347
9011906801
main90119-06801
9015960366
main90159-60366
9017906171
main90179-06171
9029703007
main90297-03007
9033320001
main90333-20001
9033325001
main90333-25001
9046706133C0
main90467-06133C0
904670908722
main90467-0908722
9095001112
main90950-01112
9095001429
main90950-01429
9095001759
main90950-01759
9095001808
main90950-01808
9095001824
main90950-01824
9095001890
main90950-01890
9095001945
main90950-01945
91621B0816
main91621-B0816
9164281030
main91642-81030
79 parts on this diagram · 9 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota DYNA/TOYOACE
This section contains 129 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota DYNA/TOYOACE. Key components include: PLATE, STEP, RH, BRACKET, TILT CAB STAY, PLATE, STEP, LH, COVER, STEP PLATE, RH, COVER, STEP PLATE, LH.
