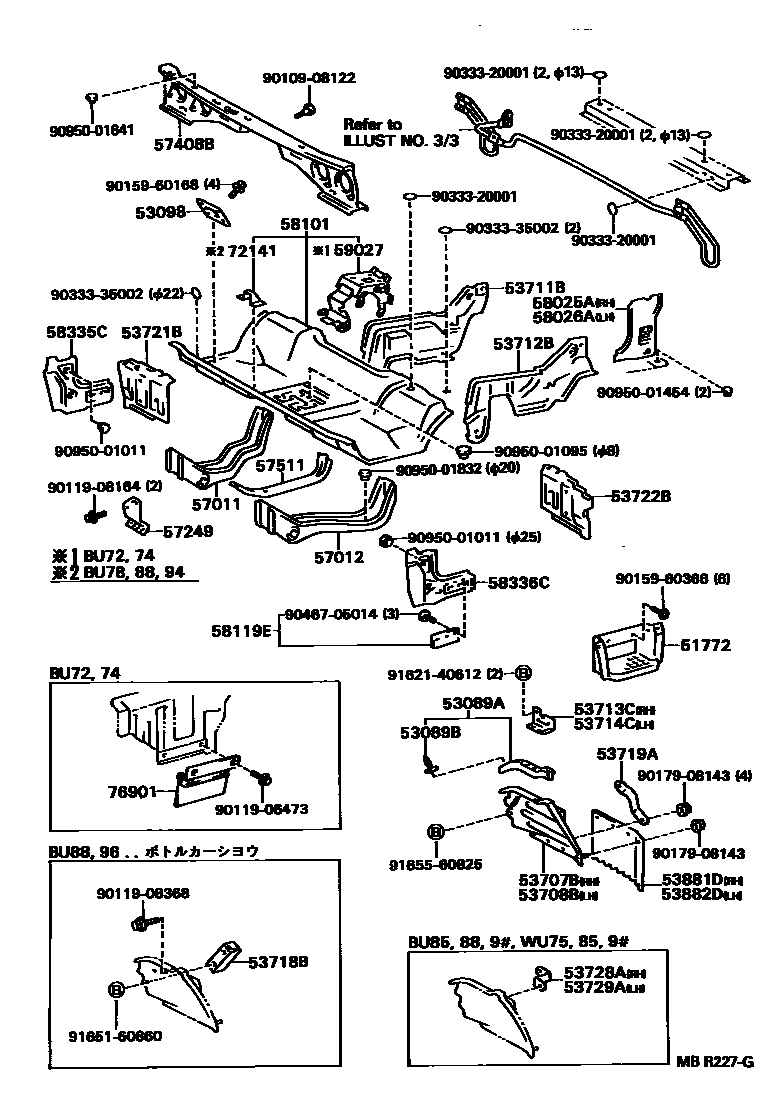

Toyota DYNA/TOYOACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0004 1 0005 1 0006 1

51772PLATE, STEP

main51771-95406iBU88..06S;BU72..DM5,T4;BU6#,70,83,84,87198808-199505

main51771-95407iBU88..03S;BU73,74,78,9#;BU72..DM3,DM4,T3198910-199505

main51772-95406iBU6#,70,8#,9#198808-199505

main51772-95407iBU88..03S;BU73,74,78,9#;BU72..DM3,DM4,T3198910-199505

53089AMUDGUARD SUB-ASSY, FRONT

main53089-95400iBU73,96..DSL;BU96..5F..TD;BU6#,72,74,78,8#,90,91,94,95..03S198808-199505

main53089-95400iBU96..5F..IV3;BU88..T4..30T..IV3198811-199505

main53089-95401iBU96..5F..IV3;BU88..T4..30T..IV3198811-199505

53089BCLIP, FRONT MUDGUARD

main67868-95401iBU96..DSL;BU96..5F..TD;BU6#,72,73,74,78,8#,90,91,94,95..03S198808-199505

main67868-95401iBU96..4FC..TD198811-199505

main90467-06039-13iBU96..DYN..5F..IV3;BU88..DYN..T4..30T..IV3199109-199505

sub90467-06039

main90467-06039-13iBU96..DYN..5F..IV3;BU88..DYN..T4..30T..IV3198811-199109

sub90467-06039

main90467-06039-13iBU96..TOY..5F..IV3;BU88..TOY..T4..30T..IV3198811-199505

sub90467-06039

53098COVER SUB-ASSY, AIR CLEANER INLET HOLE

main53098-95402iBU67..DM1198910-199505

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-92604iBU88..06S198808-198902

sub53707-92608

main53707-92607iBU70198808-199505

main53707-92608iBU88..06S198902-199505

main53707-92609iBU73..06S199005-199505

main53715-95402iBU6#,72,73,74,83,84,87..03S198808-199505

main53715-95403iBU78,85,88,9#..03S198808-199505

main53715-95405iBU60,66,87..06S198808-199505

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-92604iBU88..06S198808-198902

sub53708-92608

main53708-92607iBU70198808-199505

main53708-92608iBU88..06S198902-199505

main53708-92609iBU73..06S199005-199505

sub53708-37020

main53716-95402iBU6#,72,73,74,83,84,87..03S198808-199505

main53716-95403iBU78,85,88,9#..03S198808-199505

main53716-95404iBU60,66,87..06S198808-199505

sub53716-25010

sub90950-01029

53711BAPRON, FRONT FENDER, FRONT RH

main53711-95410iBU6#,70,72,73,74,83,84,87198808-199505

main53711-95411iBU78,85,88,9#198808-199505

53712BAPRON, FRONT FENDER, FRONT LH

main53712-95414iBU6#,70,72,73,74,83,84,87198808-199505

sub53712-95416

sub90333-40001

main53712-95415iBU78,85,88,9#198808-199505

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-95406iBU6#,72,73,74,83,84,87..03S198808-199505

sub53713-37010

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-95406iBU6#,72,73,74,83,84,87..03S198808-199505

sub53714-37010

53718BGUSSET, FENDER APRON, LH

main53718-95416iBU96..5F..IV3;BU88..T4..30T..IV3198811-199505

53719ABRACE, FENDER APRON

main53719-92600iBU60,66,70,87..HRF,SRF,TW1,TW2,TW4198808-199505

main53719-92602iBU73..06S199005-199505

main53719-92603iBU88..06S198808-199505

main53719-95403iBU96..DSL;BU96..5F..TD;BU78,85,88,90,91,94,95..03S198808-199505

main53719-95404iBU96..5F..IV3;BU88..T4..30T..IV3198811-199505

main53719-95404iBU96..4FC..TD199001-199505

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53707-95400iBU78,85,88,9#198808-199505

sub53707-37030

main53721-95402iBU6#,70,83,84,87198808-199505

sub53721-37010

main53721-95404iBU72,73,74198910-199505

sub53721-37020

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53708-95400iBU78,85,88,9#198808-199505

sub53708-37040

main53722-95403iBU6#,70,72,73,74,83,84,87198808-199505

sub53722-37020

53728ABRACKET, FENDER APRON, RH

main53728-95400iBU78,85,88,9#..03S198808-199505

53729ABRACKET, FENDER APRON, LH

main53729-95400iBU96..DSL;BU96..5F..TD;BU78,85,88,90,91,94,95..03S198808-199505

main53729-95401iBU96..5F..IV3;BU88..T4..30T..IV3198811-199505

main53729-95401iBU96..4FC..TD199001-199505

53881DMUDGUARD, FRONT RH

main53881-92600iBU88..06S198808-199505

main53881-92604iBU70198808-199505

main53881-95400iBU6#,72,73,74,83,84,87..03S198808-199505

main53881-95401iBU60,66,73,87..06S198808-199505

main53881-95402iBU78,85,88,9#..03S198808-199505

53882DMUDGUARD, FRONT LH

main53881-92600iBU88..06S198808-199505

main53881-92602iBU73..06S199005-199505

main53881-92604iBU70198808-199505

main53881-95400iBU6#,72,73,74,83,84,87..03S198808-199505

main53881-95401iBU60,66,87..06S198808-199505

main53881-95402iBU78,85,88,9#..03S198808-199505

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-92600iBU73..06S199005-199505

main57011-95400iBU73..03S;BU6#,70,72,74,78,8#,9#198808-199505

57012MENBER SUB-ASSY

main57012-92602iBU88..06S198808-198910

sub57012-95400

main57012-95400iBU6#,83,84,87..03S198808-198904

main57012-95403iBU6#,72,73,74,83,84,87..03S198904-199505

sub57012-95400

main57012-95404iBU85,88,9#..03S198808-198904

main57012-95405iBU60,66,70,87..HRF,SRF,TW1,TW2,TW4198904-199505

sub57012-95400

main57012-95406iBU78,85,88,9#..03S198904-199505

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-95400iBU6#,7#,8#,9#..5F198808-199505

main57249-95402iBU66,67,87,88,96..4FC198808-199505

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37020iBU6#,70,72,73,74,83,84,87199201-199505

main57408-37030iBU78,88,9#199201-199505

main57408-95427iBU6#,70,72,73,74,83,84,87198808-199201

sub57408-37020

sub90950-01275

main57408-95428iBU78,85,88,9#198808-199201

sub57408-37030

sub90950-01275

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-95406iBU78,85,88,9#198808-199505

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-37010iBU60,66,73,87,88..06S199309-199505

main58025-95400iBU60,66,73,87,88..06S198808-199309

sub58025-37010

sub90950-01029

main58271-37010iBU6#,72,73,74,78,8#,9#..03S199309-199505

sub58271-37011

sub90333-20001

main58271-95401iBU87..V;BU87..275,30T;BU87..T4..4FC..IV3;BU87..5F..03S..20T;BU60,61,66,67,84..TR..03S199309-199505

sub58271-37010

sub90950-01029

main58271-95401iBU6#,72,73,74,78,8#,9#..03S198808-199309

sub58271-37010

sub90950-01029

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95401iBU60,66,73,87,88..06S198808-199505

main58037-95400iBU78,9#..DSL;BU88..T4..30T;BU88..T3..30T..DSL..IV3;BU88..03S..(20T,275)..DSL;BU88..DYN..T3..30T..DSL..CBU199111-199505

main58037-95400iBU78,88,91,94,96..03S..DSL198808-199111

main58037-95400iBU96..TOY..4FC..TD199309-199505

main58037-95401iBU78,88..03S..DSL198808-199505

main58272-95403iBU88,91,94,96..TD;BU6#,72,73,74,83,84,85,87,90,95..03S198808-199505

sub58272-37010

sub90333-20001

main58272-95404iBU60,61,67..T2,T3,T4;BU66,68..(DM1,T2,T3,T4)..20T198808-199505

58101PAN SUB-ASSY, FRONT FLOOR

main58101-92600iBU73199005-199105

sub58111-95420

sub58106-95A00

sub58251-95400

sub58252-95400

sub59027-95400

sub94220-00600

sub94220-00800

main58101-92600iBU73..06S199105-199505

sub58111-95420

sub58106-95A00

sub58251-95400

sub58252-95400

sub59027-95400

sub94220-00600

sub94220-00800

main58101-95440iBU78,88,94..03S..DSL198910-199111

sub58111-95414

sub58116-95400

sub58251-95403

sub58252-95403

sub72141-95401

sub94220-00600

sub94220-00800

main58101-95444iBU78,88,9#..03S199111-199505

sub58111-95415

sub58116-95400

sub58251-95403

sub58252-95403

sub72141-95401

sub94220-00600

sub94220-00800

main58101-95444iBU78,88,94..03S..DSL198910-199111

sub58111-95415

sub58116-95400

sub58251-95403

sub58252-95403

sub72141-95401

sub94220-00600

sub94220-00800

main58101-95448iBU6#,70,83,84,87198808-199505

main58101-95449iBU88..06S198808-199112

sub58111-95414

sub58116-95400

sub58251-95403

sub58252-95403

sub94220-00600

sub94220-00800

main58101-95449iBU88..06S198808-199112

sub58111-95414

sub58116-95400

sub58251-95403

sub58252-95403

sub94220-00600

sub94220-00800

main58101-95450iBU88..TOY..06S198808-199112

sub58111-95415

sub58116-95400

sub58251-95403

sub58252-95403

sub90174-06002

sub90174-08008

main58101-95450iBU88..TOY..T3..30T..DSL..CBU199111-199505

sub58111-95415

sub58116-95400

sub58251-95403

sub58252-95403

sub90174-06002

sub90174-08008

main58101-95450iBU78,9#;BU88..20T,275;BU88..T4..30T;BU88..T3..30T..IV3;BU88..DYN..T3..30T..CBU;BU88..TOY..30T..TD..CBU199112-199505

sub58111-95415

sub58116-95400

sub58251-95403

sub58252-95403

sub90174-06002

sub90174-08008

main58101-95455iBU72,74198910-199505

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400iBU6#,7#,8#,9#198808-199505

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iBU88..06S;BU6#,83,84,87..03S198808-199505

main58335-95402iBU60,61,67..T2,T3,T4;BU66,68..(DM1,T2,T3,T4)..20T198808-199011

sub58335-95401

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iBU88..06S;BU6#,83,84,87..03S198808-199505

main58336-95402iBU88..TOY..06S198808-199011

sub58336-95401

59027BRACKET SUB-ASSY, FLOOR SHIFT LEVER BASE

main59027-95400iBU72,73,74198910-199505

72141BRACKET, SEAT TRACK, LOWER FRONT

main72141-95400iBU78,88,94..03S..DSL198910-199505

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-95400iBU72,73,74198910-199505

sub76901-37010

9010908122

main90109-08122

9011906473

main90119-06473

9011908164

main90119-08164

9011908368

main90119-08368

9015960168

main90159-60168

9015960366

main90159-60366

9017908143

main90179-08143

9033320001

main90333-20001

9033335002

main90333-35002

9046705014

main90467-05014

9095001011

main90950-01011

9095001095

main90950-01095

9095001454

main90950-01454

9095001641

main90950-01641

9095001832

main90950-01832

9162140612

main91621-40612

9165160860

main91651-60860

9165560825

main91655-60825

50 parts on this diagram · 5 diagrams in section
