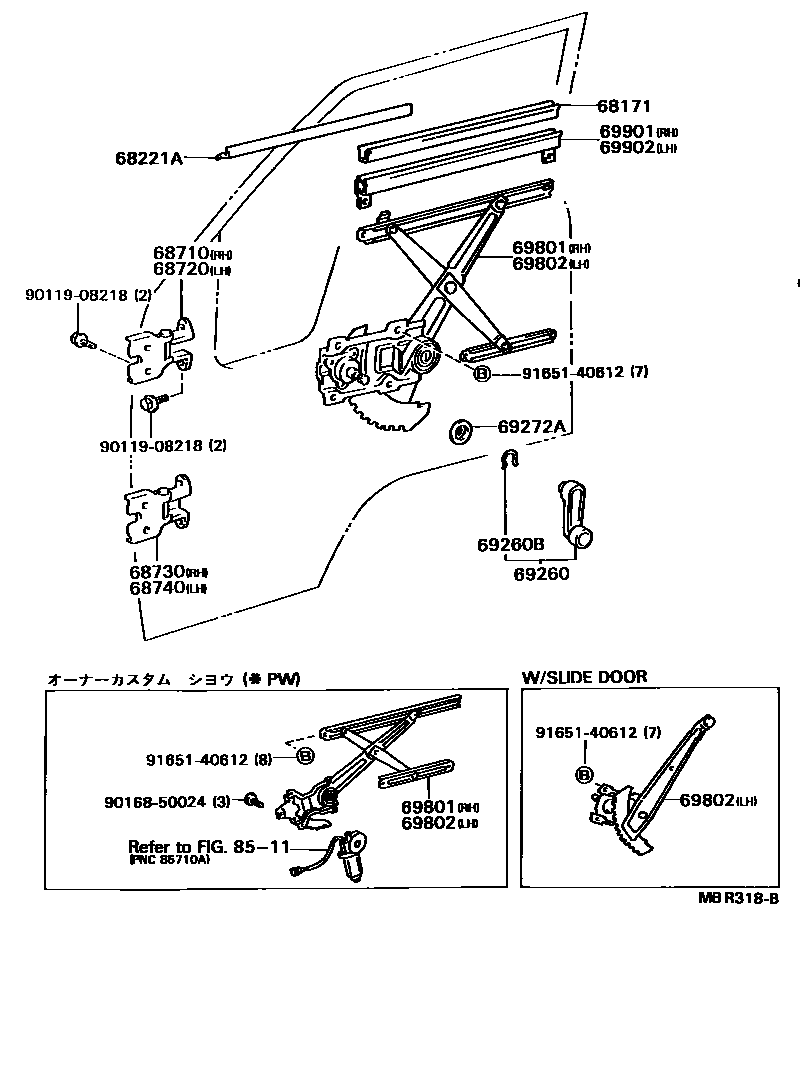

Toyota DYNA/TOYOACE — FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-22010iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

sub69971-95110

main68173-22010iBU6#,7#,8#,9#198808-199505

sub69971-95110

main68219-95400iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

68221AWEATHERSTRIP, FRONT DOOR GLASS DRAIN

main68221-95401iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95403iBU6#,7#,8#,9#198808-199505

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95403iBU6#,7#,8#,9#198808-199505

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95403iBU6#,7#,8#,9#198808-199505

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95403iBU6#,7#,8#,9#198808-199505

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-06iBU6#,7#,8#,9#..DYN198808-199109

BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-08iBU6#,7#,8#,9#199109-199308

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-54iBU6#,72,74,78,8#,9#..TOY198808-199109

BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-B1iBU6#,7#,8#,9#199308-199505

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iBU6#,7#,8#,9#198808-199505

69272APLATE, DOOR WINDOW REGULATOR HANDLE

main69272-30010-08iBU6#,7#,8#,9#199109-199505

NATURAL WHITE,TRIM1#

sub69272-30010

main69272-30010-08iBU6#,72,74,78,8#,9#..TOY198808-199109

NATURAL WHITE,TRIM8#

sub69272-30010

main69272-30010-08iBU6#,72,74,78,8#,9#..TOY198808-199109

NATURAL WHITE,TRIM4#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-95401iBU73,88..03S;BU6#,72,74,78,84,87,9#..CBU,IV3198808-199505

main69810-95407iBU6#,7#,8#,9#198808-199505

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-95401iBU96..4FC..TD;BU87,96..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T3,T4;BU67,72,74,78,85,88,90,91,94,95..03S198808-199505

main69820-95406iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

main69820-95409iBU6#,7#,8#,9#198808-199505

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95404iBU6#,7#,8#,9#198808-199505

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95403iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

main69901-95404iBU6#,7#,8#,9#198808-199505

8511

9011908218

main90119-08218

9016850024

main90168-50024

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
