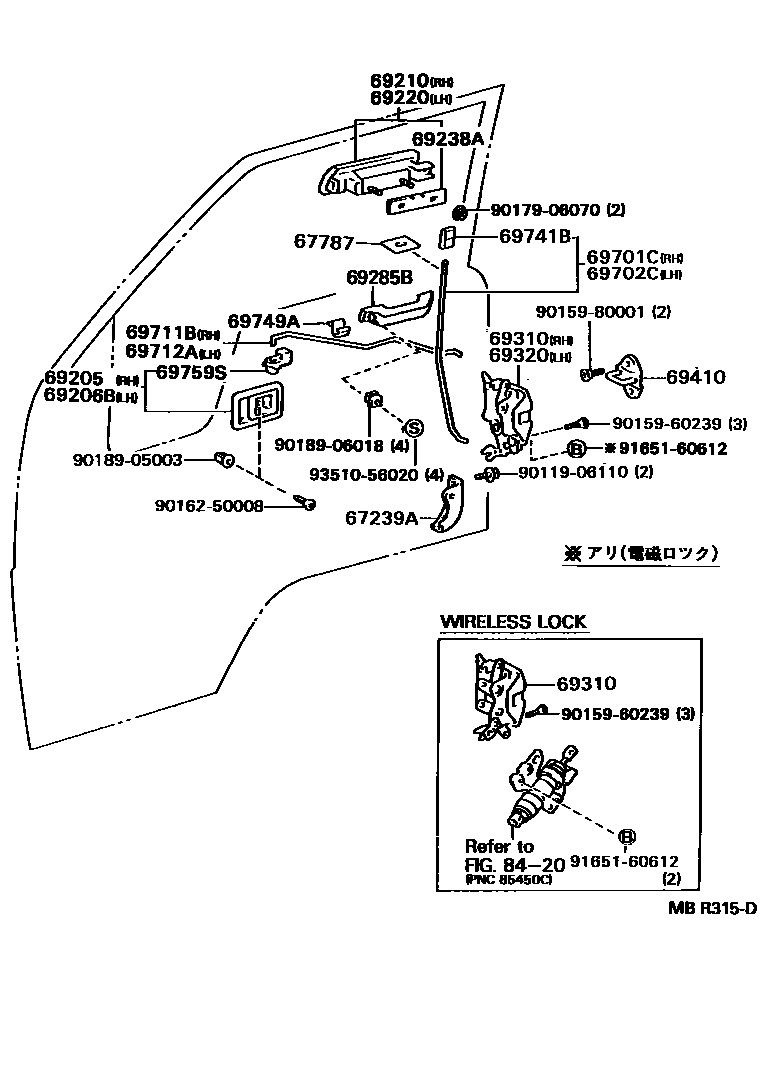

Toyota DYNA/TOYOACE — FRONT DOOR LOCK & HANDLE

0001 1 0002 1

67239AWEIGHT, FRONT DOOR

main67239-95401iBU6#,72,73,74,83,84,87..03S198808-199505

67787SILENCER, FRONT DOOR LOCKING BUTTON KNOB

main67787-37020iBU6#,7#,8#,9#199503-199505

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-14iBU6#,72,74,78,8#,9#..TOY198808-199109

BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69205-10040-16iBU6#,7#,8#,9#..DYN198808-199109

BROWN,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-B1iBU6#,7#,8#,9#199109-199505

GRAY,TRIM1#

sub69205-10040

sub69205-10030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-14iBU6#,72,74,78,8#,9#..TOY198808-199109

BLUE,TRIM8#

sub69206-10040

sub69206-10030

main69206-10040-16iBU6#,7#,8#,9#..DYN198808-199109

BROWN,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-B1iBU6#,7#,8#,9#199109-199505

GRAY,TRIM1#

sub69206-10040

sub69206-10030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95400iBU6#,7#,8#,9#198808-199505

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95400iBU6#,7#,8#,9#198808-199505

main69220-95404iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

sub69220-37040

69238APAD, DOOR OUTSIDE HANDLE

main69238-95J00iBU6#,7#,8#,9#198808-199505

69285BHANDLE, PULL

main69285-95404-04iBU66..06S198808

BLUE,BLUE,TRIM4#

sub69285-95404

main69285-95404-06iBU66..06S198808

BROWN,BROWN,TRIM8#

sub69285-95404

main69285-95700-B0iBU60,66,73,87,88..06S199109-199505

GRAY,TRIM1#

sub69285-95404

sub69285-95700

69310LOCK ASSY, FRONT DOOR, RH

main69310-37010iBU6#,7#,8#,9#..(DSL,TD)..(CBU,IV3)199109-199505

main69310-95409iBU6#,7#,8#,9#198808-199505

main69310-95410iBU60,66,88..(T1,TW1,TW2,TW4)..(CBU,IV3);BU70,72,73,74,83,84,87..(TR,V)..(CBU,IV3)198808-199505

69320LOCK ASSY, FRONT DOOR, LH

main69320-37010iBU6#,7#,8#,9#..(DSL,TD)..(CBU,IV3)199008-199505

main69320-95406iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

main69320-95408iBU6#,7#,8#,9#198808-199505

main69340-95401iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-89103iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

main69410-89103iBU6#,7#,8#,9#198808-199505

main69410-95401iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

main69420-95401iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95400-01iBU6#,7#,8#,9#199109-199505

BLACK,TRIM1#

main69701-95400-01iBU6#,72,74,78,8#,9#..TOY198808-199109

BLACK,TRIM8#

main69701-95400-01iBU6#,72,74,78,8#,9#..TOY198808-199109

BLACK,TRIM4#

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95400-01iBU6#,7#,8#,9#..DYN198808-199109

BLACK,TRIM8#

main69702-95400-01iBU6#,7#,8#,9#..DYN198808-199109

BLACK,TRIM4#

main69702-95400-01iBU6#,7#,8#,9#199109-199505

BLACK,TRIM1#

69711LINK, FRONT SLIDE DOOR KEY CYLINDER

main69711-95402iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-95403iBU6#,7#,8#,9#198808-199505

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-95401iBU6#,7#,8#,9#198808-199505

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20020-01iBU60,61,67,78..DYN..(T2,T3,T4);BU66,88..DYN..TR..03S..20T..DSL198808-199008

sub69741-20020

sub69741-32010

main69741-20020-01iBU60,61,67,78..DYN..(T2,T3,T4);BU66,88..DYN..TR..03S..20T..DSL198808-199008

sub69741-20020

sub69741-32010

main69741-20020-01iBU60,61,67,78..DYN..(T2,T3,T4);BU66,88..DYN..TR..03S..20T..DSL198808-199008

sub69741-20020

sub69741-32010

main69741-20020-01iBU60,61,67,78..DYN..(T2,T3,T4);BU66,88..DYN..TR..03S..20T..DSL198808-199008

sub69741-20020

sub69741-32010

main69741-20020-01iBU60..TOY..T1;BU72,74,83,84,87..TOY..TR..03S198808-199008

sub69741-20020

sub69741-32010

main69741-20020-01iBU60..TOY..T1;BU72,74,83,84,87..TOY..TR..03S198808-199008

sub69741-20020

sub69741-32010

main69741-20020-01iBU6#,72,74,78,8#,9#..TOY198808-199109

BLACK,TRIM8#

sub69741-20020

sub69741-32010

main69741-20020-01iBU6#,72,74,78,8#,9#..TOY198808-199109

BLACK,TRIM4#

sub69741-20020

sub69741-32010

main69741-20020-01iBU67..DYN..T3;BU66..DYN..(DM1,T2,T3,T4)..20T;BU60,61,68,78,88..DYN..(DM1,T2,T3,T4)..DSL199008-199109

sub69741-20020

sub69741-32010

main69741-20020-01iBU67..DYN..T3;BU66..DYN..(DM1,T2,T3,T4)..20T;BU60,61,68,78,88..DYN..(DM1,T2,T3,T4)..DSL199008-199109

sub69741-20020

sub69741-32010

main69741-20020-01iBU67..DYN..T3;BU66..DYN..(DM1,T2,T3,T4)..20T;BU60,61,68,78,88..DYN..(DM1,T2,T3,T4)..DSL199008-199109

sub69741-20020

sub69741-32010

main69741-20020-01iBU88..TD;BU66..275,30T;BU72,74,87,9#;BU60,66,88..(DM2,DM3,DM5,T1,TW1,TW2,TW4)..(CBU,IV3);BU67,70,73,83,84..(DM1,DM4,HRF,SRF,T2,T4,TW1)..(CBU,IV3)199109-199202

sub69741-20020

sub69741-32010

main69741-20020-01iBU88..TD;BU66..275,30T;BU72,74,87,9#;BU60,66,88..(DM2,DM3,DM5,T1,TW1,TW2,TW4)..(CBU,IV3);BU67,70,73,83,84..(DM1,DM4,HRF,SRF,T2,T4,TW1)..(CBU,IV3)199109-199202

sub69741-20020

sub69741-32010

main69741-20020-01iBU88..TD;BU66..275,30T;BU72,74,87,9#;BU60,66,88..(DM2,DM3,DM5,T1,TW1,TW2,TW4)..(CBU,IV3);BU67,70,73,83,84..(DM1,DM4,HRF,SRF,T2,T4,TW1)..(CBU,IV3)199109-199202

BLACK,TRIM1#

sub69741-20020

sub69741-32010

main69741-32010-01iBU96..4FC..TD;BU87..03S..(20T,30T);BU87,96..5F..(275,35T);BU66,67,72,73,74,78,88,91,94..TR..03S199202-199505

sub69741-32010

sub69741-90K00

main69741-32010-01iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL199202-199505

BLACK,TRIM1#

sub69741-32010

sub69741-90K00

main69741-32010-01iBU66..TR..20T;BU67,78,88..TR..03S..DSL199309-199311

sub69741-32010

sub69741-90K00

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iBU6#,7#,8#,9#198808-199505

main69749-20010iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iBU6#,7#,8#,9#198808-199505

main69759-20060iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL198808-199505

main69759-20070iBU6#,7#,8#,9#198808-199505

8420

9011906110

main90119-06110

9015960239

main90159-60239

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9018906018

main90189-06018

9165160612

main91651-60612

9351056020

main93510-56020

29 parts on this diagram · 2 diagrams in section
