Toyota DYNA/TOYOACE — FRAME

0001 1 0002 1 0003 1 0004 1��-� ��

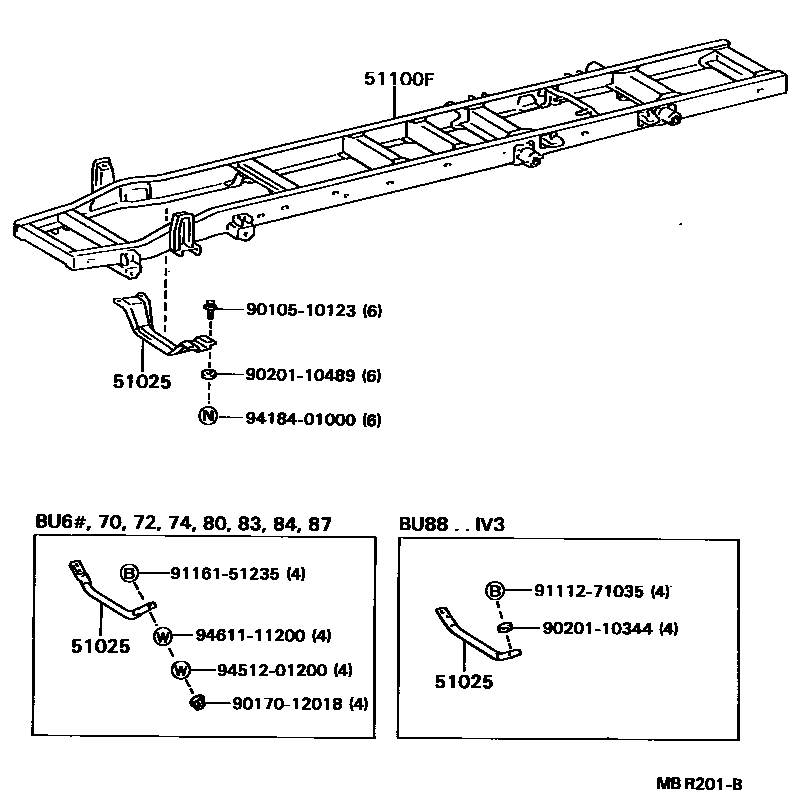

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-36030iBU78,85,88,9#198808-199505

main51025-36040iBU60,61,66,68,70,83,84,87..DSL198808-199505

main51025-36050iBU66..TR..5F..WT..20T..IV3198808-199505

main51244-36050iBU91..T3..TD..IV3;BU88..T3..5F..(20T,30T)..DSL..IV3198808-199505

main51244-36060iBU72,73,74198910-199505

51100FFRAME SUB-ASSY

main51001-37110iBU87..T3..5F..20T..CBU199109-199505

main51001-37120iBU88..T3..5F..20T..DSL..CBU199109-199505

main51001-37130iBU88..T3..30T..DSL..CBU199109-199505

main51002-3B270iBU60..T1198808-199505

main51002-3B280iBU60,61,66..T3..ST198808-199505

main51002-3B290iBU60..ST..175198808-199505

main51002-3B300iBU70198808-199505

main51002-3B310iBU60,61,66..T2198808-199505

main51002-3B320iBU60,61,66..T4198808-199505

main51002-3B330iBU60..TW2198808-199505

main51002-3B360iBU66..275,30T198808-199505

main51002-3B370iBU66..IV4198808-199505

main51002-3B380iBU60,66,68..(DM1,DM3,T3)..WT..20T198808-199505

main51002-3B390iBU60,66..TW4198808-199505

main51002-3B470iBU88..T2..5F198808-199001

sub51002-3B471

sub17573-58061

sub90119-08086

main51002-3B471iBU88..(T2,T4)..5F..20T199001-199505

main51002-3B480iBU88..T2..4FC198808-199001

sub51002-3B481

sub17573-58061

sub90119-08086

main51002-3B481iBU88..(T2,T4)..4FC..20T199001-199505

main51002-3B490iBU85,88..T3..5F..20T198808-199001

sub51002-3B491

sub17573-58061

sub90119-08086

main51002-3B491iBU88..T3..5F..20T199001-199505

main51002-3B500iBU88..T3..4FC198808-199001

sub51002-3B501

sub17573-58061

sub90119-08086

main51002-3B501iBU88..T3..4FC199001-199505

main51002-3B510iBU88..06S198808-199001

sub51002-3B511

sub17573-58061

sub90119-08086

main51002-3B511iBU88..06S199001-199505

main51002-3B520iBU88..T4..5F198808-199001

sub51002-3B521

sub17573-58061

sub90119-08086

main51002-3B521iBU88..T4..5F..30T199001-199505

main51002-3B530iBU85,88..T3..(275,30T)198808-199001

sub51002-3B531

sub17573-58061

sub90119-08086

main51002-3B531iBU88..T3..(275,30T)199001-199505

main51002-3B540iBU94..T3198808-199001

sub51002-3B541

sub17573-58061

sub90119-08086

main51002-3B541iBU94..T3199001-199505

main51002-3B550iBU90,91..T4198808-199001

sub51002-3B551

sub17573-58061

sub90119-08086

main51002-3B551iBU91..T4199001-199505

main51002-3B560iBU90,91..T3198808-199001

sub51002-3B561

sub17573-58061

sub90119-08086

main51002-3B561iBU91..T3199001-199505

main51002-3B570iBU95,96..5F198808-199001

sub51002-3B571

sub17573-58061

sub90119-08086

main51002-3B571iBU96..5F199001-199505

main51002-3B660iBU67..T3199008-199505

main51002-3B660iBU67..T3198808-199008

main51002-3B730iBU84,87..T2198808-199505

main51002-3B740iBU83,84,87..T4198808-199505

main51002-3B750iBU87..T3..20T..CBU198808-199505

main51002-3B760iBU87..06S..CBU198808-199505

main51002-3B770iBU87..5F..(275,30T)198808-199505

main51002-3B780iBU87..06S..IV3198808-199505

main51002-3B790iBU88..4FC..30T198808-199001

sub51002-3B791

sub17573-58061

sub90119-08086

main51002-3B791iBU88..4FC..30T199001-199505

main51002-3B810iBU88..T2..5F..IV3198808-199001

sub51002-3B811

sub17573-58061

sub90119-08086

main51002-3B811iBU88..(T2,T4)..5F..20T..IV3199001-199505

main51002-3B820iBU88..T3..5F..20T..DSL..IV3198808-199001

sub51002-3B821

sub17573-58061

sub90119-08086

main51002-3B821iBU88..T3..5F..20T..DSL..IV3199001-199505

main51002-3B830iBU88..T3..30T..DSL..IV3198808-199001

sub51002-3B831

sub17573-58061

sub90119-08086

main51002-3B831iBU88..30T..TD..IV3199001-199505

main51002-3B890iBU87..V;BU87..T3..20T..IV3198808-199505

main51003-3B020iBU95,96..5F..IV3198808-199001

sub51003-3B021

sub17573-58061

sub90119-08086

main51003-3B021iBU96..5F..IV3199001-199505

main51003-3B030iBU96..4FC198808-199001

sub51003-3B031

sub17573-58061

sub90119-08086

main51003-3B031iBU96..4FC199001-199505

main51003-3B050iBU67..T3198808-199008

main51003-3B080iBU87..4FC..275198808-199309

main51003-3B080iBU87..5F..275..IV3198811-199309

main51003-3B081iBU87..4FC..275199309-199505

main51003-3B120iBU72..T4198910-199505

main51003-3B130iBU72..T3198910-199210

main51003-3B150iBU73..IV4199005-199505

main51003-3B160iBU74198910-199505

main51003-3B170iBU78..20T198910-199001

sub51003-3B171

sub17573-58061

sub90119-08086

main51003-3B171iBU78..20T199001-199505

main51003-3B180iBU78..30T198910-199001

sub51003-3B181

sub17573-58061

sub90119-08086

main51003-3B181iBU78..30T199001-199505

main51003-3B190iBU94..T4198910-199001

sub51003-3B191

sub17573-58061

sub90119-08086

main51003-3B191iBU94..T4199001-199505

main51003-3B210iBU88..T4..5F..IV3198910-199001

sub51003-3B211

sub17573-58061

sub90119-08086

main51003-3B211iBU88..T4..5F..30T..IV3199001-199505

main51003-3B220iBU88..4FC..30T..IV3198910-199001

sub51003-3B221

sub17573-58061

sub90119-08086

main51003-3B221iBU88..4FC..30T..IV3199001-199505

main51003-3B230iBU91..T4..TD..IV3198910-199001

sub51003-3B231

sub17573-58061

sub90119-08086

main51003-3B231iBU91..T4..TD..IV3199001-199505

main51003-3B240iBU91..T3..TD..IV3198910-199001

sub51003-3B241

sub17573-58061

sub90119-08086

main51003-3B241iBU91..T3..TD..IV3199001-199505

main51003-3B250iBU96..TD..IV3198910-199001

sub51003-3B251

sub17573-58061

sub90119-08086

main51003-3B251iBU96..5F..TD..IV3199001-199505

main51003-3B360iBU72..T4..IV3199001-199505

main51003-3B370iBU74..20T..IV3199001-199505

main51003-3B430iBU73..06S..20T199109-199505

main51003-3B450iBU72..DM3199109-199505

main51003-3B680iBU66..30T..IV3199201-199505

main51003-3B700iBU73..03S199210-199505

main51003-3B740iBU74..30T199309-199505

main51003-3B760iBU87..06S..IV3199309-199505

main51003-3B770iBU87..5F..(275,30T)..IV3199309-199505

main51005-93100iBU66..DM2199210-199505

main51005-93101iBU66..DM5199210-199505

main51005-96305iBU67..DMP..5F198808-199008

main51005-96308iBU66..DM2198808-199210

main51005-96311iBU67..DMP..5F198809-199008

main51005-96311iBU67..DMP198808-199505

main51005-96314iBU66..DM5198910-199210

main51005-96315iBU72..DM4,DM5198910-199505

9010510123

main90105-10123

9017012018

main90170-12018

9020110344

main90201-10344

9020110489

main90201-10489

9111271035

main91112-71035

9116151235

main91161-51235

9418401000

main94184-01000

9451201200

main94512-01200

9461111200

main94611-11200

11 parts on this diagram · 4 diagrams in section
