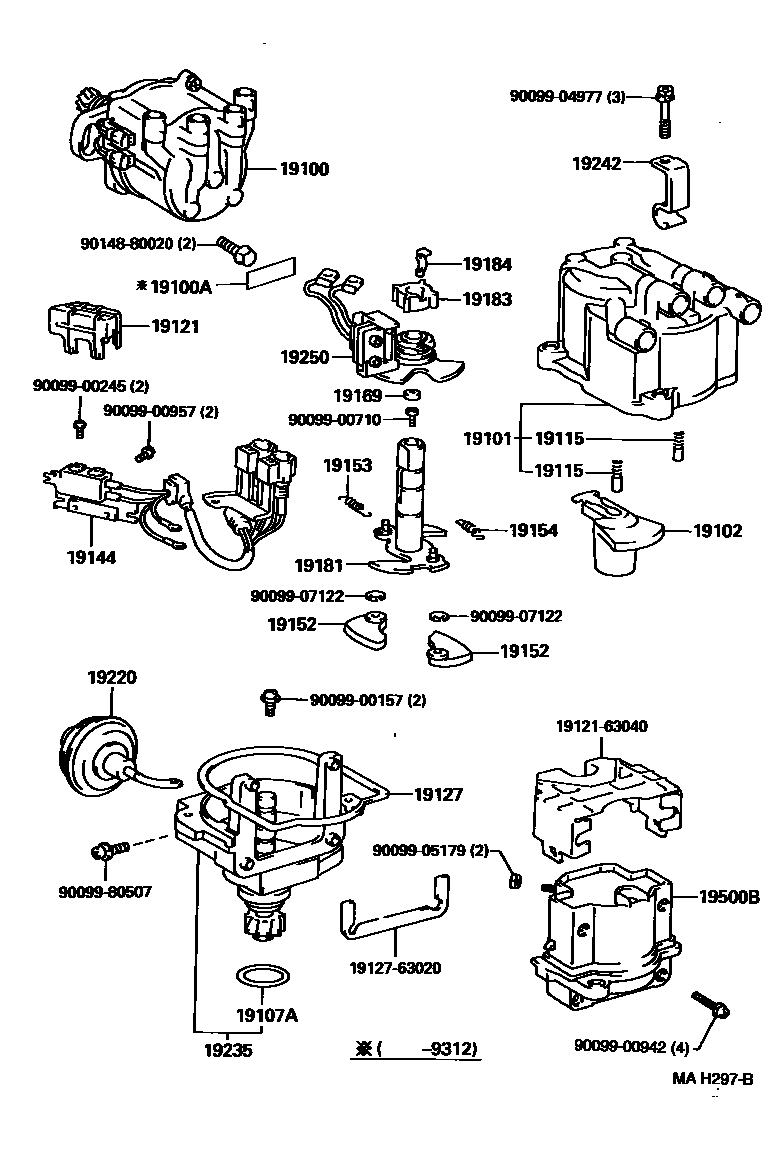

Toyota DYNA/TOYOACE — DISTRIBUTOR
19100DISTRIBUTOR ASSY
19100ATAPE, SEALING
sub90919-24003
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19121COVER, DUST PROOF
19127PACKING, DUST PROOF
19144LEAD, DISTRIBUTOR BREAKER
19152WEIGHT, GOVERNOR
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
19183ROTOR, SIGNAL
19184SPRING, ROTOR SET
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
19235HOUSING, DISTRIBUTOR
19242CLAMP, CORD
19250GENERATOR ASSY, SIGNAL
19500BCOIL ASSY, IGNITION
1912163040COVER, DUST PROOF
main19121-63040
1912763020PACKING, DUST PROOF
main19127-63020
9009900157
main90099-00157
9009900245
main90099-00245
9009900710
main90099-00710
9009900942
main90099-00942
9009900957
main90099-00957
9009904977
main90099-04977
9009905179
main90099-05179
9009907122
main90099-07122
9009980507
main90099-80507
9014880020
main90148-80020
33 parts on this diagram · 1 diagram in section
