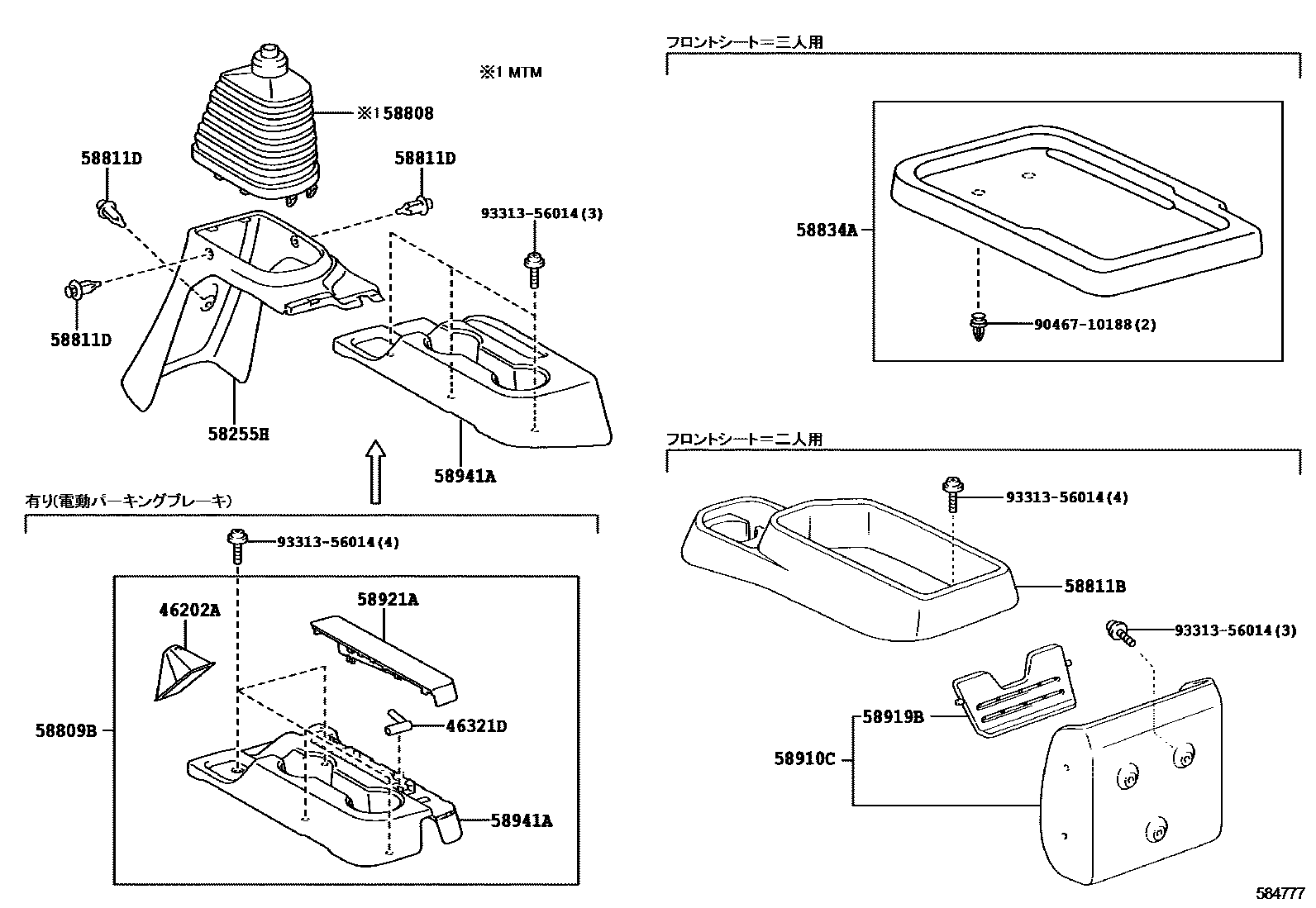

Toyota DYNA/TOYOACE — CONSOLE BOX & BRACKET
46202ABOOT SUB-ASSY, PARKING BRAKE LEVER
main46202-37010-C0iXZC710,XZU700,710,720..SCB..6FC..DCRWD; XZU700,71#,72#,73#..DCVUO; XZU702,712,722..SCB;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720,73#..SCB..6F..(CBU,IV3); XZU775201905-202103
46321DLEVER, PARKING BRAKE, CENTER
main46321-37030iXZC710,XZU700,710,720..SCB..6FC..DCRWD; XZU700,71#,72#,73#..DCVUO; XZU702,712,722..SCB;XZU700,710,720..6FC..DCVTO;XZC710,XZU700,710,720,73#..SCB..6F..(CBU,IV3); XZU775201905-202103
58255HCOVER, SHIFT LEVER BOOT
GRAY,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM1#
58809BCOVER SUB-ASSY, PARKING BRAKE HOLE
GRAY,TRIM1#
58811BBOX, CONSOLE
58811DCLIP(FOR CONSOLE BOX)
BLACK,TRIM1#
58834ACOVER, CONSOLE, LOWER
GRAY,TRIM1#
58910CBOX ASSY, CONSOLE, REAR
58919BPLATE, CONSOLE BOX
main58919-37030-B2×2iXZU710..SCB..(T3,T4);XZU710..SCB..T5..(DCRTJ,DCRTK);XZU700,710..(DM7,T5)..DCRTL..IV3;XZC710,XZU700,720,730,775..T3,T4,T5201107-201705
58921APANEL, REAR CONSOLE, UPPER
GRAY,TRIM1#
58941ACOVER, PARKING BRAKE HOLE
GRAY,TRIM1#
GRAY,TRIM1#
9046710188
main90467-10188
9331356014
main93313-56014
14 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota DYNA/TOYOACE
This section contains 25 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota DYNA/TOYOACE. Key components include: BOOT SUB-ASSY, PARKING BRAKE LEVER, LEVER, PARKING BRAKE, CENTER, BRACKET, CONSOLE MOUNTING, RH, BRACKET, CONSOLE MOUNTING, LH, COVER, SHIFT LEVER BOOT.
