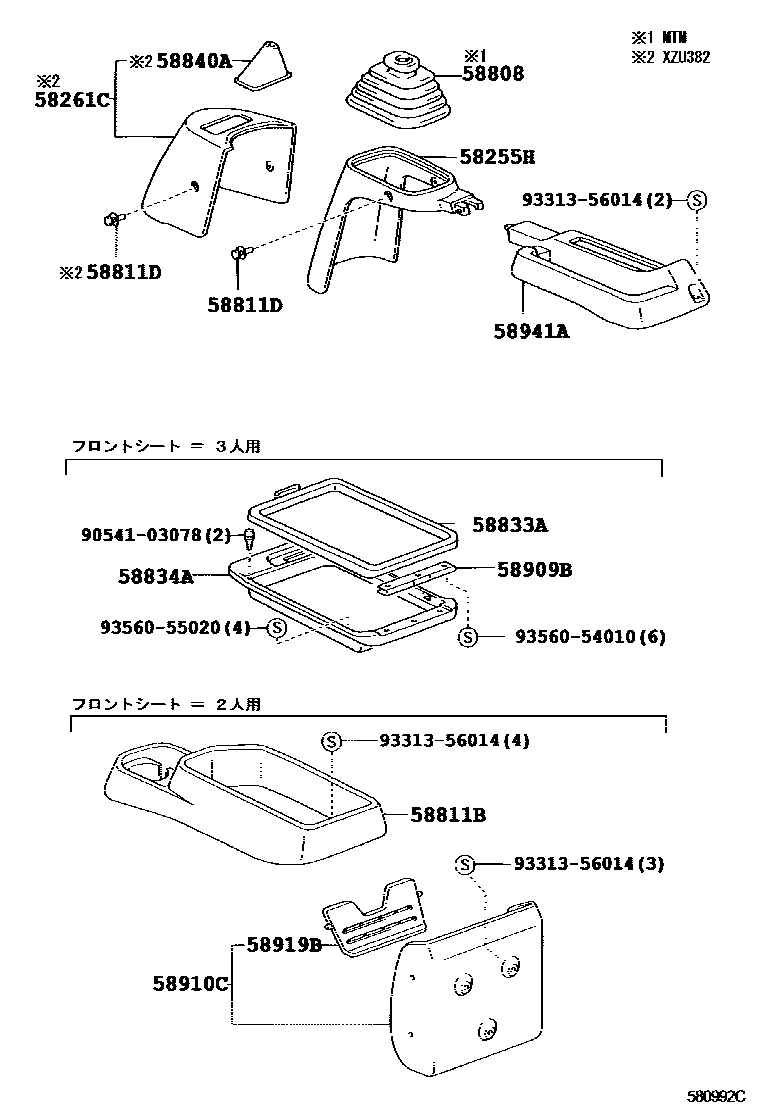

Toyota DYNA/TOYOACE — CONSOLE BOX & BRACKET
58255HCOVER, SHIFT LEVER BOOT
main58255-37020-B0iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
DK.CHARCOAL,TRIM1#
DK.CHARCOAL,TRIM1#
DK.CHARCOAL,TRIM1#
58261CCOVER, TRANSMISSION
DK.CHARCOAL,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-37020-B0iXZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL199905-200406
DK.CHARCOAL,TRIM1#
DK.CHARCOAL,TRIM1#
58811BBOX, CONSOLE
main58811-37040-B0iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..SCB..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
MD.CHARCOAL,TRIM1#
main58811-37041-B0iXZU404..40T..IV3;XZU404,414,424,434,454,488..SCB..(T2,T3,T4,T5)..(DCRTJ,DCRTK,DCRTL,DCRUE)200910-201106
MD.CHARCOAL,TRIM1#
DK.CHARCOAL,TRIM1#
58811DCLIP(FOR CONSOLE BOX)
main90467-07191-B0×3iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
DK.CHARCOAL,TRIM1#
58833ACOVER, CONSOLE, UPPER
MD.CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
58834ACOVER, CONSOLE, LOWER
MD.CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
58840ACOVER ASSY, SHIFTING HOLE
DK.CHARCOAL,TRIM1#
58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT
main58909-37020iXZU421..(T3,T5)..4FC;BU420,XZU411..(30T,40T)..(DSLL,TDEFI);BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
58910CBOX ASSY, CONSOLE, REAR
MD.CHARCOAL,TRIM1#
58919BPLATE, CONSOLE BOX
MD.CHARCOAL,TRIM1#
58941ACOVER, PARKING BRAKE HOLE
main58941-37030-B0iBU420..40T;XZU421..(T3,T5)..4FC;BU400,XZU411,412,421,430..MTM..(20T,40TOV)..(DSL,DSLL,TDEFI)199905-200206
DK.CHARCOAL,TRIM1#
DK.CHARCOAL,TRIM1#
9054103078
main90541-03078
9331356014
main93313-56014
9356054010
main93560-54010
9356055020
main93560-55020
16 parts on this diagram · 3 diagrams in section
CONSOLE BOX & BRACKET for Toyota DYNA/TOYOACE
This section contains 30 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota DYNA/TOYOACE. Key components include: BRACKET, CONSOLE MOUNTING, RH, BRACKET, CONSOLE MOUNTING, LH, REGISTER ASSY, INSTRUMENT PANEL, CENTER, COVER, SHIFT LEVER BOOT, COVER, TRANSMISSION.
