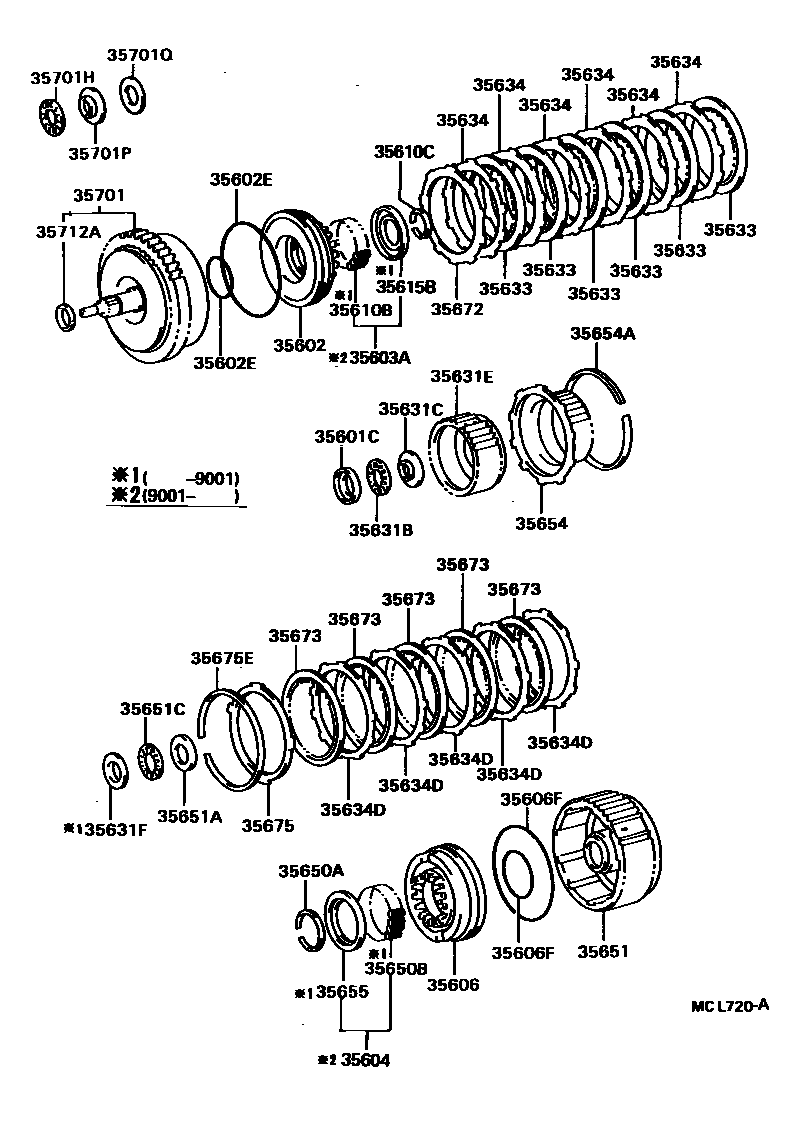

Toyota DYNA/TOYOACE — BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601CRACE, THRUST BEARING (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35602ERING, O (FOR FRONT CLUTCH PISTON)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606PISTON SUB-ASSY, REAR CLUTCH
35606FRING, O (FOR REAR CLUTCH PISTON)
35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35615BSEAT, FRONT CLUTCH PISTON RETURN SPRING
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631EHUB, FRONT CLUTCH
35631FRACE, THRUST BEARING(FOR REAR CLUTCH DRUM)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
sub35633-36040
35634PLATE, FRONT CLUTCH
35634DPLATE, REAR CLUTCH
35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
35651DRUM, REAR CLUTCH
35651ARACE, THRUST BEARING (FOR REAR CLUTCH DRUM)
35651CBEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM)
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35655SEAT, REAR CLUTCH PISTON RETURN SPRING
35672PLATE, CLUTCH CUSHION
35673DISC, REAR CLUTCH
sub35633-36040
35675ERING, HOLE SNAP (FOR REAR CLUTCH FLANGE)
35701SHAFT SUB-ASSY, INPUT
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
35701PRACE, THRUST BEARING (FOR INPUT SHAFT)
35701QRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35712ARING, INPUT SHAFT OIL SEAL
34 parts on this diagram · 1 diagram in section
