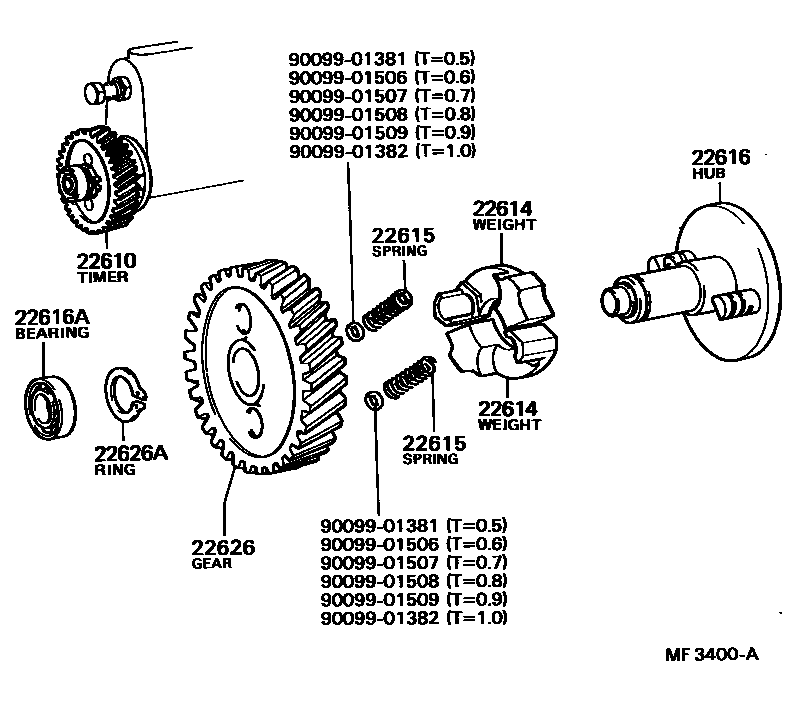

Toyota DYNA/TOYOACE — AUTOMATIC TIMER
22610TIMER ASSY, AUTOMATIC
22614WEIGHT, TIMER
22615SPRING, TIMER
22616HUB, TIMER
22616ABEARING(FOR TIMER HUB)
22626GEAR, DRIVE
22626ARING, CLAMP(FOR DRIVE GEAR)
9009901381
main90099-01381
9009901382
main90099-01382
9009901506
main90099-01506
9009901507
main90099-01507
9009901508
main90099-01508
9009901509
main90099-01509
13 parts on this diagram · 1 diagram in section
AUTOMATIC TIMER for Toyota DYNA/TOYOACE
This section contains 13 genuine Toyota parts for the AUTOMATIC TIMER system of the Toyota DYNA/TOYOACE. Key components include: TIMER ASSY, AUTOMATIC, WEIGHT, TIMER, SPRING, TIMER, HUB, TIMER, BEARING(FOR TIMER HUB).
